Frameless Wide-Angle LED Wall Washer Light – WB6025L Series
Clean lines and powerful performance come together in our frameless wide-angle LED wall washer. Designed for architects, lighting designers, and contractors who need reliable, uniform wall illumination without bulky frames or visible fixtures, the WB6025L series creates dramatic yet natural light effects on building facades, columns, bridges, and landscape features.
Whether you're highlighting modern commercial buildings, illuminating hotel entrances, or adding depth to retail exteriors, this linear wall washer blends into the architecture while delivering consistent, high-quality light.
Product Construction & Build Quality

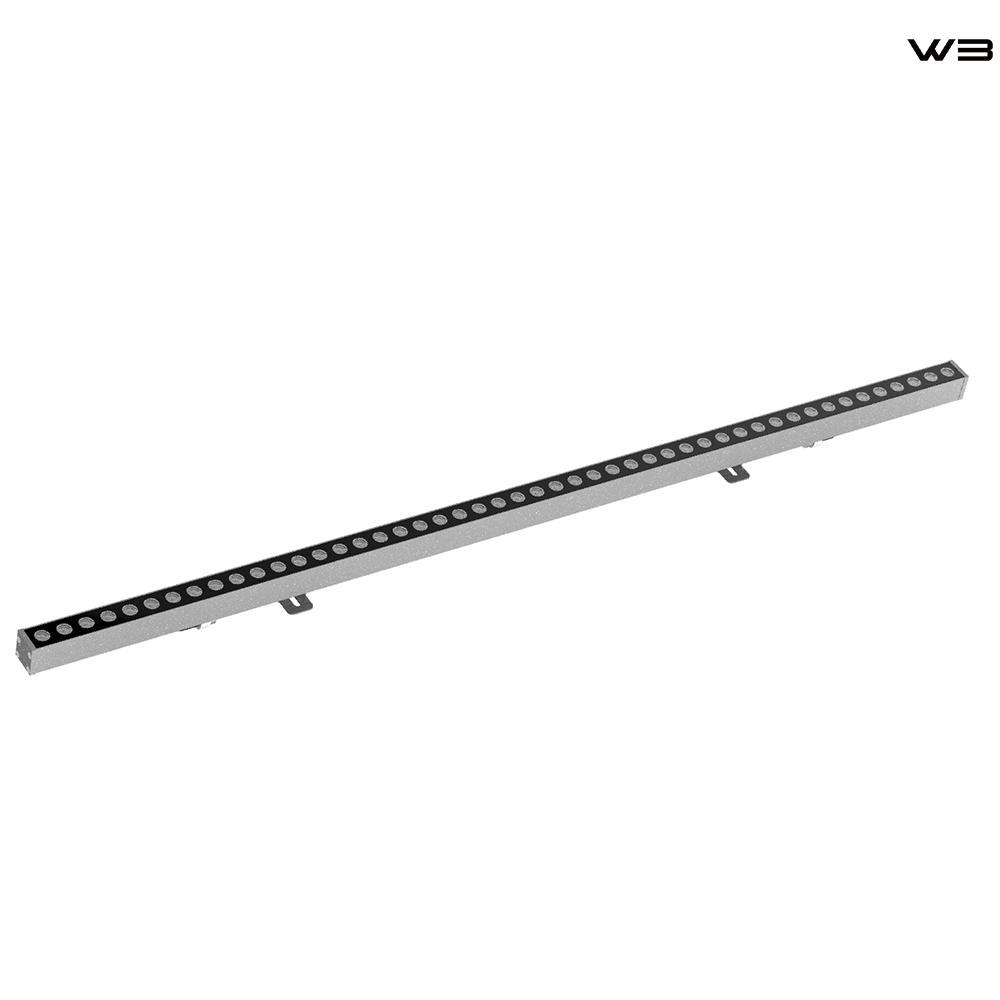

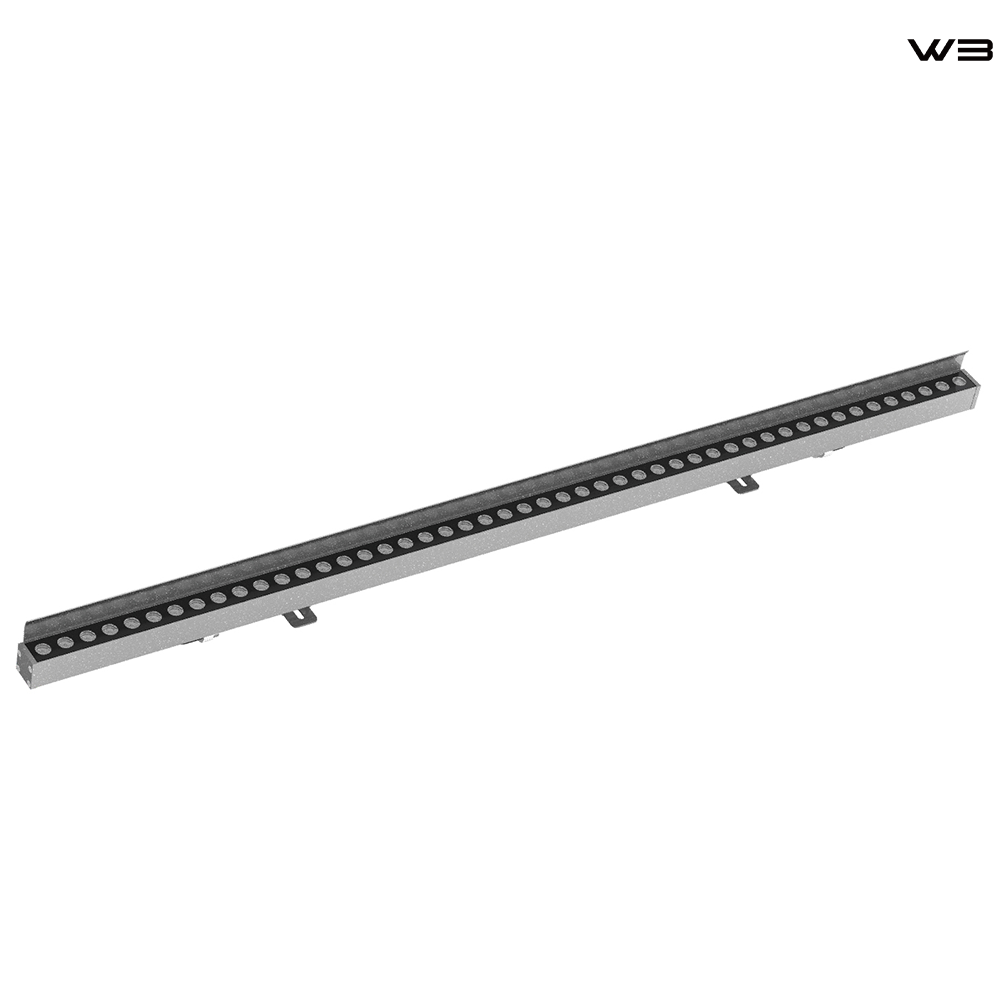

The WB6025L features a sleek aluminum alloy body with a tempered glass cover and no visible front frame for a minimalist appearance. High-grade LEDs are arranged in a linear array behind a specialized wide-angle diffuser that softens the beam and eliminates multiple shadow lines. The housing is powder-coated for corrosion resistance, with robust end caps and sealed cable glands to handle harsh outdoor conditions year-round.

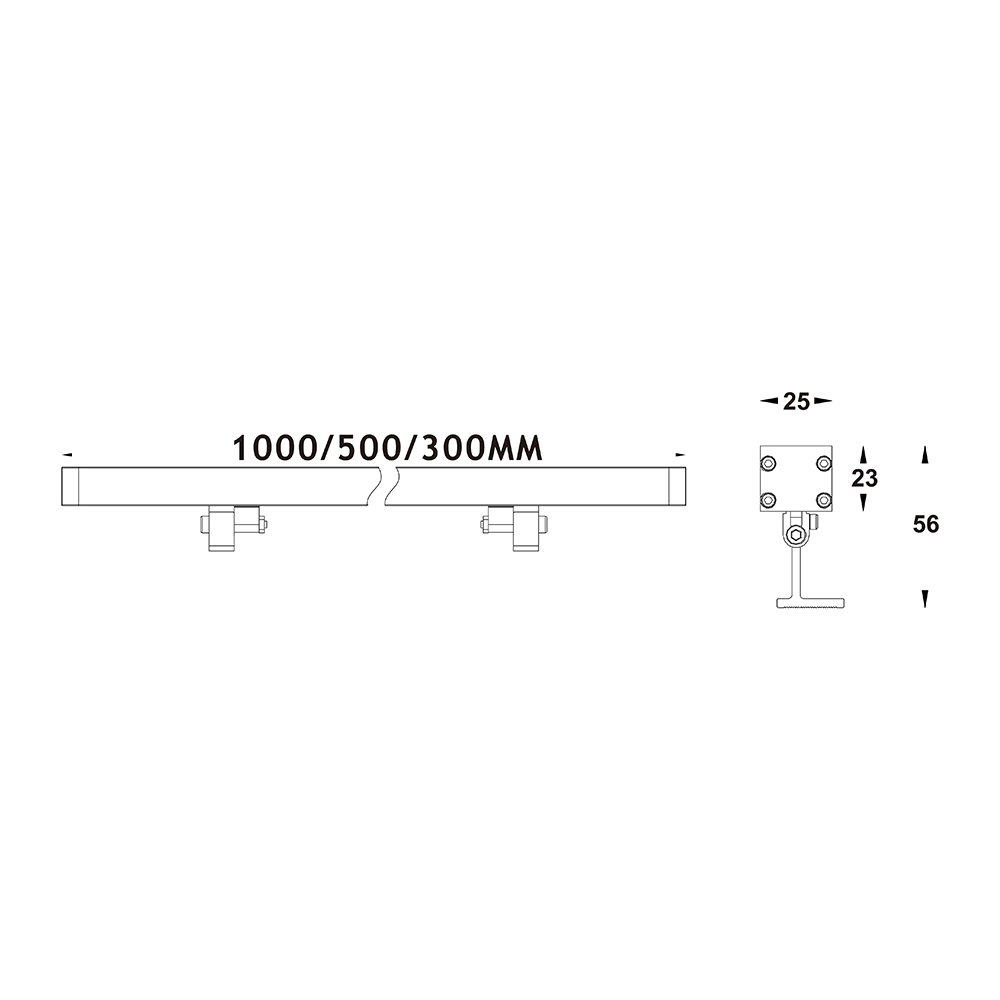

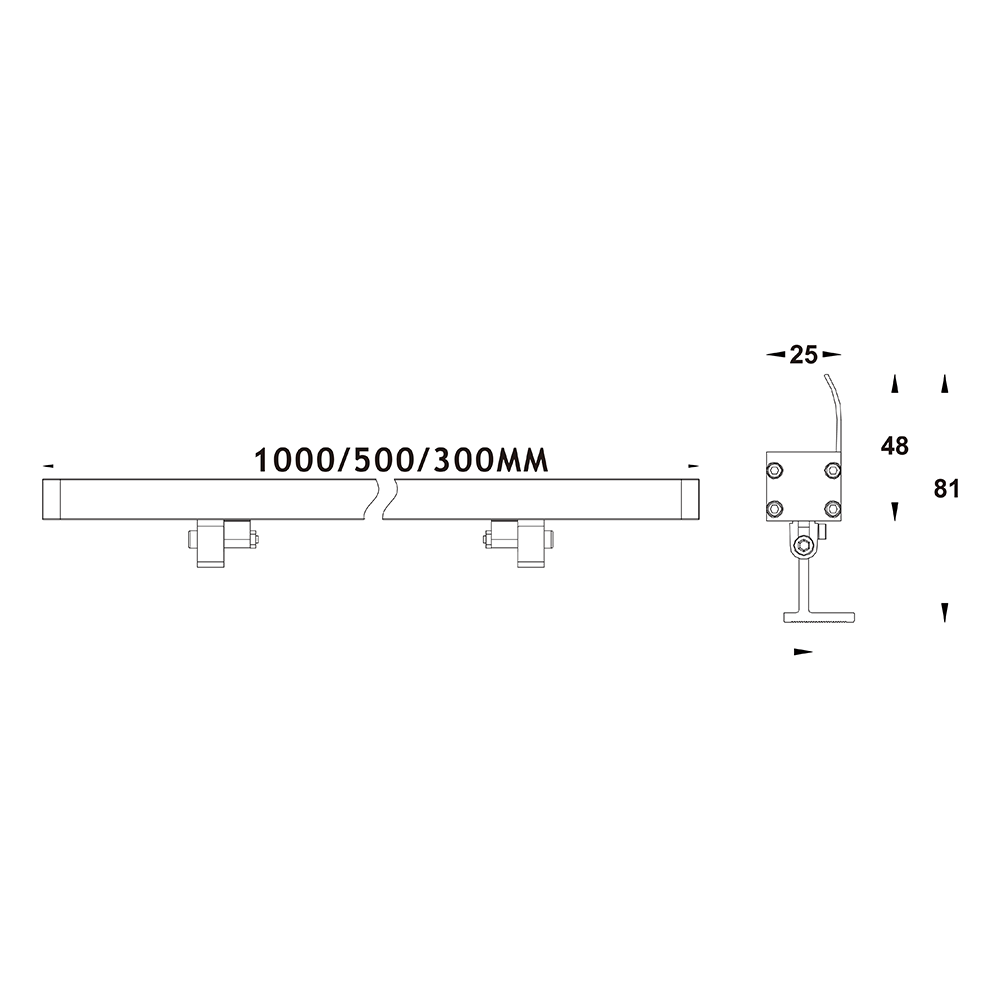

Mounting is straightforward with adjustable brackets that allow precise aiming. Available in 300mm, 500mm, and 1000mm lengths, these lights can be linked end-to-end for continuous runs of any desired length.
Technical Specifications Table
Model Series | WB6025L |
LED Type | High-power SMD LEDs |
Available Lengths | 300mm, 500mm, 1000mm |
Power Consumption | 9W–36W depending on length & config |
Input Voltage | 24VDC or 220-240VAC |
Beam Angles | 15°, 30°, 45°, 60°+ wide diffused |
Color Temperature | 3000K, 4000K, 5000K, 6500K, RGB |
Luminous Flux | Up to 110+ lm/W |
CRI | ≥80 |
Housing Material | Die-cast aluminum + tempered glass |
Protection Rating | IP65 / IP66 |
Working Temp. | -40°C to +50°C |
Lifespan | 50,000+ hours |
Warranty | 3 years |
Key Features & Advantages
Wide, uniform wash: The diffused optic spreads light evenly across surfaces, reducing hotspots and color banding common in lesser wall washers.
Multiple configurations: Choose from different wattages, color temperatures (warm white to daylight), beam angles, and even DMX/RGB variants for dynamic effects.
Durable outdoor design: IP65/IP66 weatherproof rating, IK08 impact resistance, and wide operating temperature range.
Easy installation & maintenance: Pre-wired with reliable connectors, low-voltage options for safer installs, and modular design for quick repairs.
Energy efficient: High lumen output per watt with excellent color rendering (CRI >80).
Seamless integration: Frameless design disappears into architecture during the day while performing at night.
Typical Applications
Building facade lighting
Column and pillar accent lighting
Bridge and underpass illumination
Hotel and resort landscape features
Retail storefronts and signage washing
Public art and monument highlighting
Parking structure and perimeter lighting
Installation & Usage Guidelines
Plan your layout carefully – maintain consistent spacing and aiming angles for uniform results.
Use the included mounting brackets or optional tripods for temporary setups.
For low-voltage (24VDC) models, ensure proper driver placement and cable sizing.
Always follow local electrical codes and have qualified technicians handle installation.
Regular cleaning with mild soap and water keeps the glass surface clear and performance optimal. Avoid abrasive cleaners.
Full wiring diagrams and step-by-step instructions are provided in the product manual.
Frequently Asked Questions
Can these lights be connected in long continuous runs?
Yes. The WB6025L series is designed for daisy-chaining. Multiple units can be linked end-to-end with proper power and control considerations. We recommend consulting our technical team for runs longer than 10 meters.
What is the difference between the various beam angles?
Narrower angles (15°–30°) provide more focused grazing effects for dramatic texture highlighting, while wider angles (45°–60°) deliver broader, even washes ideal for flat wall surfaces.
Are custom lengths or colors available for larger projects?
Yes. We support OEM/ODM customization including specific lengths, colors, and control protocols (DMX512, DALI, etc.) for qualified trade partners and projects.
How do I choose between 24VDC and 220VAC versions?
24VDC models offer safer installation and easier dimming/control, while 220VAC versions simplify wiring for longer runs with fewer drivers. Our team can help match the best option to your project requirements.
What support do you provide for large commercial projects?
We offer photometric files (IES/LDT), detailed installation guidance, sample units for testing, and full technical support from our engineering team. Project-specific warranties and volume pricing are also available.
Ready to light up your next project? Contact our sales team for datasheets, pricing, or to request samples.
