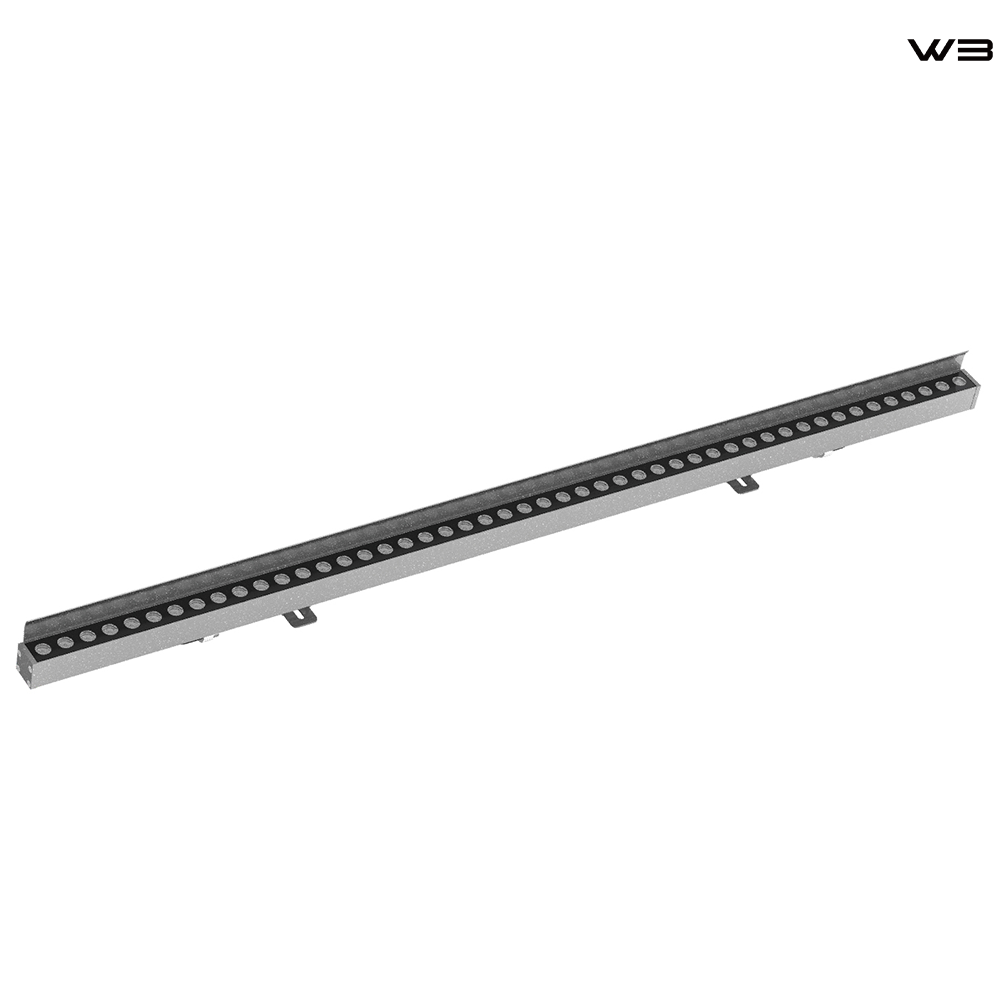

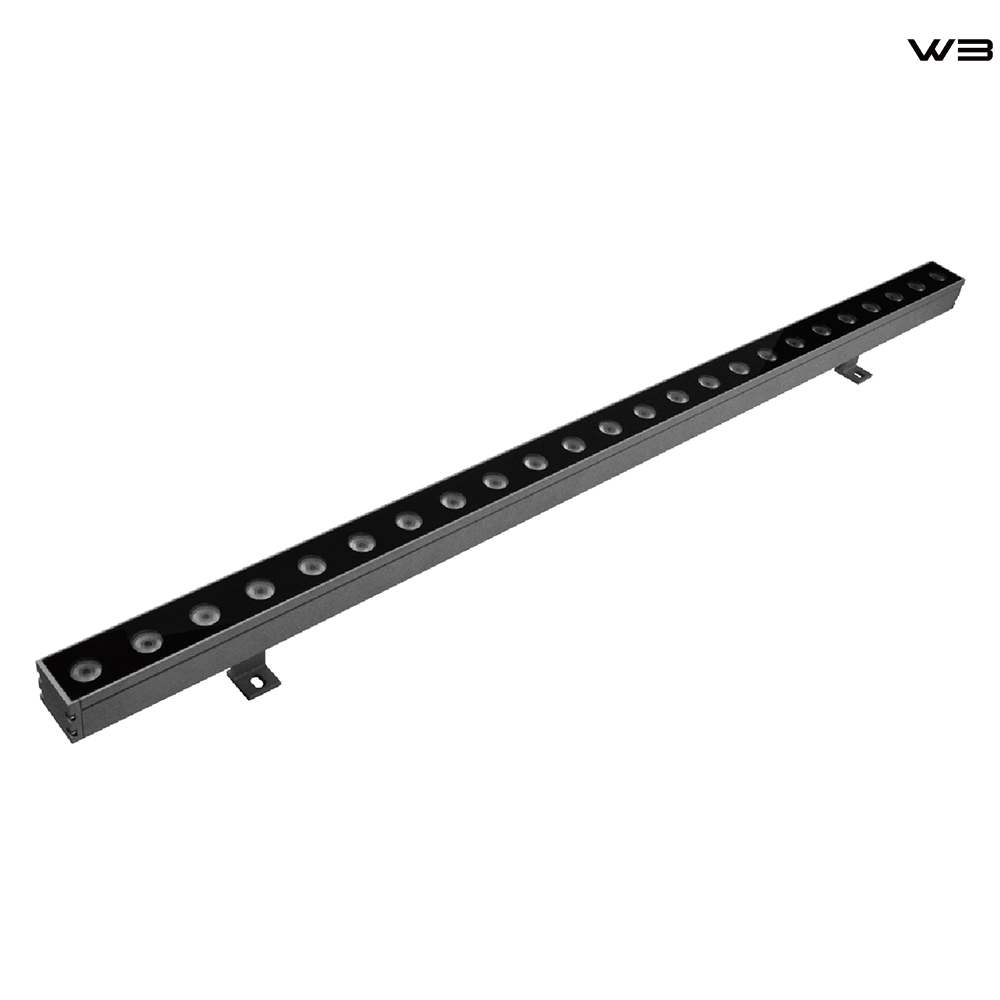

Extra-Long Impact-Resistant LED Wall Washer Light – WB6042L Series

When you need reliable performance on larger surfaces, the WB6042L series stands out. These extra-long frameless LED wall washers are engineered for tough outdoor environments while providing clean, professional-grade illumination that highlights architectural details without drawing attention to the fixtures themselves.

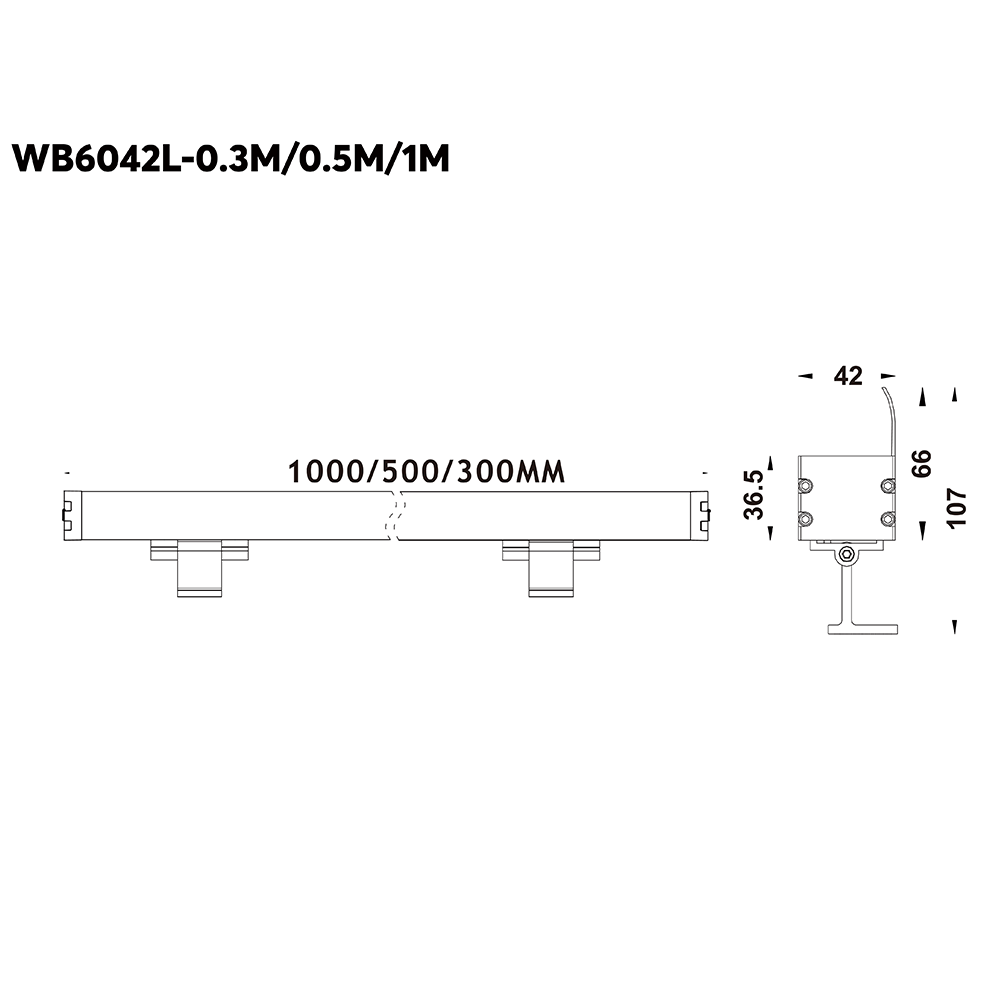

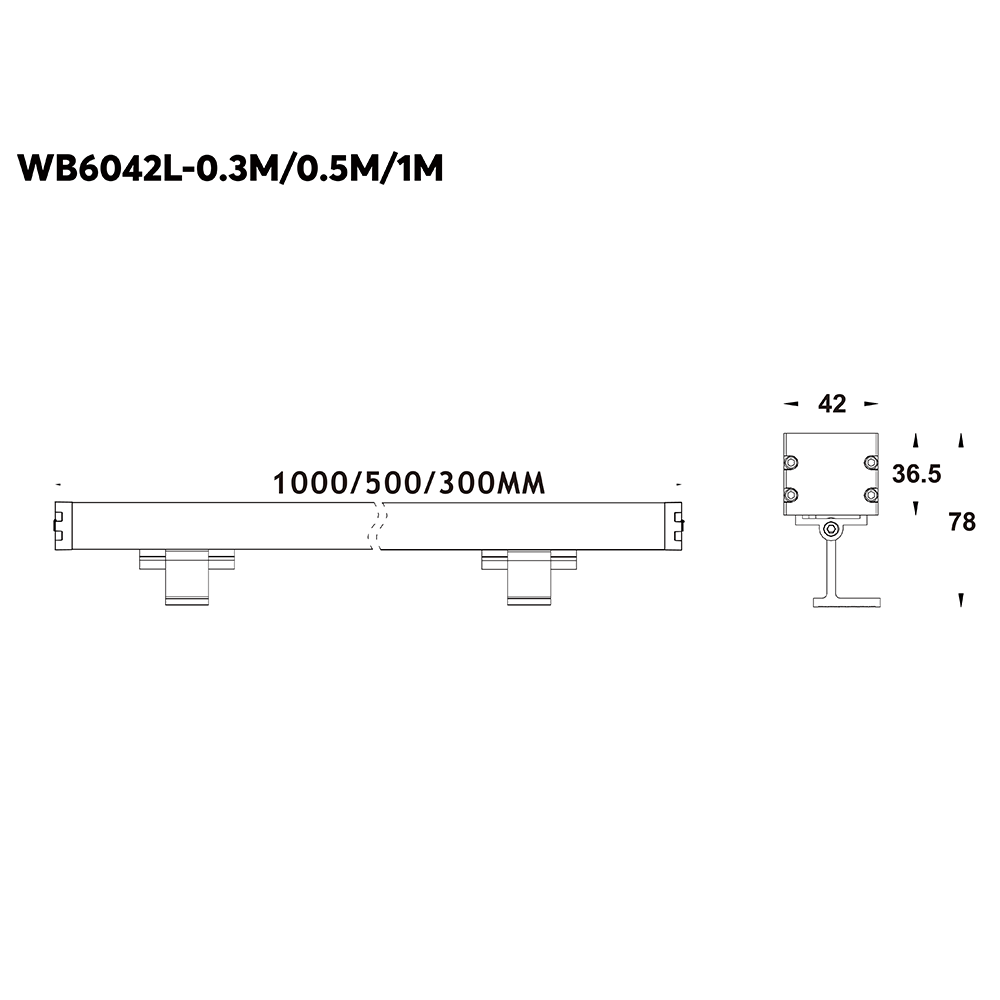

Available in 300mm, 500mm, and 1000mm lengths, they’re perfect for creating continuous light lines along building facades, bridges, or landscape features.

Product Construction & Build Quality

The WB6042L uses a sturdy die-cast aluminum housing with a tempered glass front and no visible frame for a sleek, modern look. Inside, carefully arranged high-power LEDs work with asymmetric optics (around 27°) to direct light precisely where it’s needed—typically grazing walls from below or above for dramatic yet even coverage. The sealed design resists water, dust, and physical impacts, making these lights suitable for high-traffic public areas.

Technical Specifications Table

Key Features & Advantages

• Impact-resistant build: Higher IK rating helps it stand up to accidental knocks or vandalism better than standard wall washers.

• Asymmetric wide wash: The specialized beam spreads light evenly across vertical surfaces, minimizing dark spots even at distance.

• Flexible configurations: Multiple wattage, color temperature, and control options (including DMX) let you match the light exactly to the project.

• Long-run capability: Easy end-to-end connection supports extended installations without complicated wiring.

• Low maintenance: Sealed construction and quality components reduce the need for frequent servicing.

• Good efficiency: Solid lumen output with decent color rendering for natural-looking results.

Typical Applications

• Large building facades and curtain walls

• Bridge and tunnel lighting

• Stadium and arena perimeter lighting

• Hotel and resort architectural features

• Public plaza and monument illumination

• Commercial signage washing

• Industrial facility exteriors

Installation & Usage Guidelines

1. Mark and drill mounting points carefully according to the provided template.

2. Secure the fixture using the adjustable brackets and ensure proper alignment for even lighting.

3. Connect power and control cables using the supplied waterproof connectors.

4. For long runs, calculate voltage drop and use appropriate drivers or power supplies.

5. Periodically check seals and clean the glass surface with mild detergent to maintain output.

6. Always use qualified electricians and follow local regulations.

Frequently Asked Questions

How does the asymmetric beam help with wall washing?

The 27° asymmetric distribution throws light forward and upward/downward more effectively, creating smoother coverage on vertical surfaces compared to symmetric beams, especially on tall walls.

Are these suitable for high-vandalism areas?

Yes. The reinforced construction and higher impact rating make the WB6042L a good choice for public spaces, though we still recommend mounting at appropriate heights.

Can I mix different lengths in one installation?

Absolutely. The modular design allows combining 300mm, 500mm, and 1000mm units to achieve custom total lengths.

What control options are available for large projects?

We support DMX512, DALI, and simple on/off or 0-10V dimming depending on the configuration. Let us know your requirements for the right setup.

Do you offer project support like lighting calculations or samples?

Yes. For trade customers and specifiers, we provide IES files, mock-up samples, technical consultations, and competitive project pricing. Our team can help with layout recommendations too.
