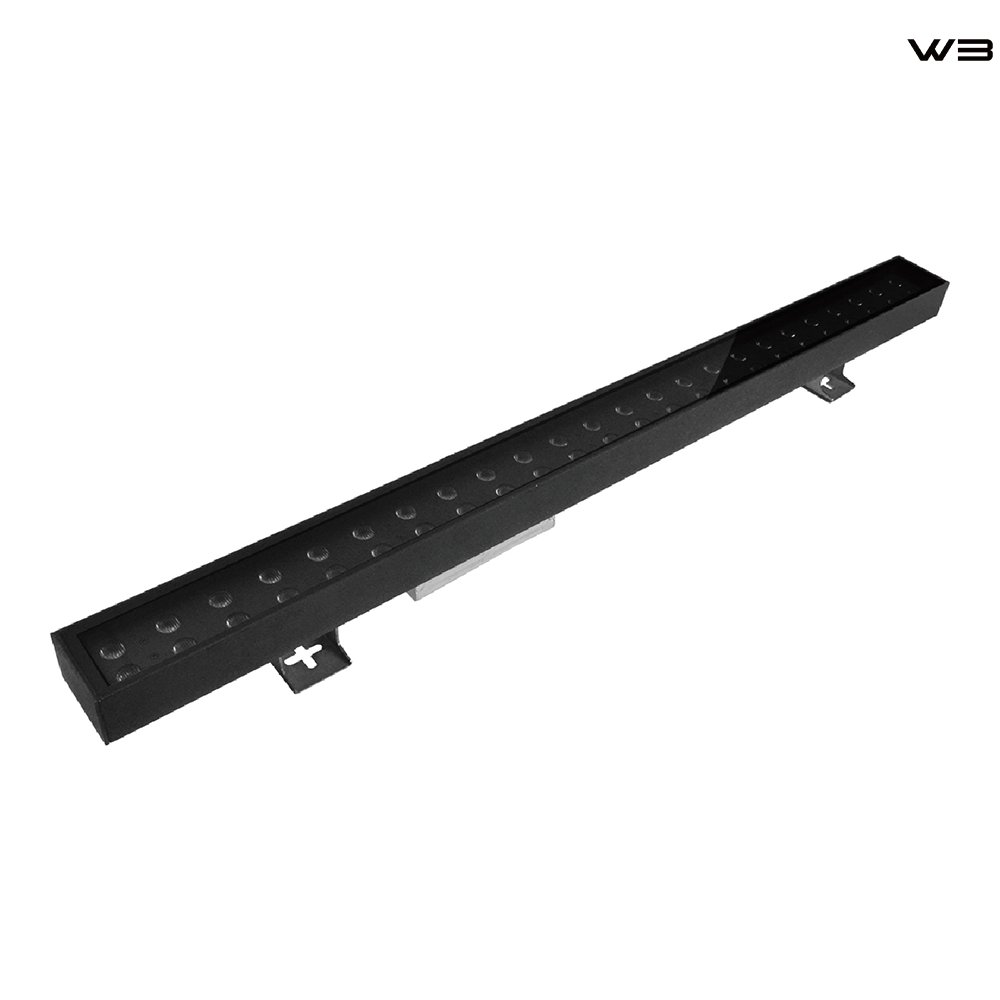

1800-6500K Dual-Row Asymmetric LED Wall Washer Light WB6072L
This 1800-6500K dual-row asymmetric LED wall washer (model WB6072L) brings reliable, high-performance lighting to any outdoor project. Measuring one meter long with 72W output, it uses two rows of high-quality LEDs paired with precision asymmetric lenses to push light cleanly onto vertical surfaces while keeping glare and spill under control. Whether you're lighting a modern building facade, a historic wall, or a large landscape feature, the WB6072L gives you smooth, even illumination with excellent color consistency.
Product Features & Construction
The WB6072L features a solid 6063 aluminum alloy body with a tough powder-coated finish that stands up to harsh weather. The front cover uses tempered glass for maximum light transmission and impact resistance. Inside, dual rows of SMD LEDs are mounted on an efficient heat sink that keeps operating temperatures low for longer lifespan. The asymmetric optics are carefully engineered to direct light forward and upward, making it ideal for grazing or washing effects from close mounting distances.
Key Attributes Include:
Tunable white technology (1800K warm to 6500K cool) for flexible scene setting
High CRI for natural color rendering
Multiple mounting options including surface brackets and optional tripod stands
DMX512 compatible for professional control systems
Pre-wired with waterproof connectors for fast installation
Technical Specifications
Parameter | Details |
Model | WB6072L |
Power | 72W |
LED Type | High-brightness SMD |
Color Temperature | 1800K - 6500K Tunable White |
Beam Angle | Asymmetric (various options available) |
Luminous Flux | Approx. 7200-8500lm (depending on CCT) |
Input Voltage | 24V DC or 220-240V AC |
IP Rating | IP66 |
Housing Material | 6063 Aluminum + Tempered Glass |

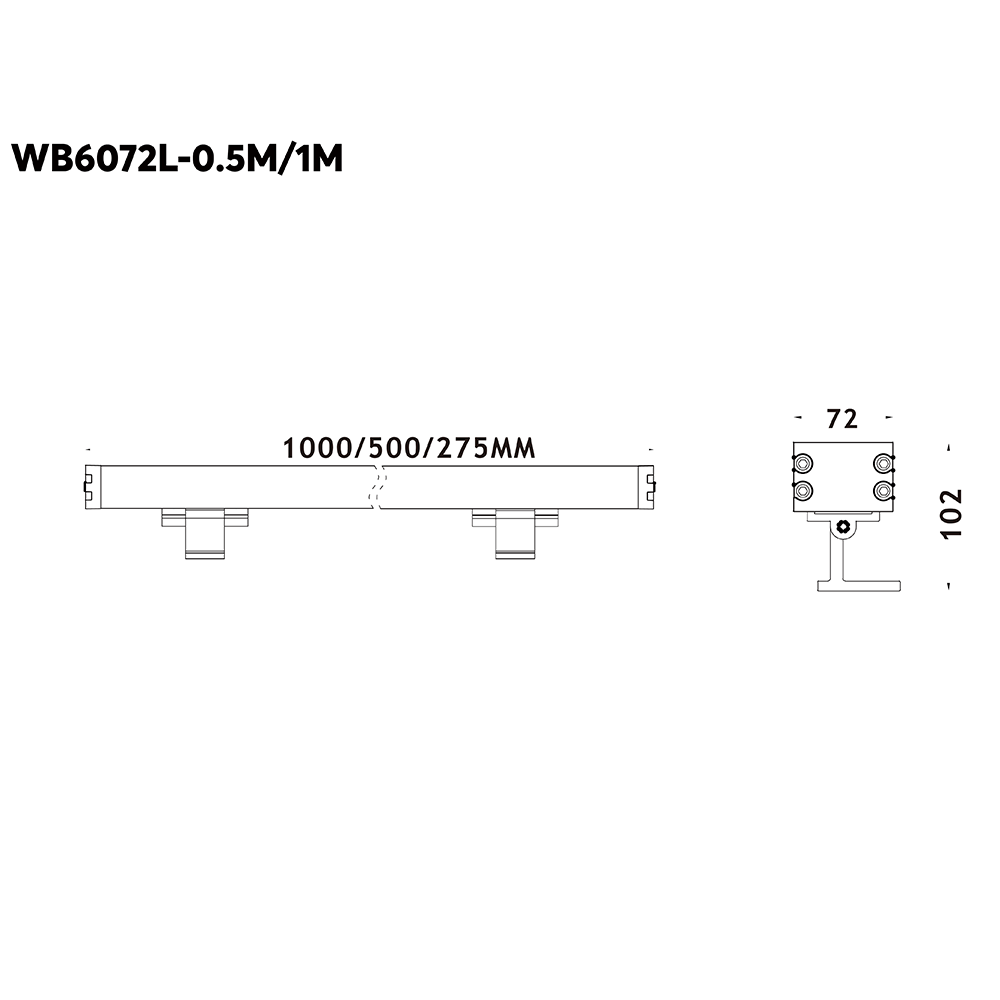

Dimensions | 1000 x 72 x 102 mm |
Warranty | 3 Years |
Certifications | CE, RoHS |
Application Scenarios & Project Examples
This wall washer works great for:
Building facades and curtain walls
Bridges and tunnels
Hotels, resorts, and commercial plazas
Retail storefronts and signage
Parks and monument lighting
Recent installations include modern office towers where the tunable white helps create dramatic day-to-night transitions, and heritage buildings where the asymmetric optics highlight textures without washing out details.
Usage Guidelines & Installation
Installation is straightforward following the included instructions. Mount the fixture using the provided brackets, ensure proper drainage, and connect using the waterproof cables. For best results, maintain the recommended distance from the wall surface and angle the fixture slightly upward. Always use a qualified electrician for 220V AC versions. Regular cleaning with mild soap and water keeps the glass clear and performance consistent.
Frequently Asked Questions
1. Can this light be used with existing DMX systems?
Yes. The WB6072L supports standard DMX512 control. We recommend using a compatible DMX controller and power supply for smooth dimming and color temperature changes across multiple units.
2. What is the maximum number of fixtures that can be connected in series?
It depends on the voltage version. For 24V DC models, consult the connection diagram — typically up to 8-10 units per circuit depending on cable length and load. Our technical team can provide exact calculations for your project.
3. How weatherproof is this product really?
It carries an IP66 rating, meaning it is dust-tight and protected against strong water jets. Many units have been running reliably in coastal and high-rainfall areas for years.
4. Do you offer custom lengths or special color temperatures?
Yes. We can customize lengths and offer specific CCT ranges or single-color versions for larger projects. Minimum order quantities apply — contact our sales team for details.
5. What kind of support do you provide for large projects?
We offer photometric files (IES/LDT), detailed installation guidance, mock-up samples, and on-site technical support when needed. Our team works closely with lighting designers and contractors from specification through commissioning.
