195mm / 328mm Stainless Steel LED Linear Recessed Underwater Pool Light
This sleek linear inground light is designed for architects, pool builders, and landscape professionals who need consistent, high-quality underwater lighting without the complexity of moving parts. The WB5063L2 series features a low-profile recessed design that sits flush with deck or pool surfaces, creating beautiful lines of light that highlight water movement and architectural details.
Product Construction
The housing is made from high-grade 316 stainless steel for excellent corrosion resistance in saltwater and chlorinated environments. The front cover uses thick tempered glass with a robust silicone seal, ensuring long-term waterproof performance. Internal LED boards are securely mounted with efficient heat dissipation channels built into the body. Pre-wired with quality cable glands, the light comes ready for straightforward installation into standard recesses.
Technical Specifications
Model | Length | Power | LED Type | Luminous Flux (approx.) | Input Voltage | Cable Length |
WB5063L2-0.195M | 195mm | 24W | RGB 3-in-1 | ~1050lm | 24VDC | 5m |
WB5063L2-0.195M | 195mm | 36W | RGBW 4-in-1 | ~1400lm | 24VDC | 5m |
WB5063L2-0.328M | 328mm | 36W | RGB 3-in-1 | ~1580lm | 24VDC | 5m |
WB5063L2-0.328M | 328mm | 54W | RGBW 4-in-1 | ~2100lm | 24VDC | 5m |
Additional Notes: Beam angle typically 10°–45° depending on configuration. Custom cable lengths and other CCT options available on request. Always follow local electrical codes and manufacturer installation guidelines.
Key Features & Advantages
Durability: Fully IP68 rated and built to withstand constant submersion and harsh outdoor conditions.
Visual Performance: Multiple high-output LEDs deliver even linear lighting with good color consistency across RGB and RGBW versions.
Easy Integration: 24VDC operation works with common low-voltage transformers and controllers. Supports DMX for advanced color control.
Clean Aesthetics: Ultra-slim profile (only 75mm height) and minimalist design blend seamlessly into modern pool decks and water features.
Low Maintenance: No bulbs to replace — just reliable LED performance with proper installation.

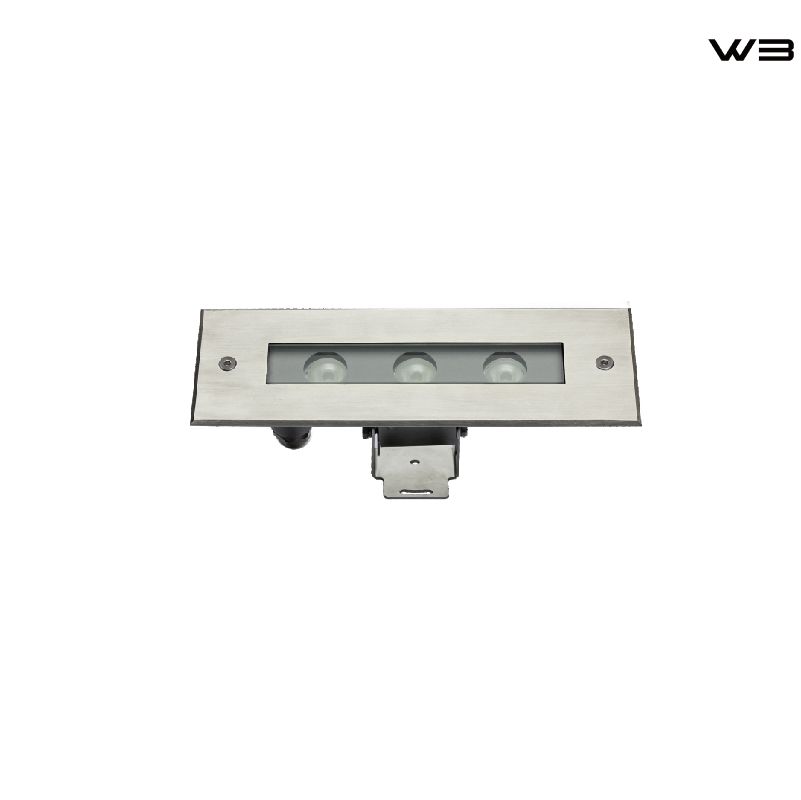

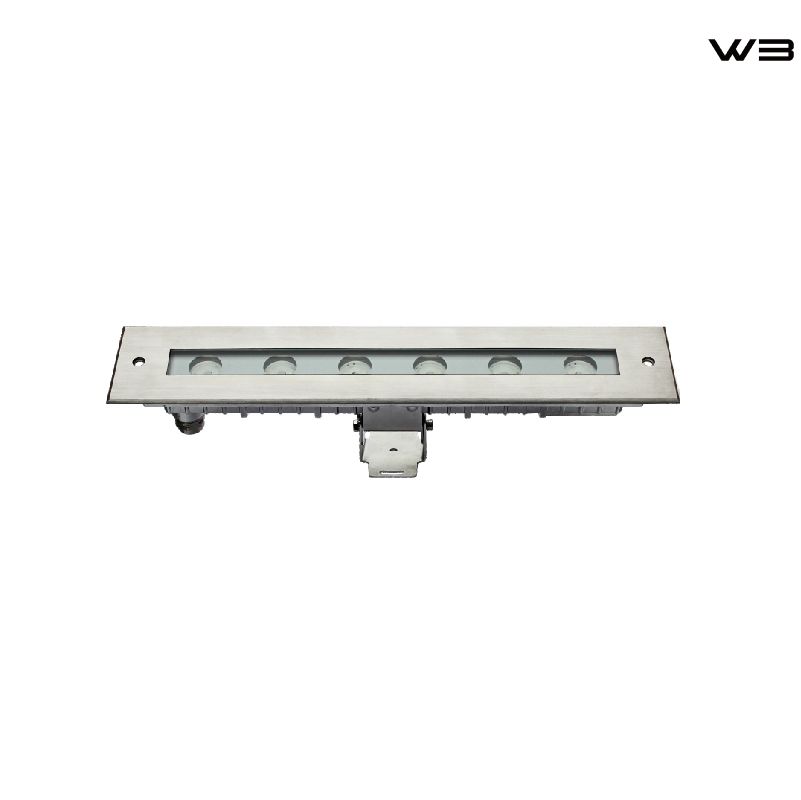

Two Length Options: 195mm for tighter spaces and accent lines; 328mm for bolder linear effects.
Usage Guidelines (Installation & Operation)
Proper installation is critical for long-term performance and safety. These lights must be installed by qualified electricians.
Before Installation:
Turn off all power at the breaker.
Ensure the mounting surface is flat, clean, and level.
Verify the recess cut-out matches the fixture dimensions with adequate space for drainage and cable routing.
Use only compatible 24VDC drivers/power supplies from reputable brands.
Installation Steps Overview:
Prepare the recess pocket with proper waterproof conduit and drainage.
Place the light into the cut-out and secure it firmly.
Connect the low-voltage cables according to the wiring diagram (pay close attention to polarity).
Test the light before final backfilling or sealing the deck.
Allow the light to cool naturally after testing — do not cover it while powered on.
Daily Operation & Maintenance:
Always disconnect power before cleaning. Use a mild, non-abrasive cleaner and soft cloth.
Periodically check cable seals and mounting stability, especially after heavy storms.
Avoid using high-pressure water directly on the light surface during deck cleaning.
For RGB/RGBW models, use a compatible controller to prevent signal issues.
Application Scenarios
Perfect for:
Swimming pool perimeters and steps
Spa and water feature edges
Modern landscape retaining walls
Hotel and resort pool decks
Private luxury residences
Commercial water features and fountains
Many projects use these lights to create glowing linear accents along pool benches, infinity edges, or submerged seating areas. The even light distribution makes them especially effective for both functional safety lighting and dramatic nighttime ambiance.
Frequently Asked Questions
What is the recommended recess cut-out size for installation?

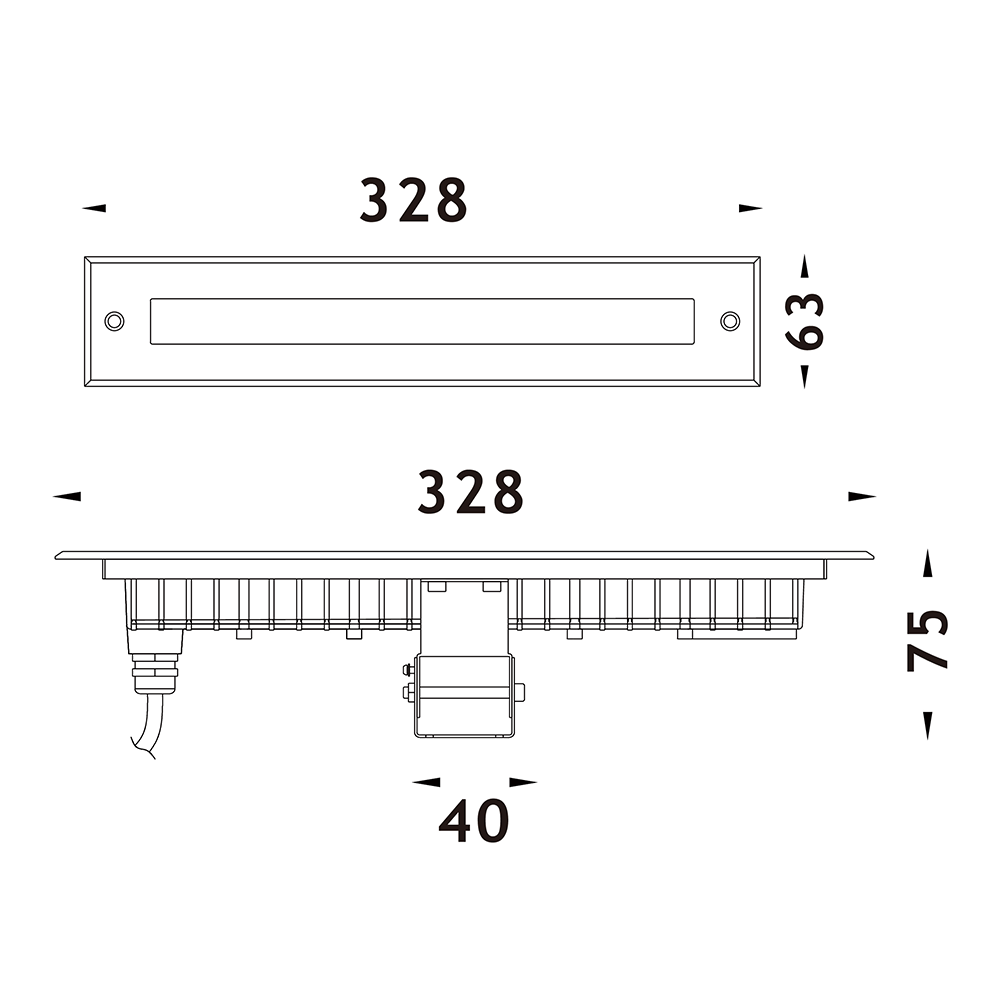

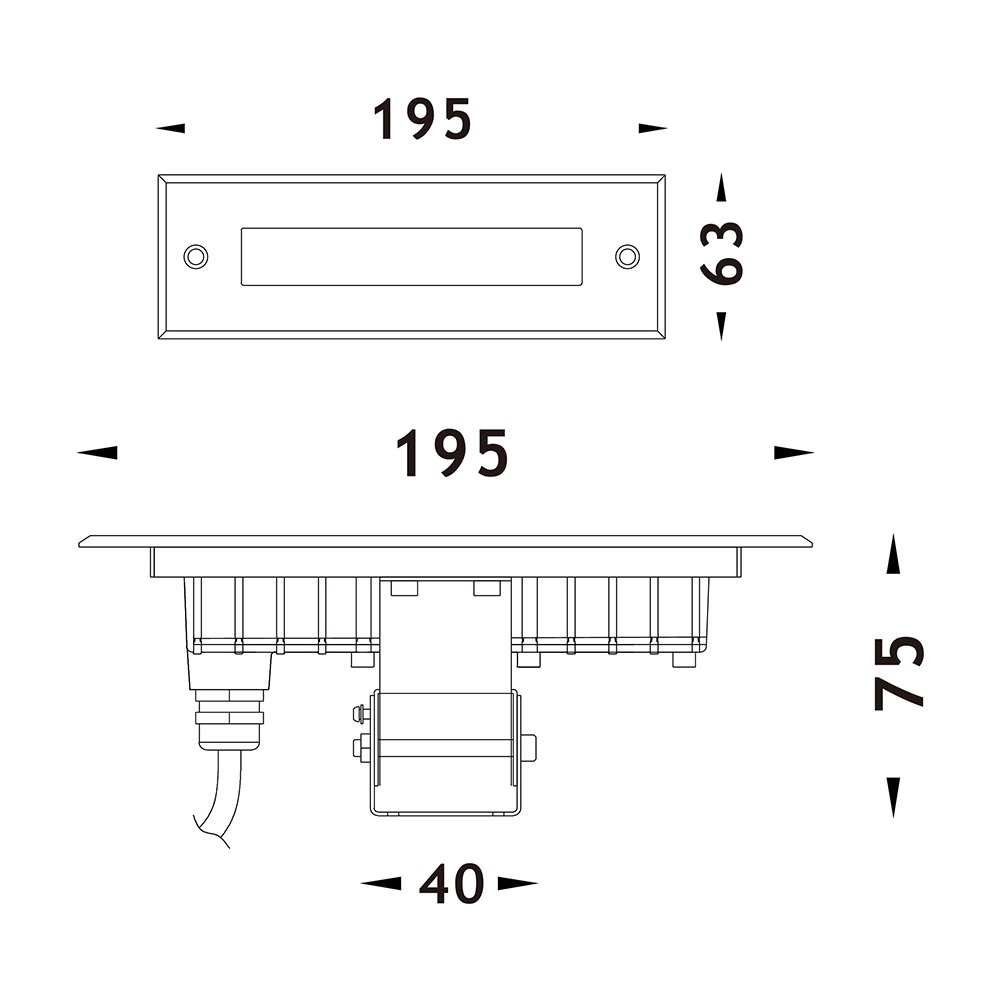

For the 195mm version, prepare a cut-out of approximately 200–205mm length. For the 328mm model, use 333–338mm. Exact dimensions are shown in the technical drawings. Leave proper drainage space below the fixture.
Are these lights suitable for saltwater pools?
Yes. The 316 stainless steel housing and high-quality seals are designed for both freshwater and saltwater environments. Proper bonding and grounding are still required.
Can these be controlled with standard DMX systems?
Absolutely. The lights support DMX512 control when paired with compatible drivers. We can provide detailed wiring diagrams for system integrators.
What warranty do you offer on the WB5063L2 series?
These lights come with a 3-year warranty against manufacturing defects. Warranty coverage requires correct installation according to the provided instructions.
Do you offer bulk/project pricing and custom configurations?
Yes. We work with lighting distributors, pool contractors, and project developers on volume orders. Custom lengths, specific color temperatures, and longer cable runs can be discussed for qualified projects.
