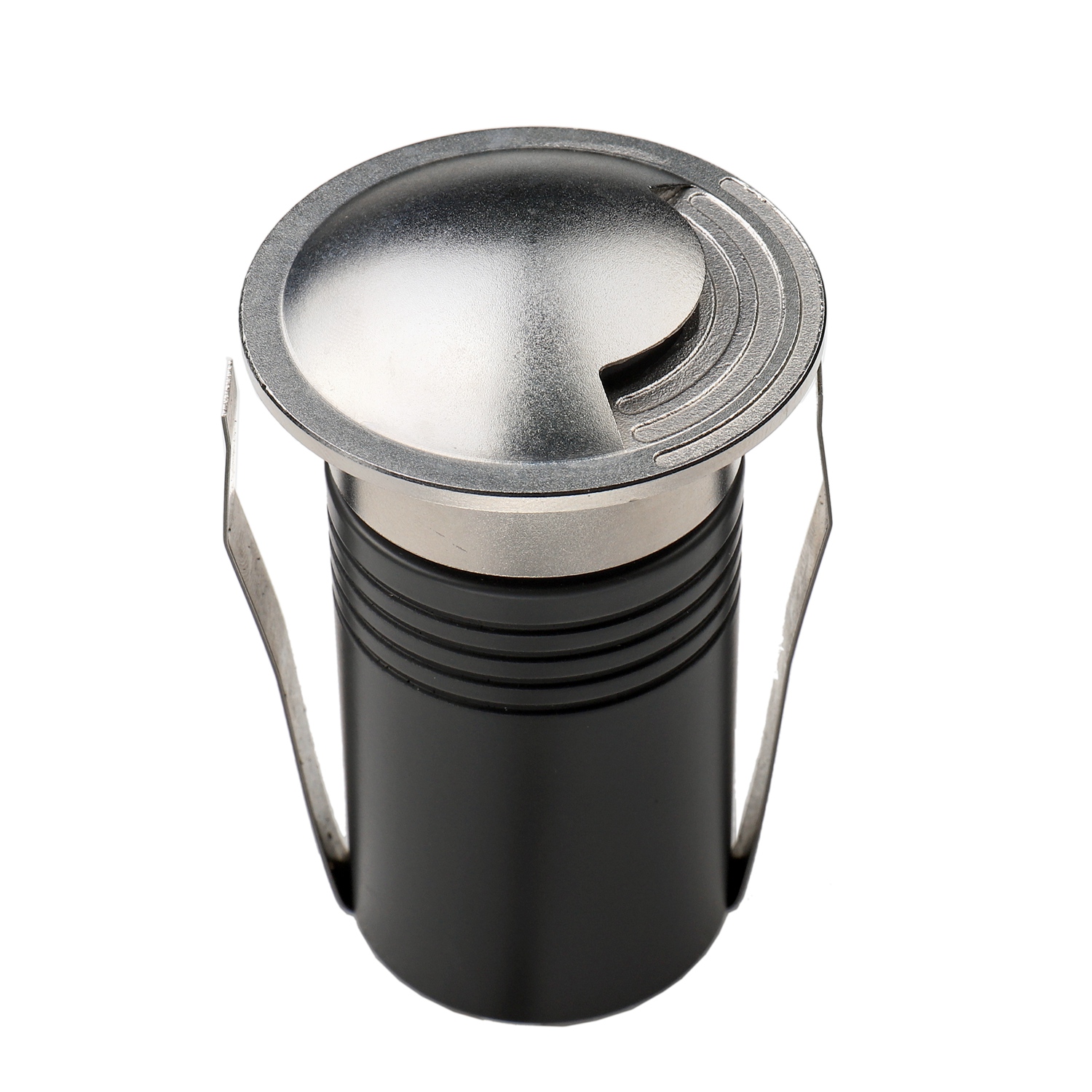

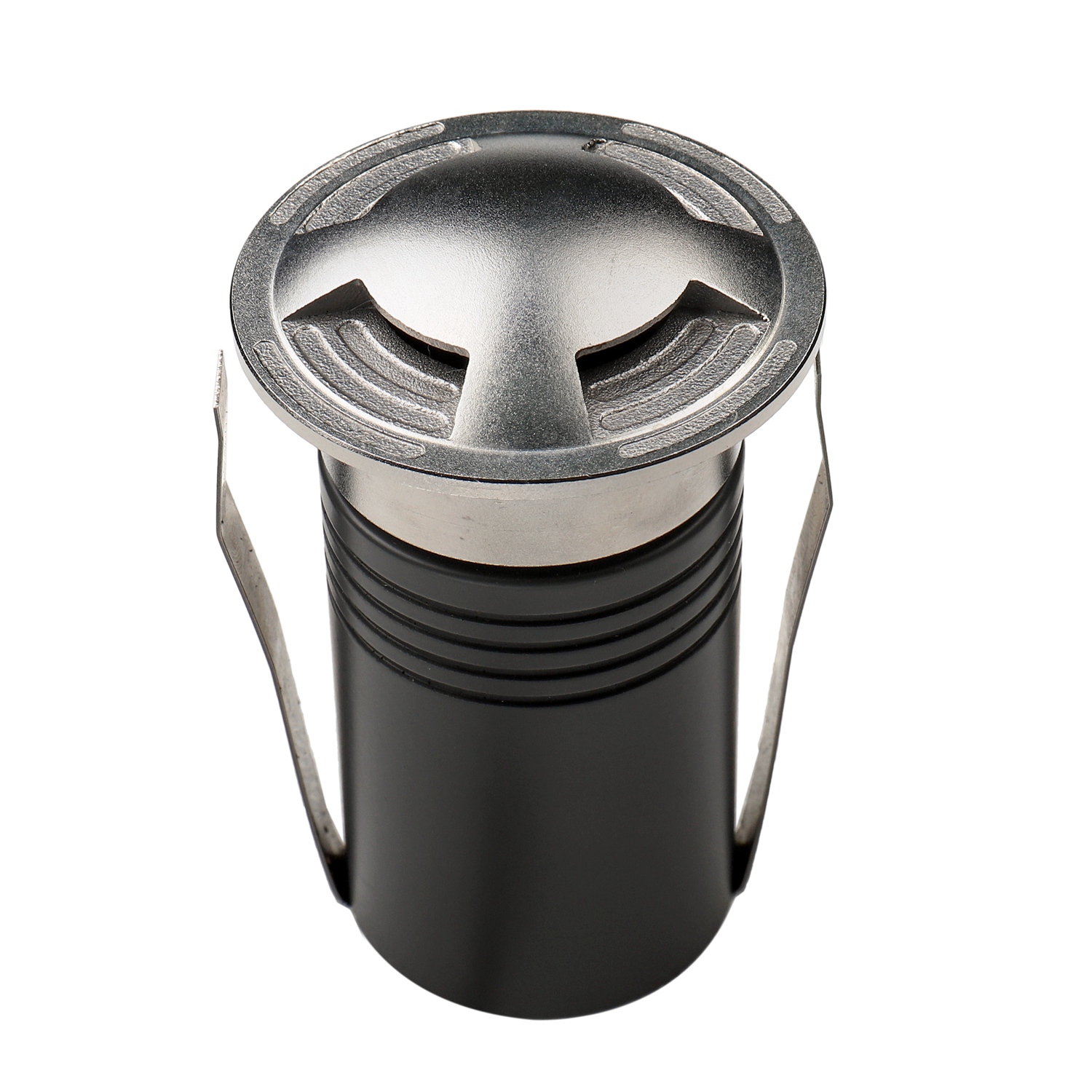

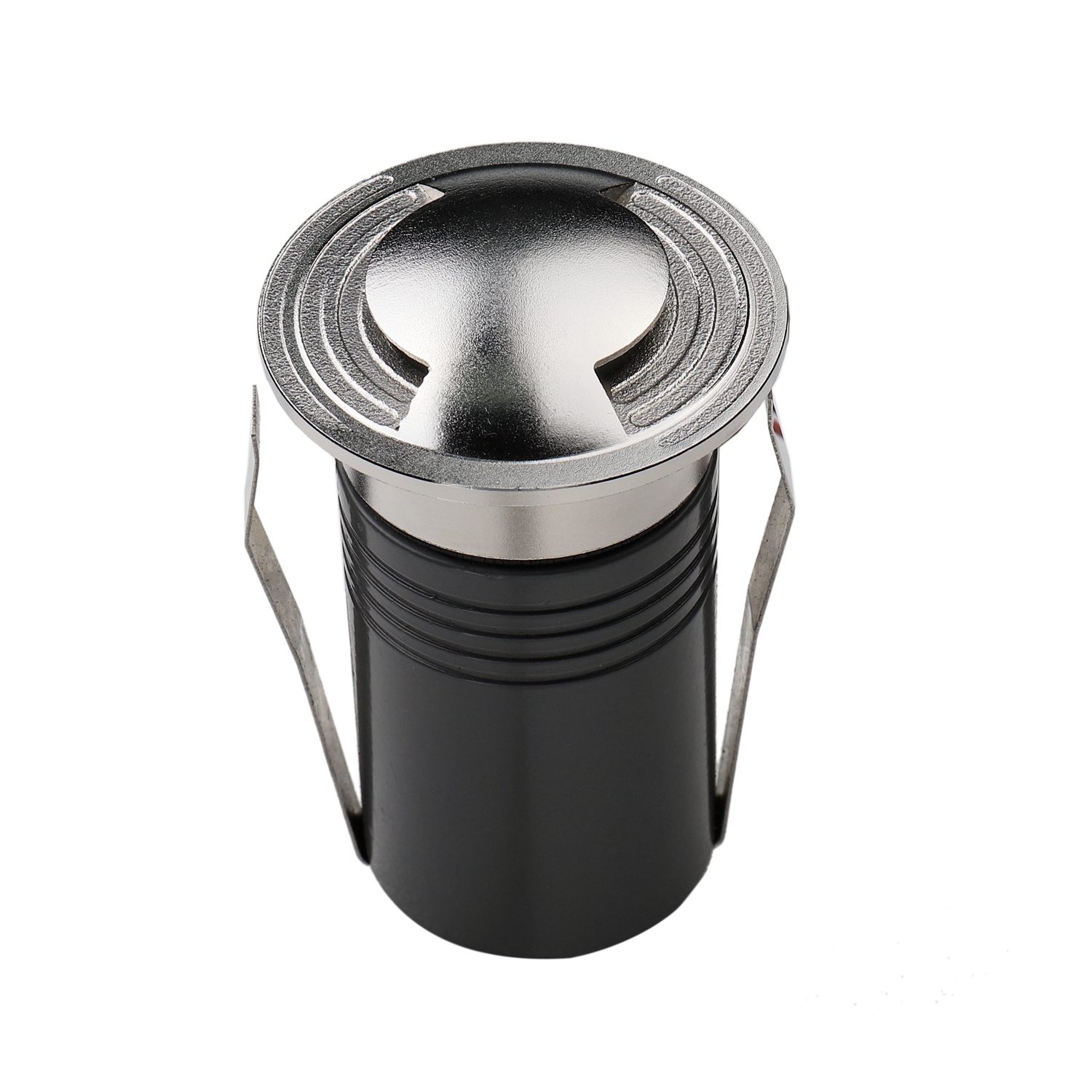

Dual-Way LED Inground Side Light WB2173R7- 1WAY / 2WAY / 4WAY
The WB2055RT-2WAY is a rugged, dual-direction LED inground side light designed for professional landscape and architectural lighting. This compact recessed fixture delivers two focused light beams in opposite directions from a single ground-level point, making it an excellent choice for illuminating pathways, steps, retaining walls, and building facades with clean, balanced lighting.
Detailed Product Parameters
| Parameter | Specification |
| Model | WB2055RT-2WAY |
| Power | 14W |
| Light Direction | Dual-way (2 opposite beams) |
| Beam Angle | 30° per direction |
| Input Voltage | 24VDC / 220-240VAC (model dependent) |
| Color Temperature | 2700K / 3000K / 4000K / 5000K / 6500K |
| CRI | >80 |
| Material | Die-cast aluminum body + Stainless steel trim |
| Protection Rating | IP67 Waterproof & Dustproof |

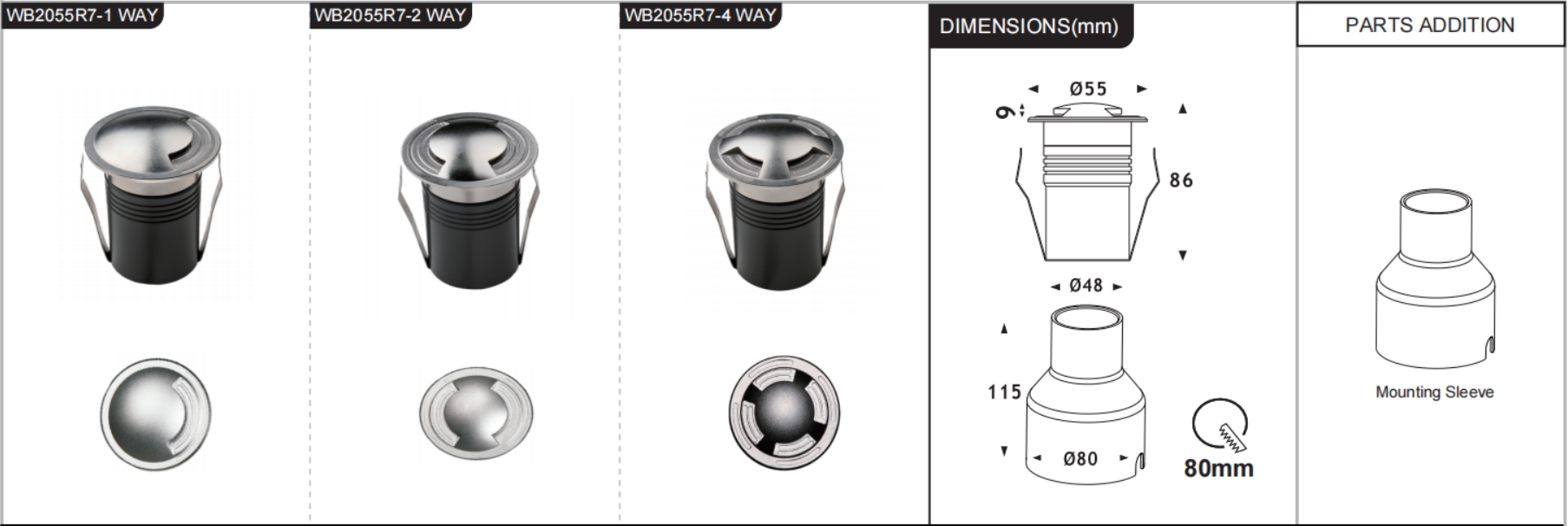

| Dimensions | Ø80mm × 115mm (height), 60mm mounting depth |
| Warranty | 3 Years |
Built for the Outdoors
Crafted from high-quality die-cast aluminum with a stainless steel trim ring and mounting sleeve, this light is engineered to withstand years of exposure to rain, snow, dust, and foot traffic. Its IP67 waterproof rating ensures complete protection against water ingress, while the low-profile design allows the top cover to sit almost flush with the surface, blending seamlessly into decks, walkways, and garden areas during the day.
The durable construction includes robust stainless steel mounting clips and a sealed LED module that keeps moisture and debris out. The sleek, modern appearance with its brushed metal finish complements both contemporary and traditional outdoor designs.
Lighting Performance
This 14W dual-way inground light uses high-efficiency LEDs to produce bright, consistent illumination with excellent color rendering (CRI >80). Each direction features a precise 30° beam angle that minimizes light spill and glare while effectively washing light across surfaces.
Available in multiple color temperatures — from warm 2700K-3000K for a cozy ambiance to neutral 4000K or cool 5000K-6500K for modern or security applications — it gives designers and homeowners the flexibility to match the overall lighting scheme.
Key Advantages
Dual-direction lighting: Perfect for linear applications where you need balanced illumination on both sides without installing two separate fixtures.
Energy efficient and long-lasting: Low power consumption combined with solid-state LEDs means lower electricity bills and minimal maintenance.
Safety focused: Cool-to-touch operation and secure mounting reduce risks in high-traffic areas.
Versatile use: Suitable for residential gardens, commercial landscapes, hotel entrances, public parks, pool decks, and architectural highlights.
Reliable warranty: Backed by a 3-year warranty for peace of mind.
Easy Installation
The WB2055RT-2WAY is designed for straightforward installation. The pre-embedded mounting sleeve allows for clean integration into concrete, soil, or deck structures. Simply connect the pre-wired power cable (supporting both low-voltage 24VDC and line-voltage options depending on configuration), and the fixture snaps securely into place. Clear step-by-step instructions and connection diagrams are provided to help electricians and DIY enthusiasts complete the job quickly and safely.
Ideal Applications
This dual-way inground side light excels in many scenarios:
Lighting both sides of garden pathways or stone walkways
Accentuating textured retaining walls and architectural features
Illuminating stair risers and deck edges for safety and aesthetics
Creating guiding light lines in commercial plazas or hotel grounds
Highlighting perimeter walls and building bases
In real installations, landscape designers often use these lights to create subtle guiding effects along wide walkways or to beautifully wash light upward on feature walls, adding depth and dimension to outdoor spaces at night while remaining nearly invisible by day.
Whether you’re planning a new landscape project or upgrading existing outdoor lighting, the WB2055RT-2WAY Dual-Way LED Inground Side Light offers professional-grade performance, durable construction, and elegant design at a practical price point.
