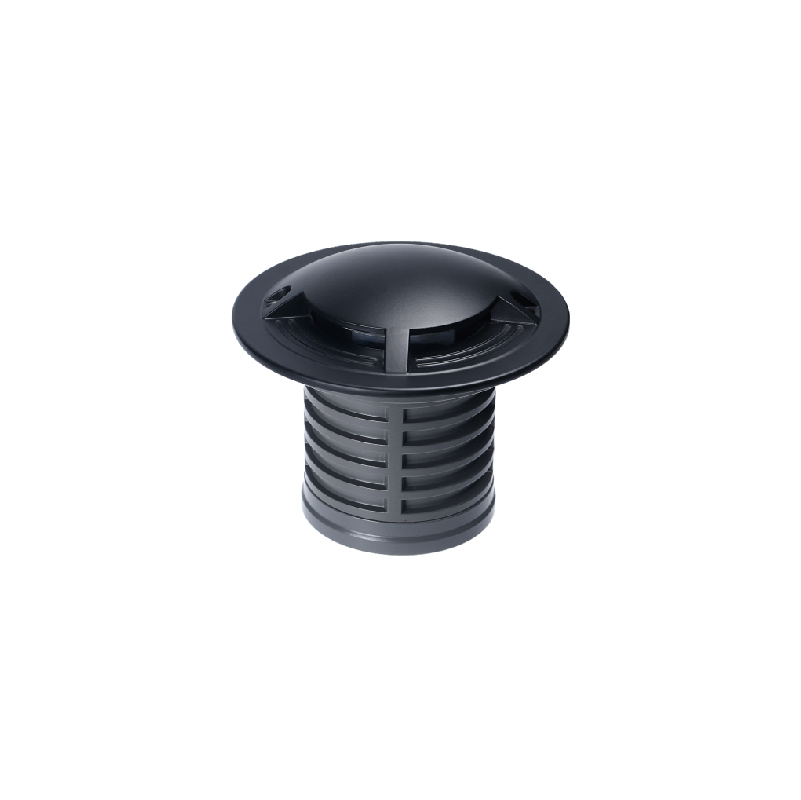

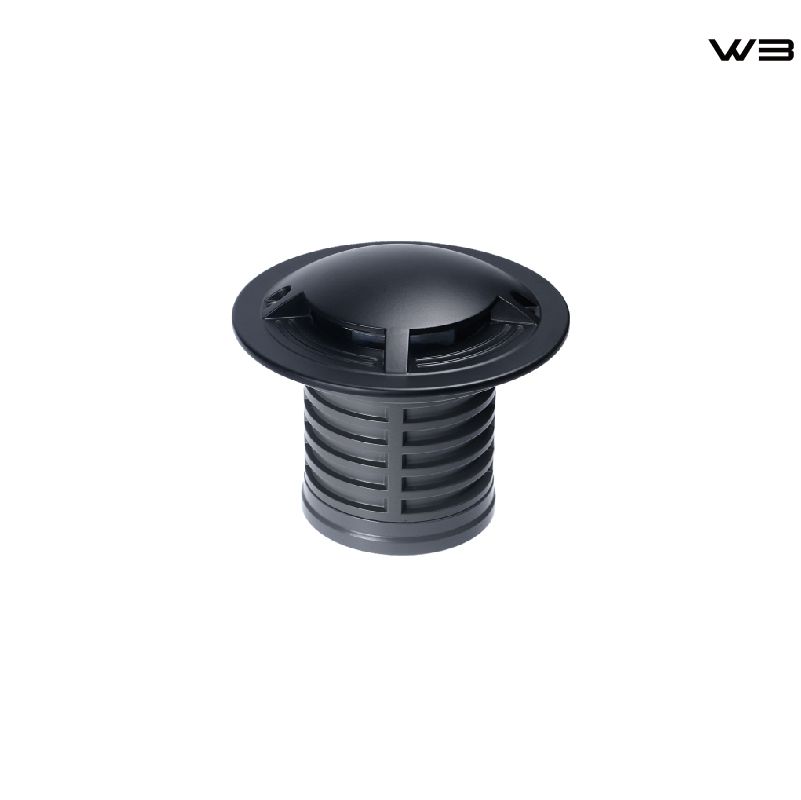

Discover the WB2116R7 LED Recessed In-Ground Unidirectional Diffused Side Light
Illuminate your outdoor spaces with precision and elegance using the WB2116R7 LED Inground Side Light. Designed as a high-performance recessed uplight, this fixture features a sleek, modern cylindrical body with a domed top and strategic light slits for beautiful unidirectional or bidirectional diffused illumination. Perfect for creating dramatic lighting effects along pathways, deck edges, garden borders, and architectural features, it blends seamlessly into the ground while delivering reliable, energy-efficient performance.
Product Attributes
Model Variants: WB2116R7-1 WAY (Unidirectional) / WB2116R7-2 WAY (Bidirectional)
Finish: Premium die-cast aluminum housing with durable black powder coating for corrosion resistance
Light Source: High-quality LEDs with options for warm white (2700K-3000K), neutral/cool white, or vibrant RGB
Beam & Optics: Diffused side-emitting design for soft, glare-free uplighting
Mounting: Includes mounting sleeve for secure recessed installation in concrete or soil
Certifications: CE, RoHS compliant, with high ingress protection for wet locations
Detailed Technical Specifications
Category | Specification |
Model | WB2116R7-1 WAY / WB2116R7-2 WAY |
Material | Die-cast Aluminum, Powder-coated Black |
Light Direction | Unidirectional Diffused / Bidirectional |
LED Type | High CRI SMD LEDs |
CCT / Color | 2700K-5000K / RGB |
Power | 6W - 9W (model dependent) |
Luminous Flux | Up to ~500-800 lm (varies by config) |
Input Voltage | 24VDC / 220VAC options |
IP Rating | High IP rating for inground use |

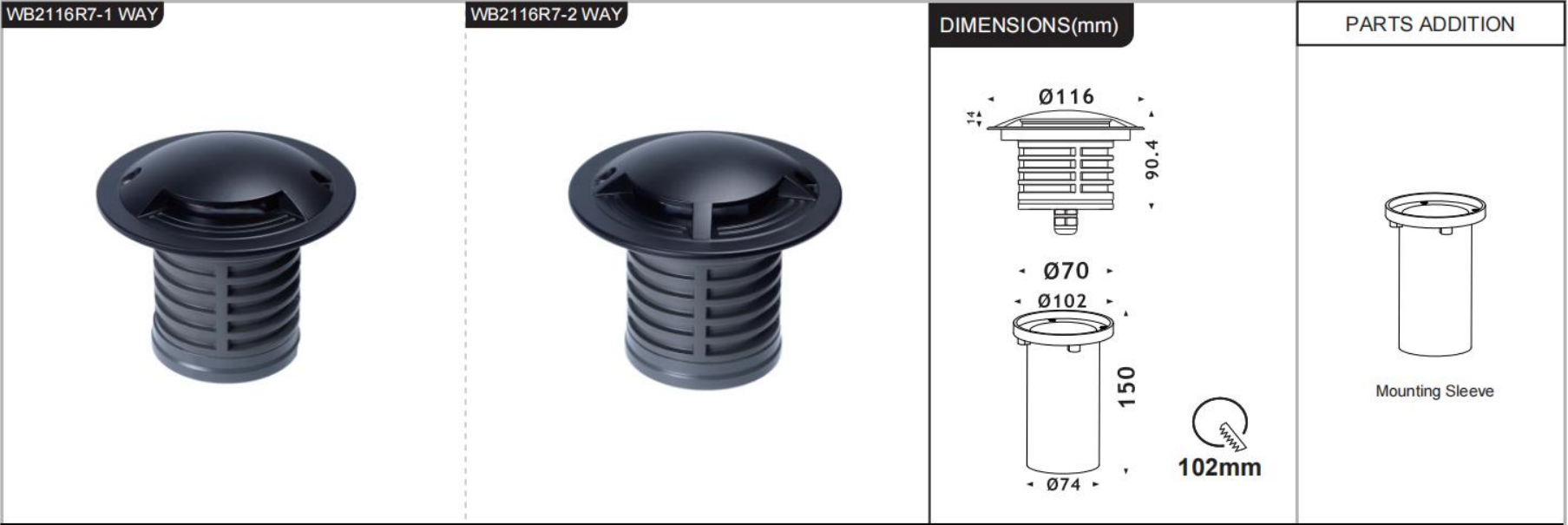

Dimensions | Top Ø116mm, Height ~150mm, Recessed depth per sleeve |
Installation | Recessed with mounting sleeve |
Warranty | 3 Years |
Product Construction
Crafted from robust die-cast aluminum, the WB2116R7 boasts a heavy-duty powder-coated black finish that withstands harsh outdoor environments. The integrated LED module and driver ensure excellent thermal management, while the high-transmission glass or acrylic lens protects the optics and delivers even light distribution. Its compact recessed profile (with Ø70-116mm top dimensions) minimizes visual intrusion while maximizing durability.
Key Advantages
Exceptional build quality for long lifespan (50,000+ hours)
Low power consumption with high luminous efficacy
Unidirectional diffused light reduces light pollution and glare
Easy installation with pre-wired options and clear connection diagrams
3-year warranty and compliance with international safety standards
Versatile 1-way or 2-way light output for creative designs
Application Scenarios
This versatile inground light excels in residential gardens, commercial landscapes, hotel pathways, public parks, and architectural facades. Use it to highlight trees, steps, walls, or water features. Its diffused unidirectional output creates sophisticated layering effects ideal for modern outdoor lighting designs, enhancing safety and ambiance without overwhelming the space
