Ultra-Thin LED Side-Emit Uplight Waterproof Recessed Deck Light
levate your outdoor spaces with the Ultra-Thin LED Inground Turtle Shell Side-Emit Uplight (Model: WB2116R7 / WB2173R7). This innovative recessed fixture features a distinctive "turtle shell" design with precision side-emitting optics that create stunning upward wall-washing and accent lighting effects. Engineered for durability and performance, it combines an ultra-slim profile with high-grade materials to withstand harsh outdoor environments while delivering exceptional illumination with minimal visual intrusion.
Whether you're lighting up garden pathways, pool decks, architectural facades, or modern landscapes, this versatile inground light provides subtle yet powerful ambient glow without glare.
Product Attributes
Ultra-Thin Design: Low-profile installation (49–54.5mm height) ideal for shallow recesses.
Side-Emitting Technology: Creates beautiful grazing and wall-wash effects.
High Durability: IP67 waterproof and IK-rated impact resistance.
Energy Efficient: Low-power LED with excellent lumen output.
Customizable Options: Single color (warm white) or RGB variants.
Detailed Technical Specifications
| Parameter | WB2116R7 | WB2173R7 |
Power | 8W (Single) / 12W (RGB) | 12W (Single) / 12W (RGB) |
LED Type | COB / SMD | COB / SMD |
CCT / Color | 3000K Warm White / RGB | 3000K Warm White / RGB |
Beam Angle | Side Emit (1 WAY Wall Wash) | Side Emit (1 WAY Wall Wash) |
Luminous Flux | ~80lm (8W) / ~105lm (12W) | ~105lm (12W) |
Input Voltage | 12V DC / 24V DC | 12V DC / 24V DC |

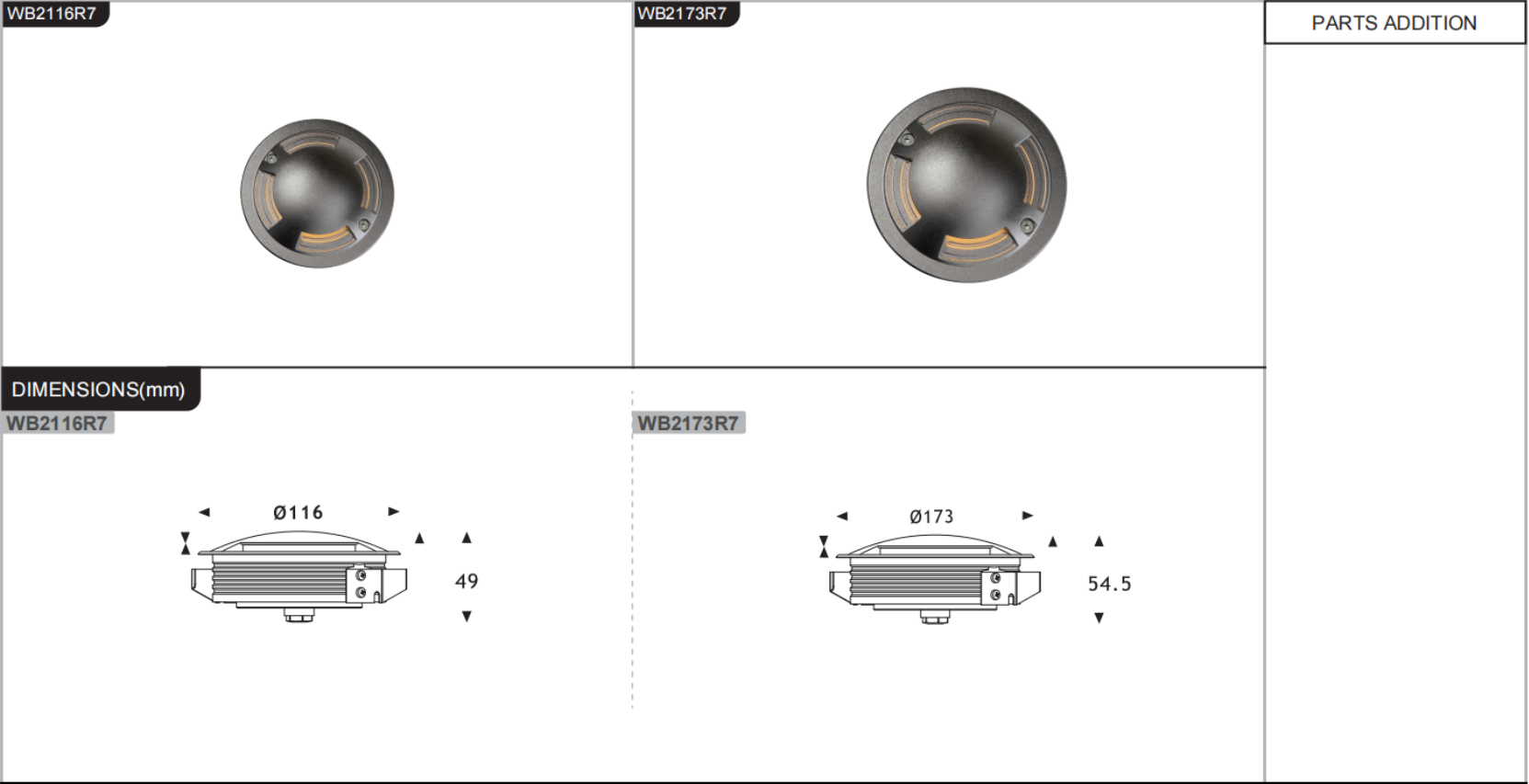

Diameter | Ø116mm | Ø173mm |
Height | 49mm | 54.5mm |
Material | Die-cast Aluminum + Tempered Glass | Die-cast Aluminum + Tempered Glass |
Protection Rating | IP67 Waterproof | IP67 Waterproof |
Installation | Recessed Inground | Recessed Inground |
Working Temperature | -20°C ~ +45°C | -20°C ~ +45°C |
Product Advantages
Seamless Integration: Virtually invisible when installed, preserving clean architectural lines.
Superior Weather Resistance: IP67 rating makes it suitable for wet locations and underwater-adjacent applications.
Easy Installation: Pre-wired for quick recessed mounting in concrete or decks.
Long Lifespan: High-quality LEDs and drivers ensure 50,000+ hours of reliable operation.
Low Maintenance: Anti-corrosion materials and easy-clean surface reduce upkeep.
Versatile Voltage: Supports 12V/24V DC for safe low-voltage installations.

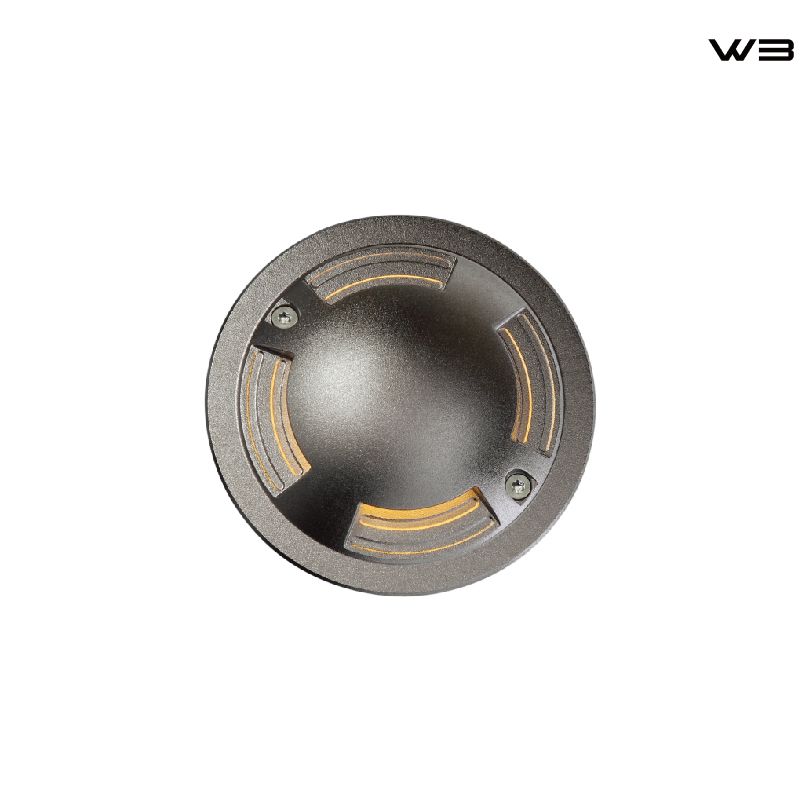

Product Construction
Crafted from high-pressure die-cast aluminum with a corrosion-resistant powder-coated finish, the fixture features a robust outer ring secured by stainless steel screws. The central dome is protected by tempered glass, ensuring long-term clarity and protection against moisture, dust, and mechanical damage. Premium COB or SMD LEDs paired with high-efficiency optics deliver consistent, even light distribution.
Application Scenarios

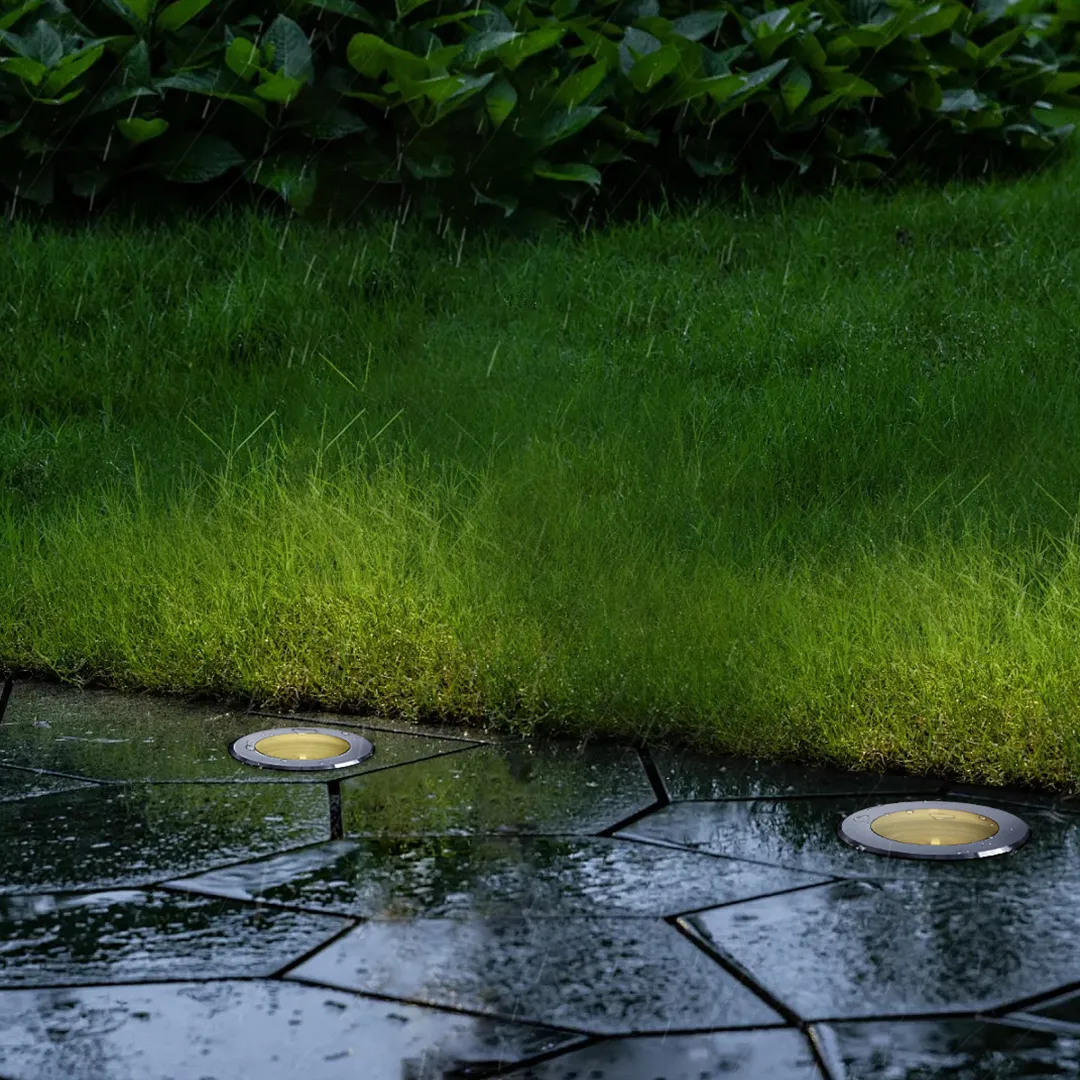

Architectural & Landscape Lighting: Perfect for highlighting walls, steps, and garden features.

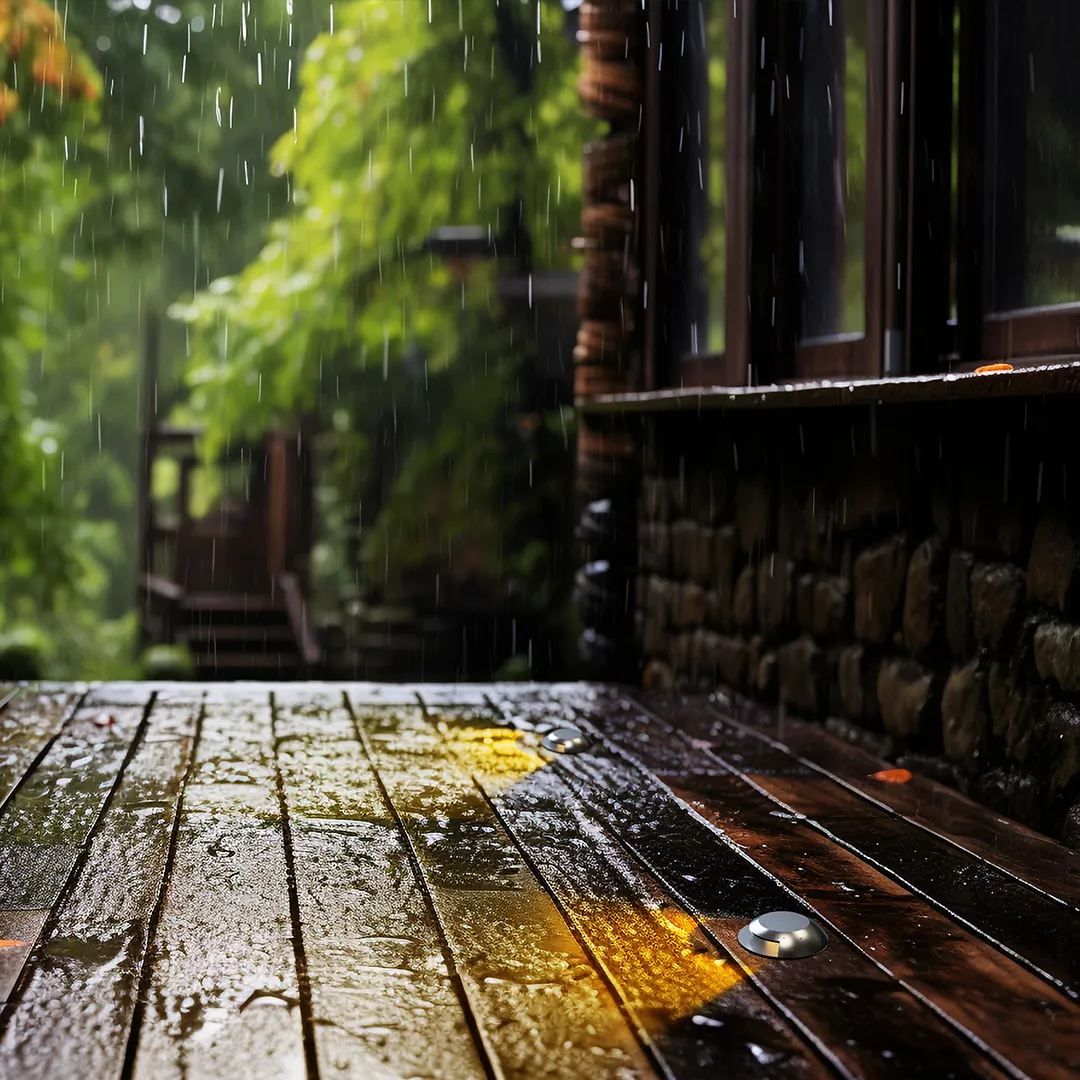

Pool & Deck Areas: Enhances safety and ambiance around water features.

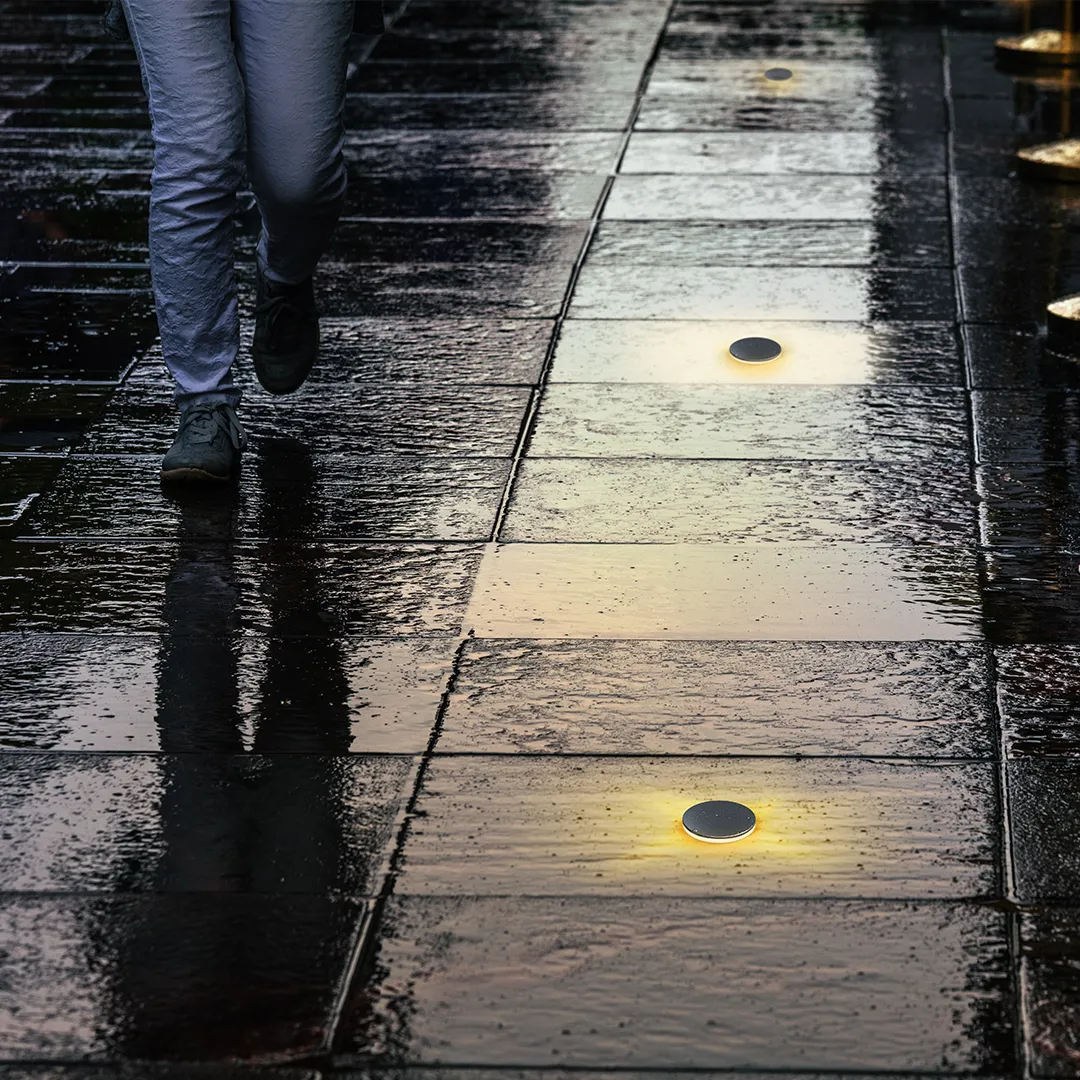

Pathway & Driveway Accents: Provides subtle guidance lighting.
Commercial Spaces: Hotels, resorts, restaurants, and public plazas.
Modern Residential: Contemporary homes seeking premium outdoor lighting solutions.
Real-World Cases
This series has been successfully deployed in luxury villa projects, high-end hotel pool decks, and urban landscape installations across Asia and Australia. Clients praise its elegant glow, reliable performance in heavy rain, and ability to transform nighttime environments into sophisticated, inviting spaces.
Why Choose WB Lighting
WB Lighting specializes in professional architectural and landscape lighting solutions for commercial, hospitality, and public projects worldwide. Our adjustable inground lighting systems combine advanced optical engineering, premium materials, and industry-leading waterproof technology to deliver exceptional lighting performance.
The Underground Lighting Fixture with Adjustable Beam Angle offers designers, architects, and contractors unmatched flexibility, precise beam control, and long-term outdoor reliability for demanding lighting applications.
