Slim LED Recessed Inground Light with Clip Mount – WB2050R (Round) / WB2050S (Square)
Introducing the Slim Type LED Inground Light with easy clip-mount system, designed for modern outdoor lighting applications where minimal depth and fast installation are essential. With its ultra-compact profile and high-quality construction, the WB2050 series delivers clean, efficient illumination while blending seamlessly into decks, pathways, and landscapes.
Product Attributes
Models: WB2050R (Round) / WB2050S (Square)
Power: 1.5W
Input Voltage: 24V DC (safe low voltage)
Light Source: High-quality LED with excellent color consistency
Color Temperature: 2700K–6500K available
IP Rating: IP67 waterproof and dustproof
Finish: Anodized aluminum body with silver finish
Detailed Technical Specifications
Parameter
Specification Details
|
|
Model | WB2050R (Round) / WB2050S (Square) |
Power | 1.5W |
Input Voltage | 24V DC |
Luminous Flux | ~88.8 lm |
Color Temperature | 2700K / 3000K / 4000K / 5000K / 6500K |
Beam Angle | 15° / 30° / 45° / 60° |
IP Rating | IP67 |
Housing Material | Aluminum (Anodizing Silver) |
Cover Material | Tempered Glass |

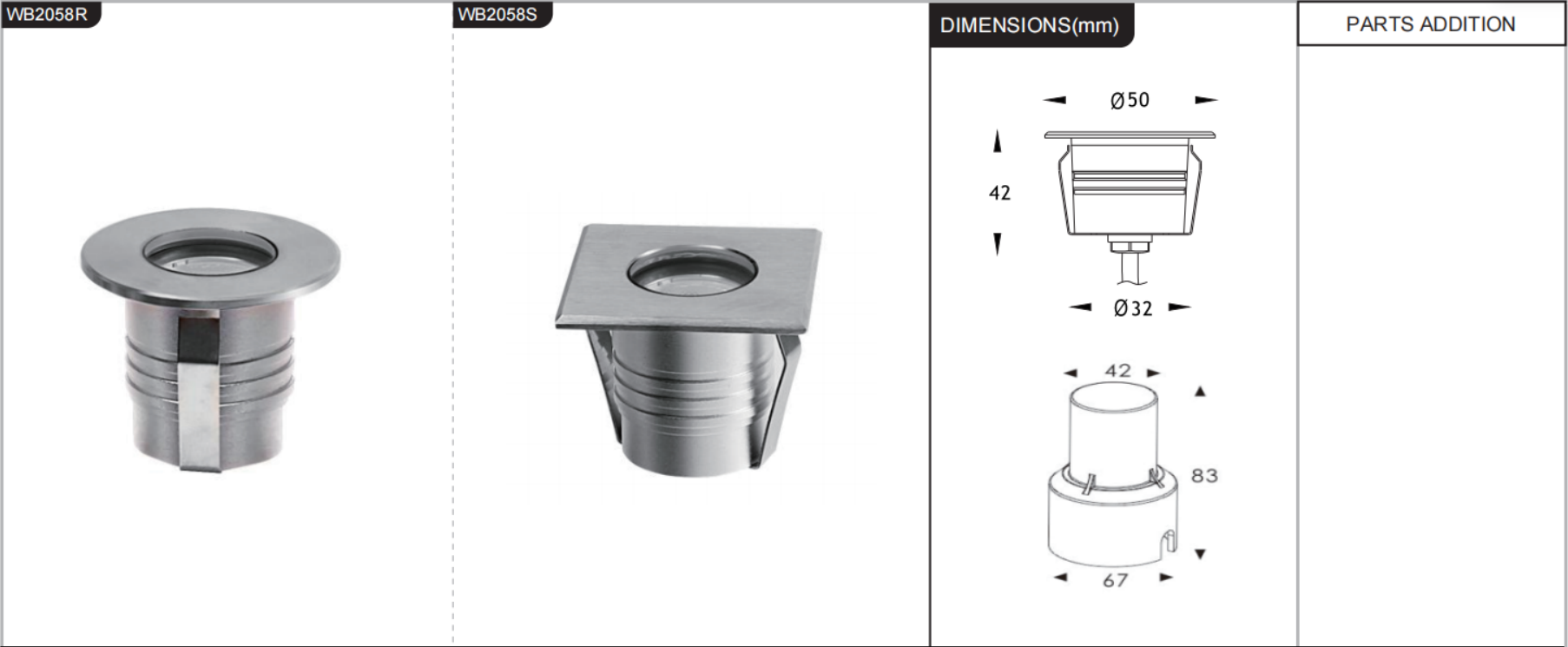

Dimensions | Refer to drawing (Ø50mm / 50x50mm face) |
Operating Temperature | -20°C to +45°C |
Lifespan | 50,000 hours |
Warranty | 3 Years |
Certifications | CE, RoHS, SAA |
Product Construction
This slim inground light features:
An ultra-thin design with only 42mm total height for minimal ground disturbance.
Durable aluminum housing with anodized silver finish for superior corrosion resistance.
Tempered glass front cover for high light transmission and impact protection.
Innovative spring clip mounting system for quick and secure installation without complex tools.
Fully sealed waterproof structure with high-quality gaskets and cable glands.
Pre-wired for easy connection.

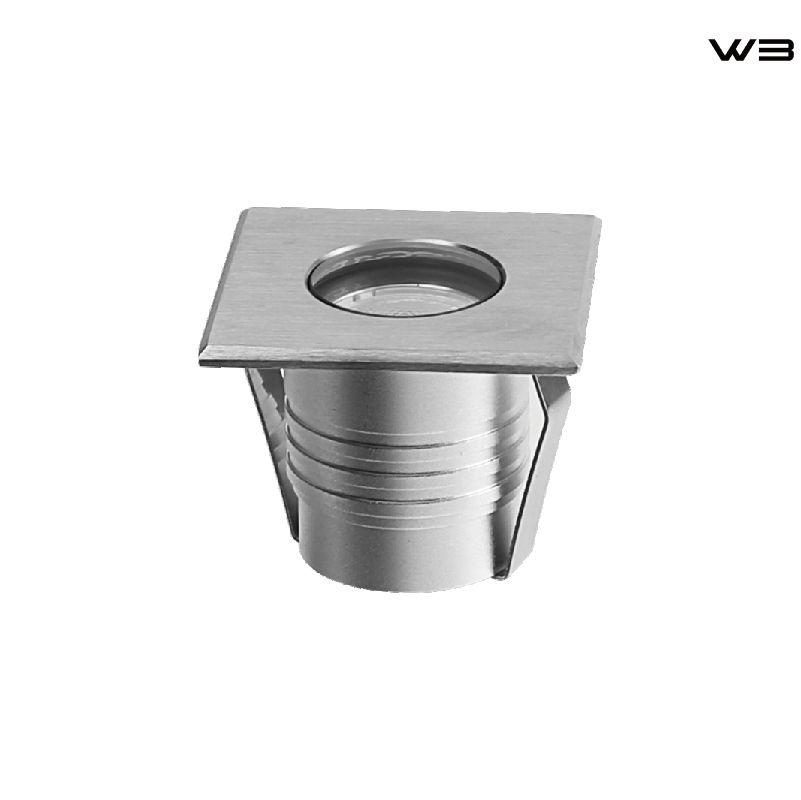

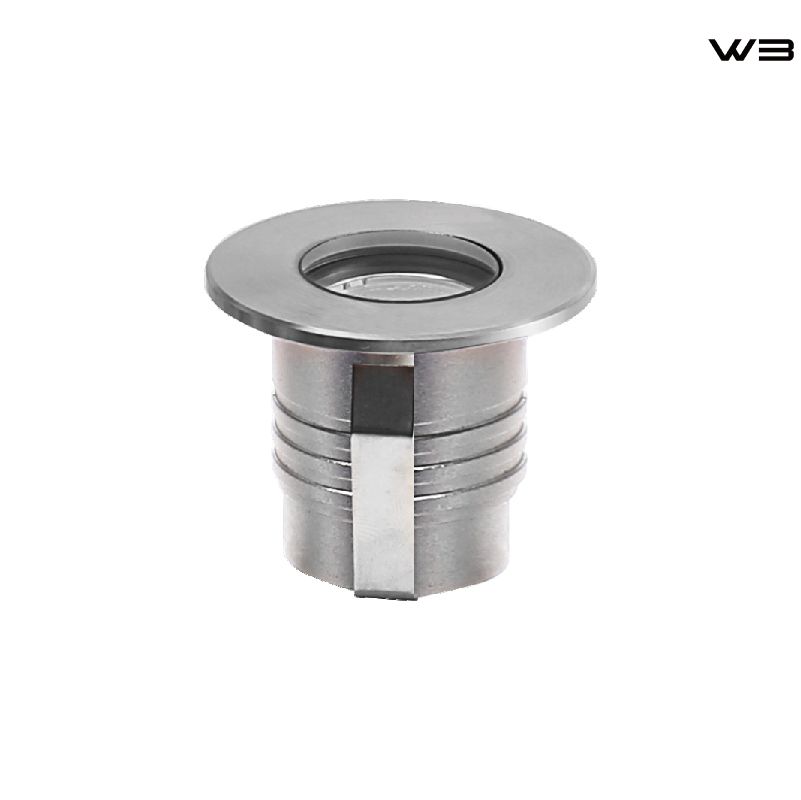

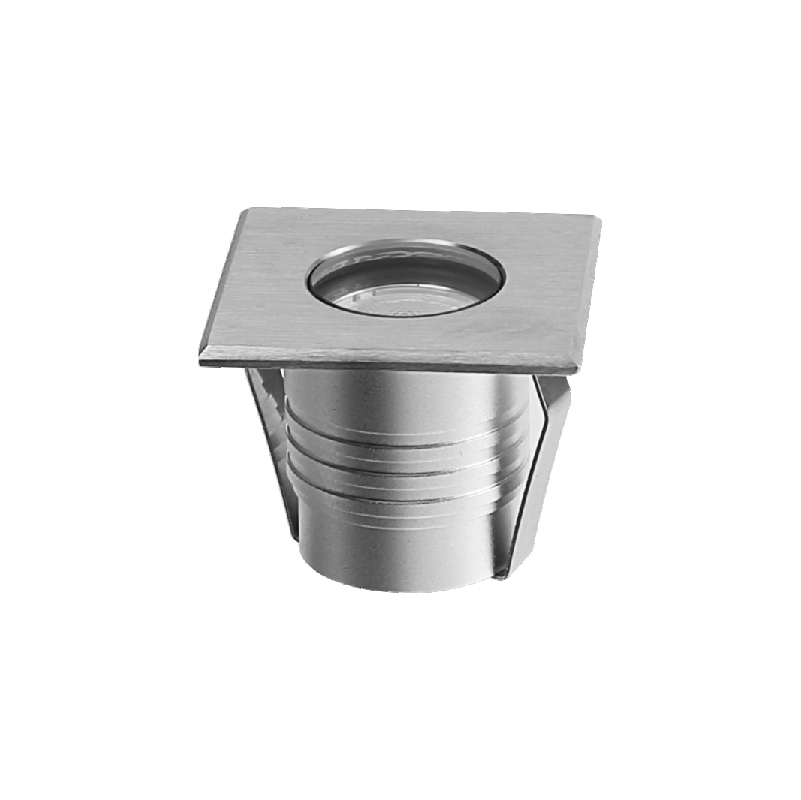

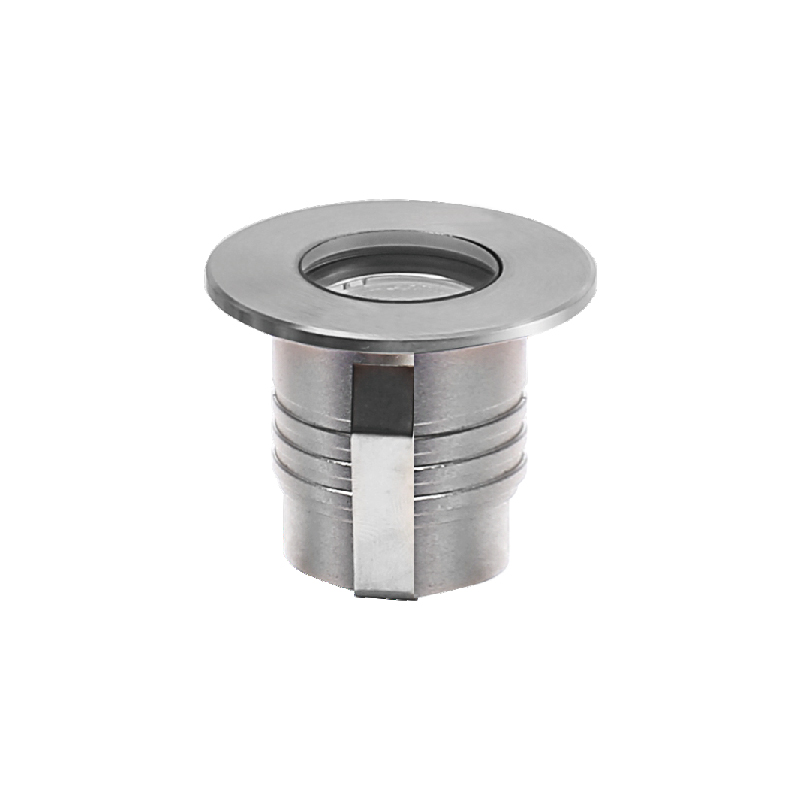

The round model offers a classic elegant look, while the square version provides a contemporary geometric aesthetic.
Key Advantages
Ultra-Slim Profile: Extremely low installation depth, ideal for shallow applications.
Tool-Free Clip Mount: Revolutionary spring clips allow fast, secure installation and easy maintenance.
Energy Efficient: Low 1.5W power consumption with bright, effective output.
Excellent Durability: IP67 rating ensures reliable performance in harsh outdoor environments.
Easy Installation: Designed for quick setup in concrete, wood decks, or soil with proper preparation.
Long Lifespan: 50,000 hours with stable performance and low heat generation.
Application Scenarios
Ideal for:

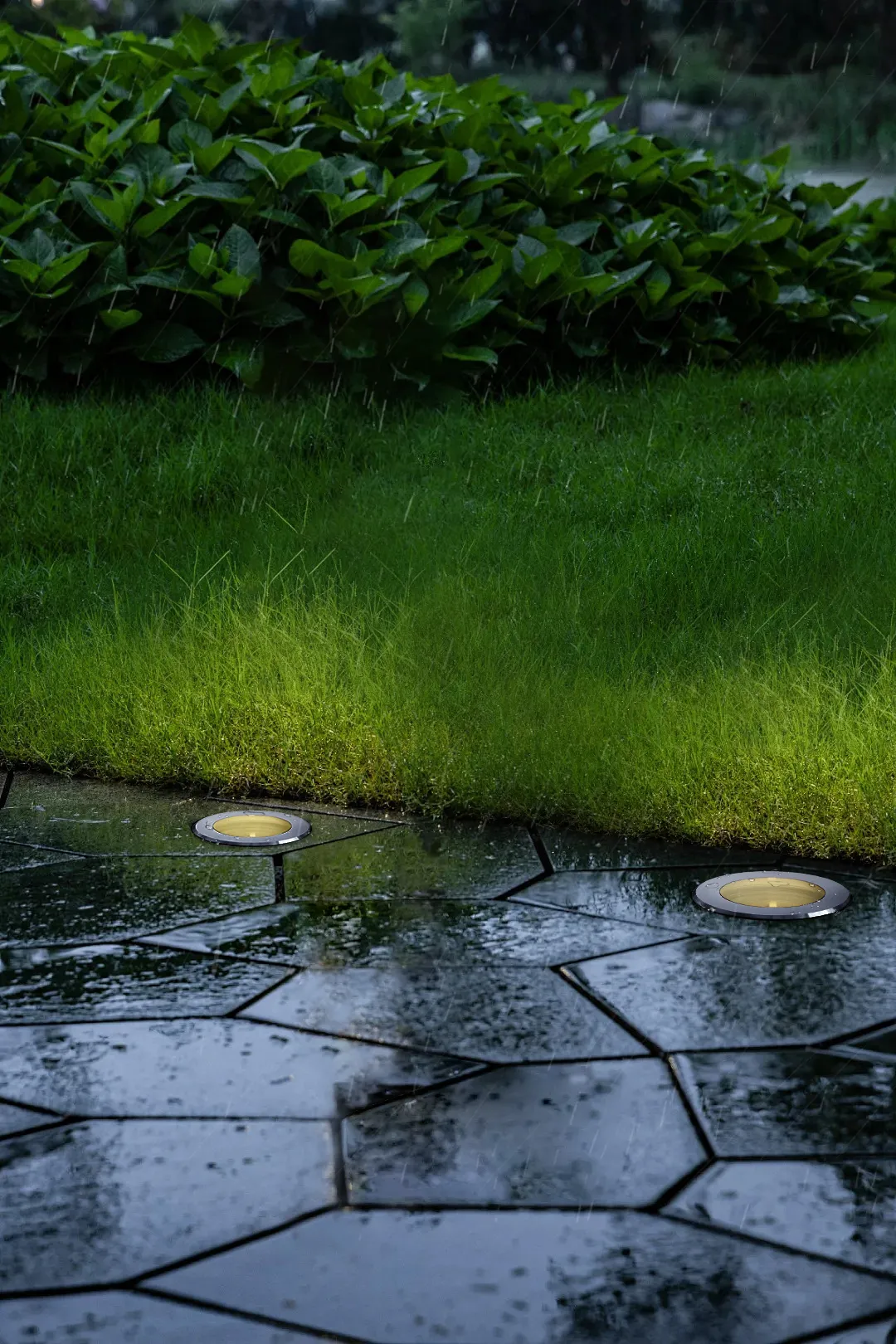

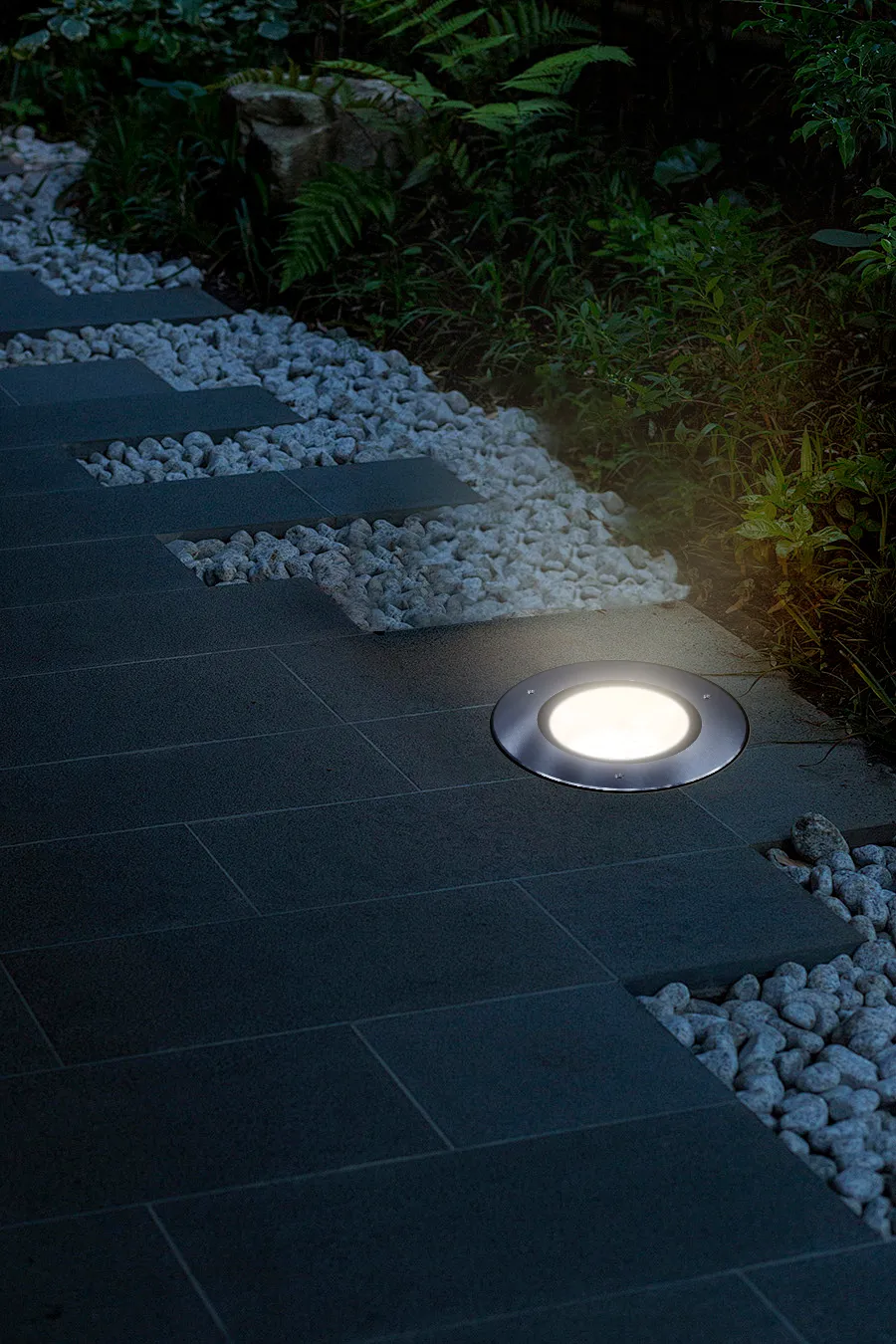

Garden pathways and walkways
Deck and patio accent lighting
Poolside and waterfront installations
Architectural feature highlighting
Commercial and residential landscape lighting
Driveway markers and step lighting
