Multi-Channel Side Lighting Walking Light

The WB2116R7 is a compact LED inground side light designed for outdoor use. It offers 2-way or 4-way light output for effective step and pathway lighting. Built with stainless steel cover and aluminum body, it features IP67 waterproof rating and works with 24VDC. Suitable for decks, gardens, and architectural installations.

Power	3W – 6.5W
Beam Angle	2×45° / 4×45°
Voltage	24VDC
Material	316L Stainless Steel + Aluminum
Protection	IP67

Add to Selection

Attributes

LED Multi-Channel Inground Side Light – 2 Way / 4 Way Pathway Lighting

WB2116R7 LED Multi-Channel Inground Side Light is a recessed fixture that provides directional side lighting. Available in 2-way and 4-way versions, it is commonly used for illuminating pathways, steps, garden walls, and building facades. Its low-profile design sits flush with the ground surface for a clean appearance.

Detailed Product Parameters

Item	Specification
Model	WB2116R7 (2-Way / 4-Way)
Power	3W / 6.5W
LED Type	High Power SMD LEDs
Beam Angle	2×45° or 4×45°
Input Voltage	24VDC
Material	316L Stainless Steel Cover + Aluminum Housing
Protection Rating	IP67, IK08
Operating Temperature	-20°C to +45°C
Lifespan	>50,000 hours
Certifications	CE, RoHS

Product Features & Construction

Premium Build Quality: Constructed with marine-grade 316L stainless steel top cover and high-quality aluminum housing for superior corrosion resistance. Tempered glass lens and silicone sealing ensure IP67 waterproof and IK08 impact protection.
Multi-Channel Optics: Available in 2-way and 4-way configurations with precise 45° beam angles for targeted side lighting without glare.
Efficient LED Technology: High-brightness LEDs (CRI >80) with options for single color, RGB, or tunable white. Low power consumption (3-6.5W) with excellent thermal management for extended lifespan.

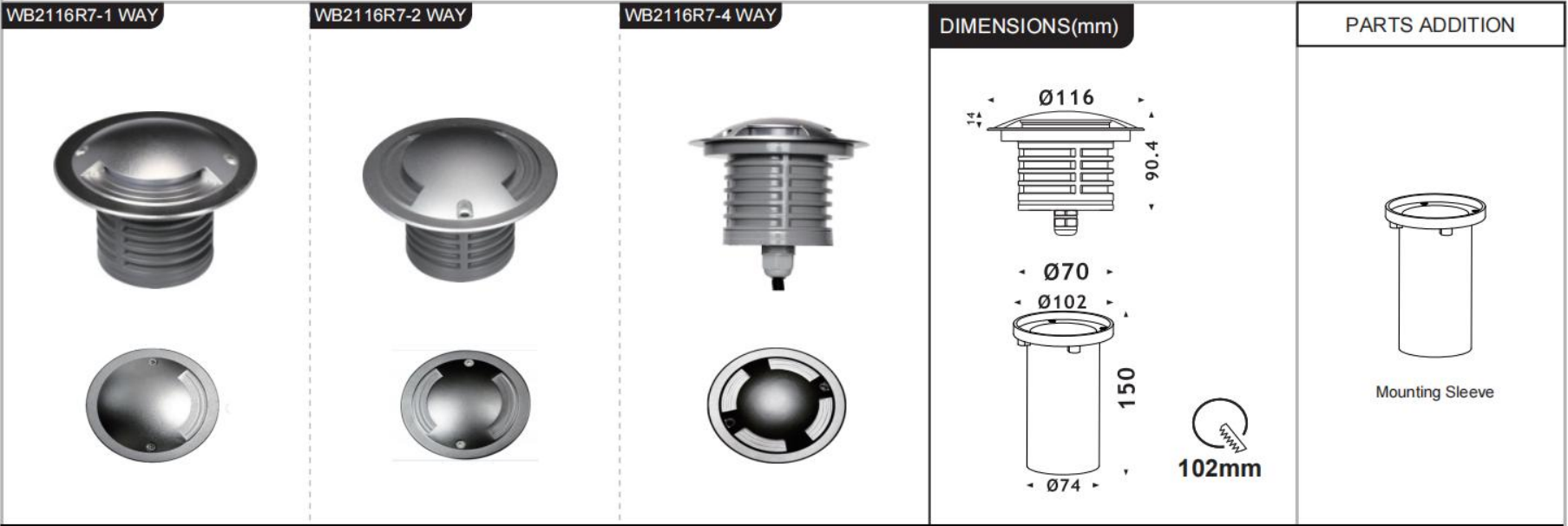

Easy Installation: Recessed mounting with pre-wired connectors. Suitable for 220VAC or 24VDC systems with proper drivers. Mounting depth approximately 120-150mm.

Product Advantages

Strong build quality suitable for outdoor environments and foot traffic.
Precise beam angles deliver focused side lighting with minimal glare.
Low power consumption and good heat dissipation support long-term reliability.
Easy recessed installation with pre-wired connectors.
Compatible with standard 24VDC drivers and DMX control systems.

Application Scenarios

This light works well for:

Residential garden pathways and deck lighting
Hotel and villa landscape features
Commercial building facade accent lighting
Step and stair safety illumination
Public waterfront and plaza areas

It is frequently chosen for projects needing reliable, discreet ground-level lighting that can handle various weather conditions.
