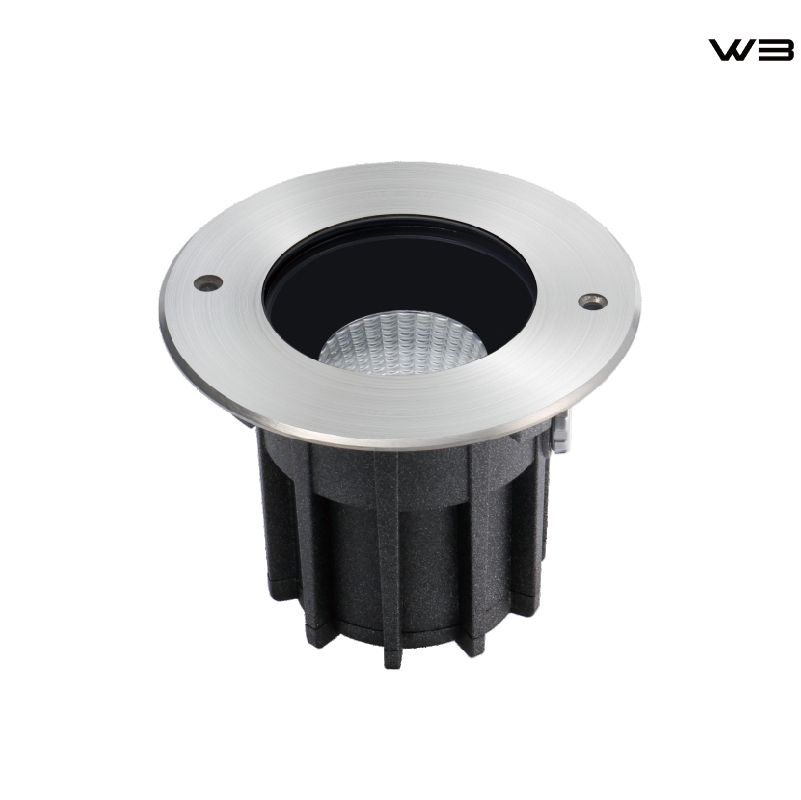

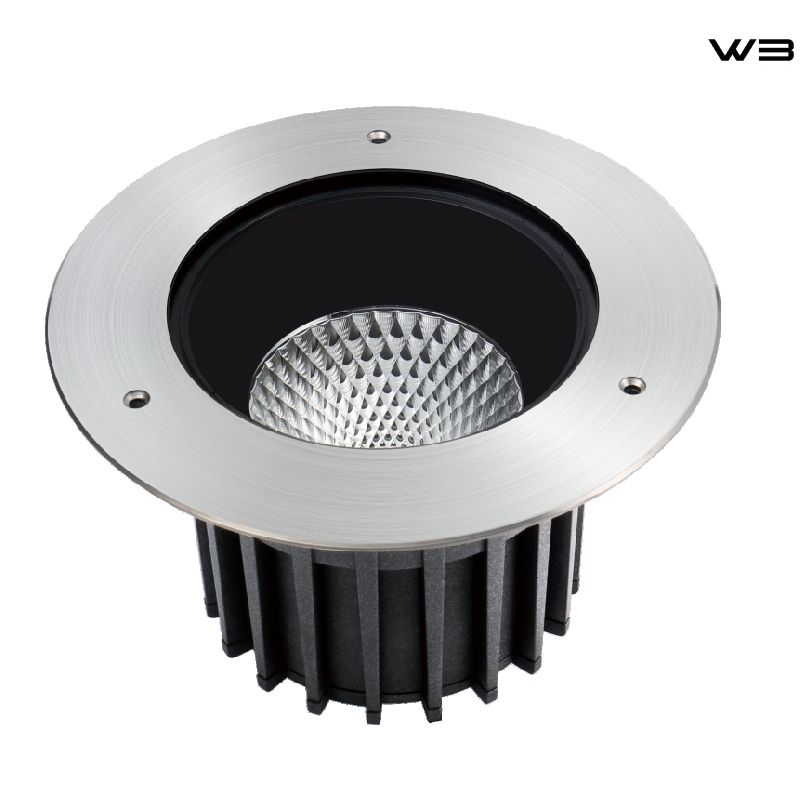

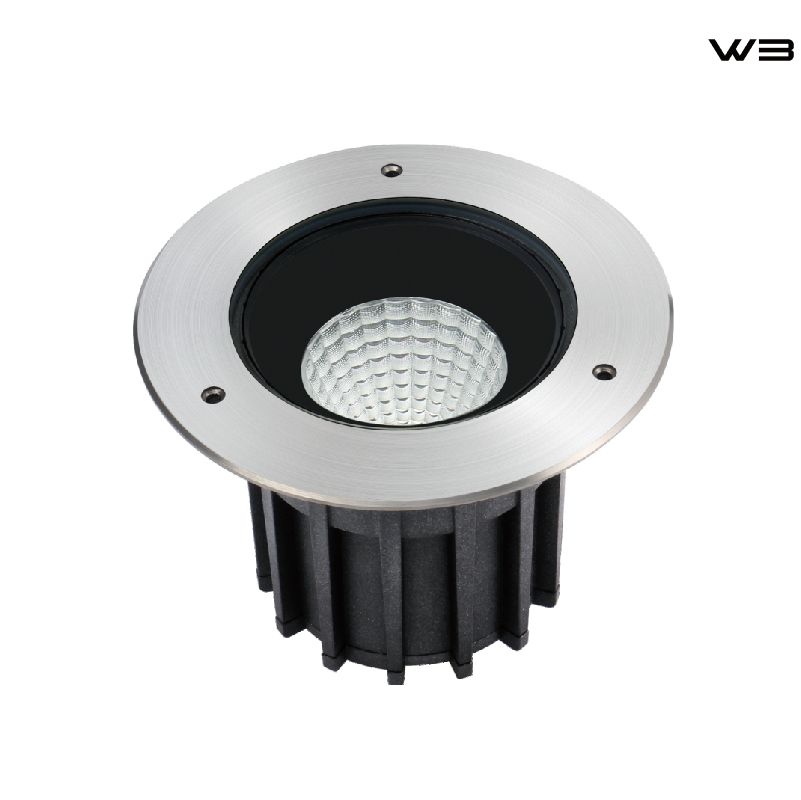

LED COB Recessed Light with Reflector
Professional Outdoor Lighting with Superior Optical Performance
The LED COB Recessed Light with Reflector is engineered to provide precise, powerful, and energy-efficient illumination for architectural and landscape lighting projects. By combining advanced COB LED technology with a high-efficiency reflector system, the fixture achieves superior beam control, reduced light loss, and exceptional visual performance.
Designed for permanent outdoor installations, the luminaire features a corrosion-resistant stainless steel trim ring, robust die-cast aluminum housing, and IP68 waterproof protection. The recessed installation allows the fixture to remain discreet during the day while creating dramatic lighting effects after dark.
Whether highlighting trees, building facades, sculptures, or landscape elements, this reflector-type inground light delivers professional-grade illumination with long-term reliability.
Product Attributes
High-Efficiency COB LED Technology
The integrated COB LED module provides concentrated light output, excellent color consistency, and improved thermal performance compared to conventional LED arrays.
Precision Reflector Optical System
The specially designed reflector maximizes light utilization and beam control, creating uniform illumination while minimizing glare and wasted light.
Architectural Recessed Design
Flush-mounted installation maintains a clean and sophisticated appearance while protecting the fixture from accidental impact.
IP68 Waterproof Protection
Engineered for outdoor environments, the fully sealed structure protects internal components from water, dust, and moisture intrusion.
Multiple Lighting Configurations
Available in various wattages, beam angles, color temperatures, and control options to suit different project requirements.

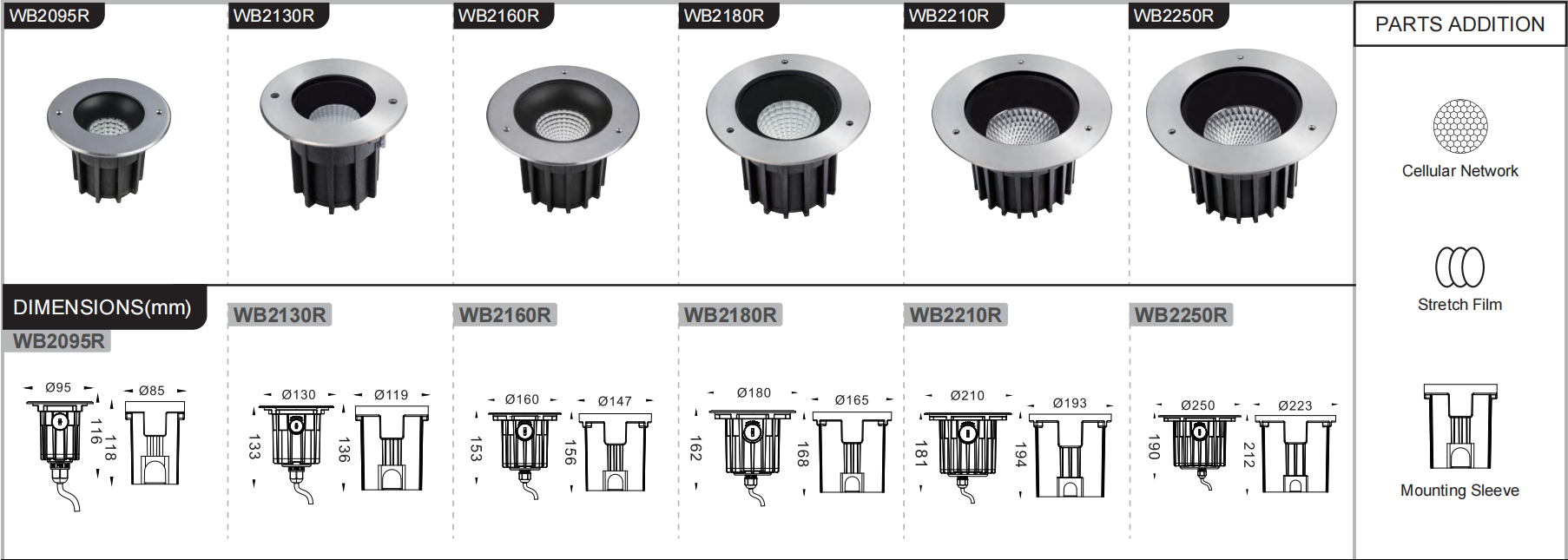

Technical Specifications
Item | Specification |
Product Type | LED COB Recessed Light with Reflector |
Installation Type | Recessed Inground |
Light Source | COB LED |
Optical System | Precision Reflector |
Cover Material | 316 Stainless Steel |
Housing Material | Die-Cast Aluminum |
Lens Material | Tempered Glass |
Protection Rating | IP68 |
Impact Resistance | IK10 |
Beam Angles | 10° / 15° / 24° / 36° / 60° |
Color Temperature | 2700K / 3000K / 4000K / 6000K |
Input Voltage | 24VDC / 100-240VAC |
Control Options | ON/OFF, TRIAC, DALI, DMX512 |
Surface Finish | Brushed Stainless Steel |
Operating Environment | Outdoor |
Lifetime | ≥50,000 Hours |
Warranty | 3–5 Years |

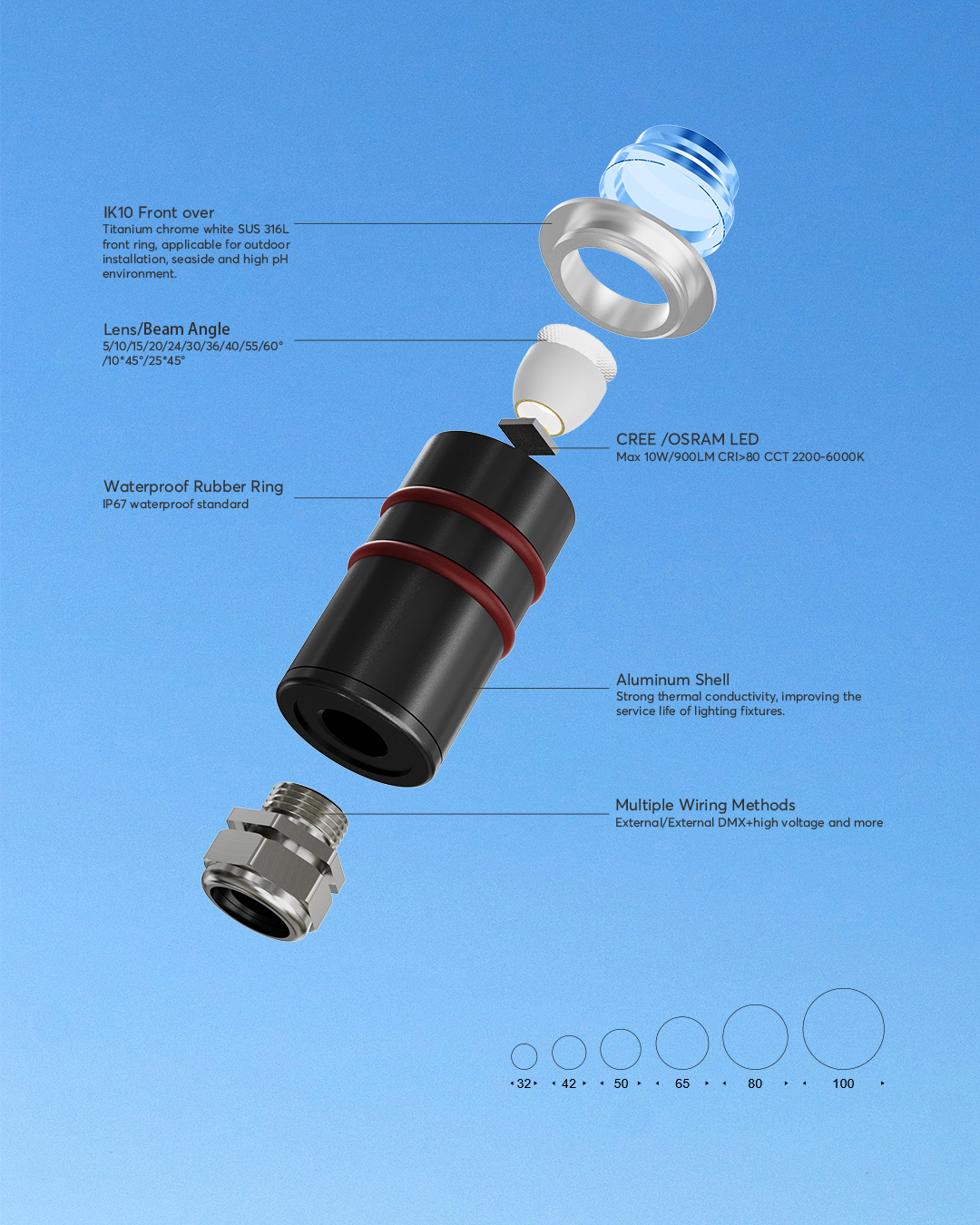

Product Construction
Stainless Steel Front Ring
Manufactured from premium 316 stainless steel for superior corrosion resistance and long-term outdoor durability.
COB LED Light Engine
A high-performance COB light source delivers consistent brightness, high efficiency, and long service life.
Precision Reflector Assembly
The aluminum reflector optimizes light distribution and enhances beam uniformity.
Tempered Glass Lens
High-transmittance tempered glass protects optical components while maintaining maximum light output.
Die-Cast Aluminum Housing
The heavy-duty aluminum body provides excellent structural strength and efficient heat dissipation.
Waterproof Sealing System
Professional-grade silicone gaskets and sealing technology ensure IP68 protection against harsh environmental conditions.
Application Scenarios
Architectural Façade Lighting
Highlight building walls, columns, entrances, and architectural features with precise upward illumination.

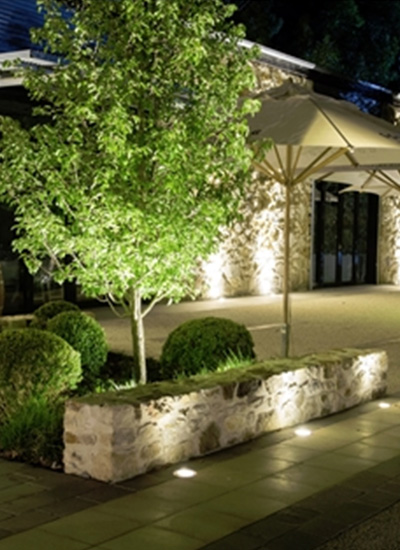

Landscape Tree Lighting

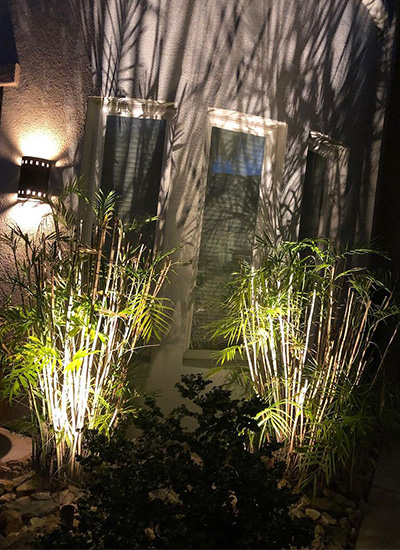

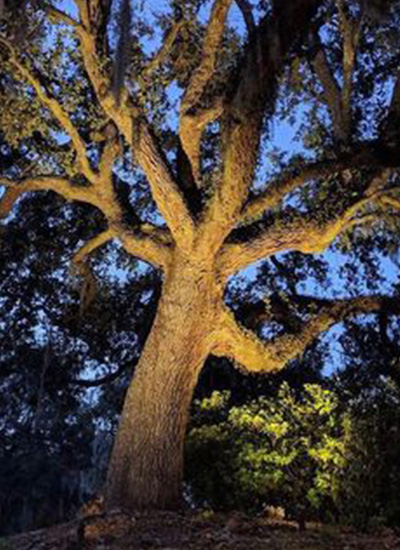

Create dramatic uplighting effects for trees, palms, and garden focal points.
Sculpture & Monument Lighting
Accentuate public art, monuments, and decorative installations with controlled beam projection.

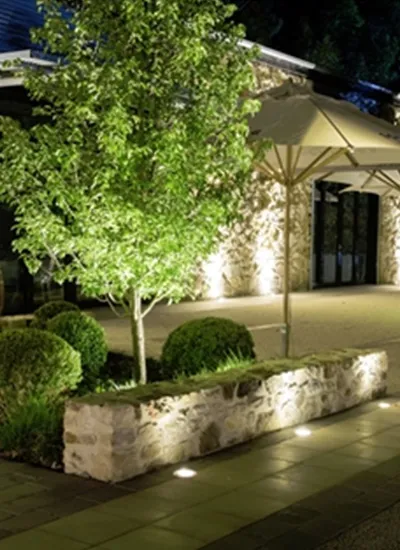

Commercial Plaza Lighting
Enhance public spaces, shopping centers, and urban landscapes with professional outdoor illumination.
Hotel & Resort Lighting
Deliver elegant nighttime lighting effects for luxury hospitality environments.
Residential Landscape Projects
Provide sophisticated garden and courtyard lighting with excellent visual impact.
Why Choose WB Lighting
WB Lighting specializes in high-performance outdoor architectural and landscape lighting solutions. Our reflector-based inground luminaires combine advanced optical engineering, premium materials, and professional waterproof technology to deliver outstanding performance in commercial, hospitality, residential, and public projects.
The LED COB Recessed Light with Reflector provides superior beam control, enhanced efficiency, and exceptional durability, making it the preferred choice for architects, lighting designers, contractors, and project developers worldwide.
