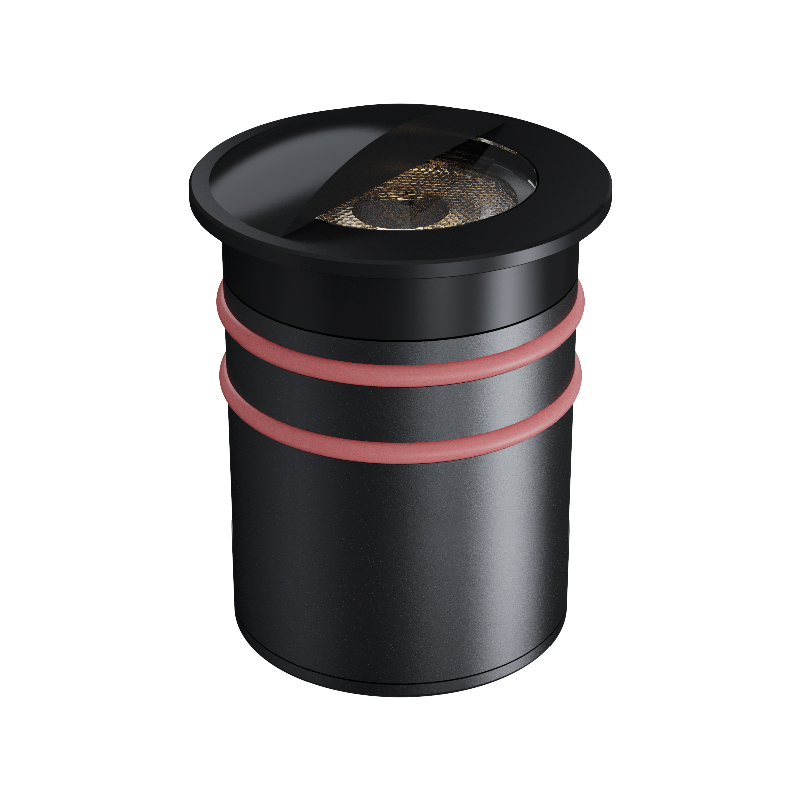

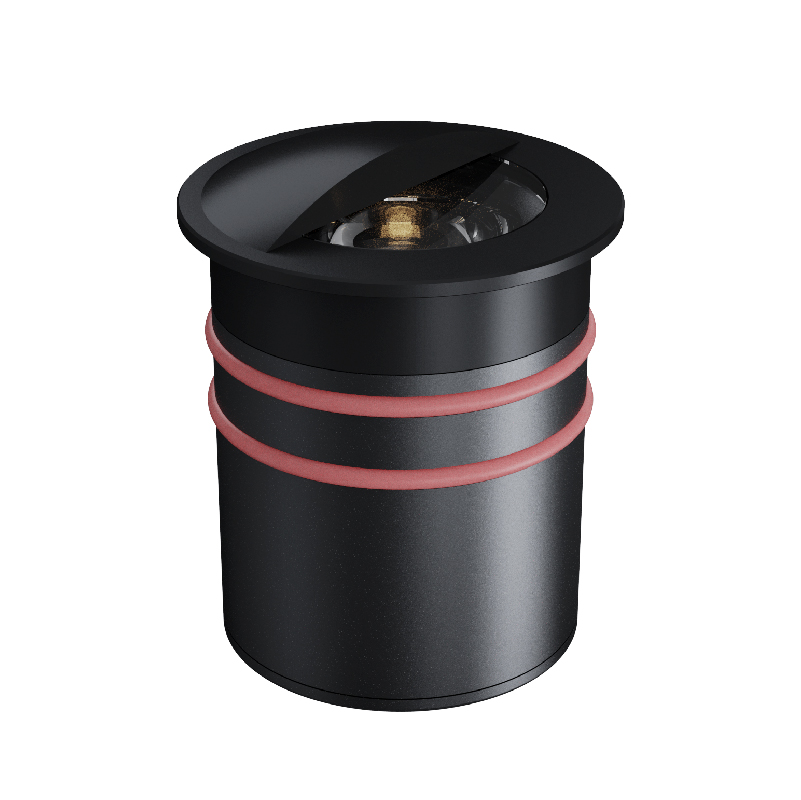

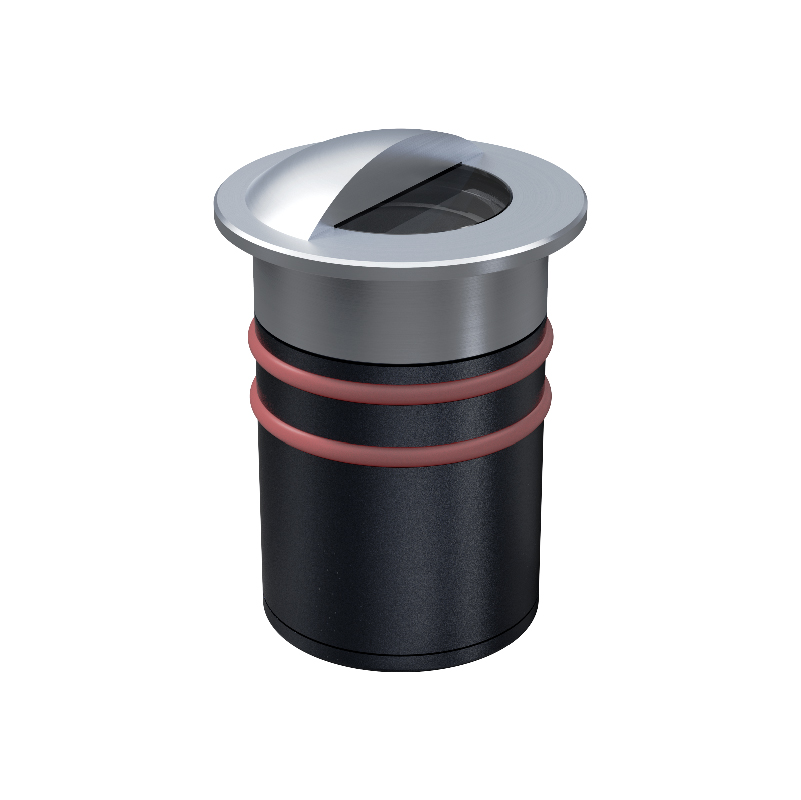

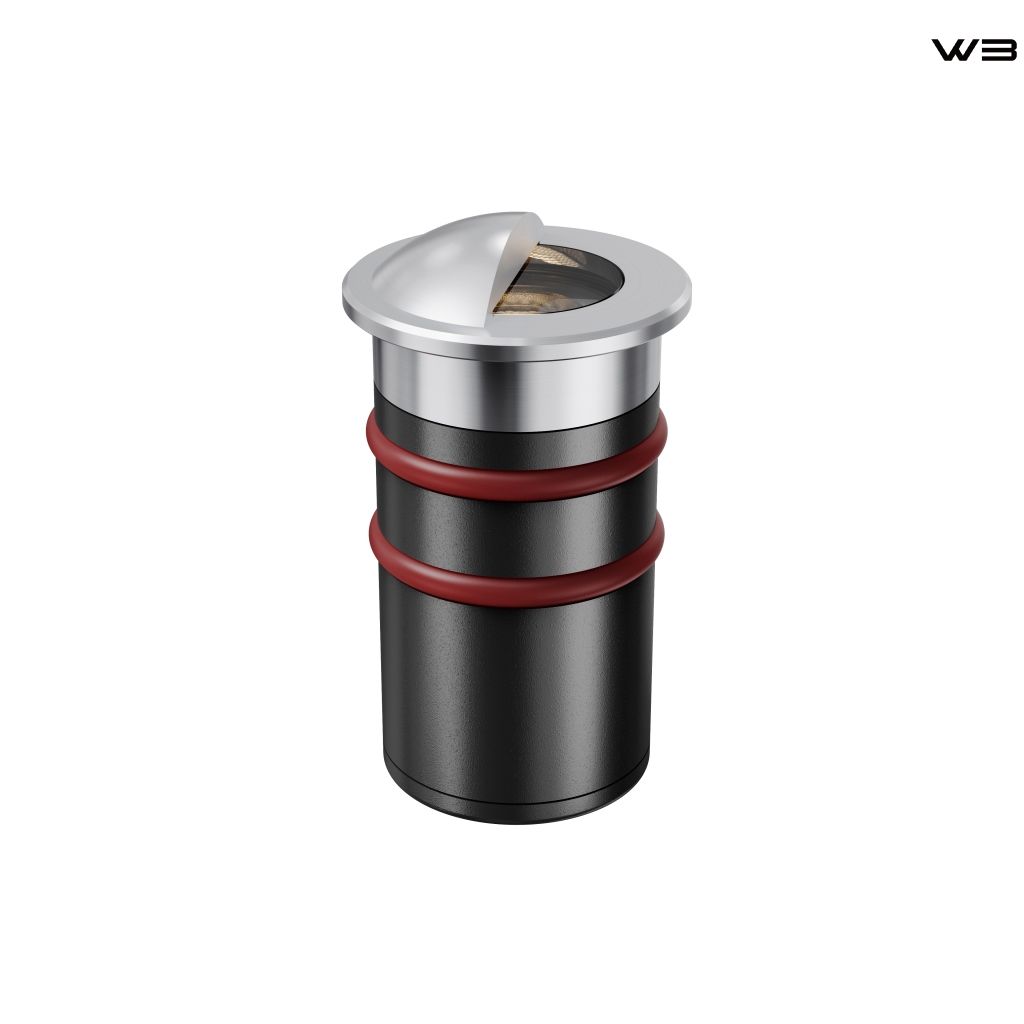

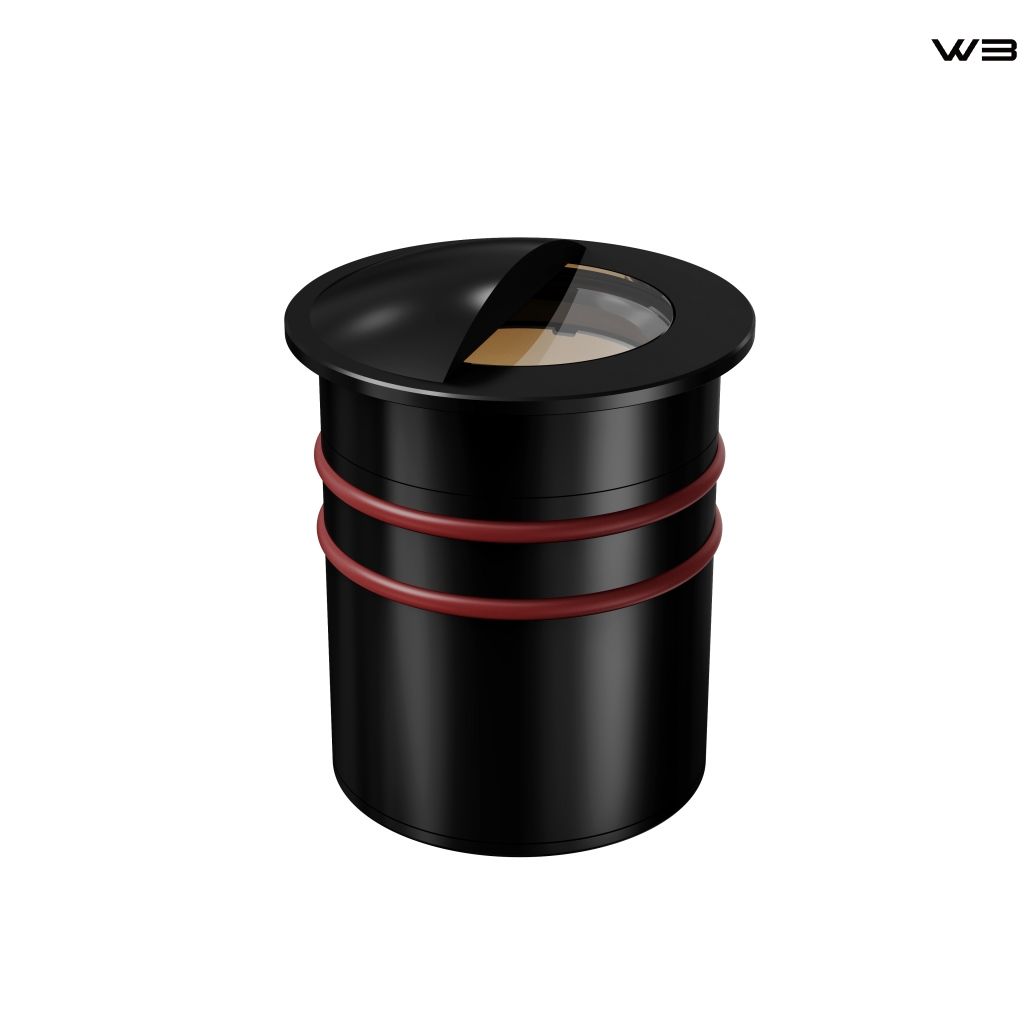

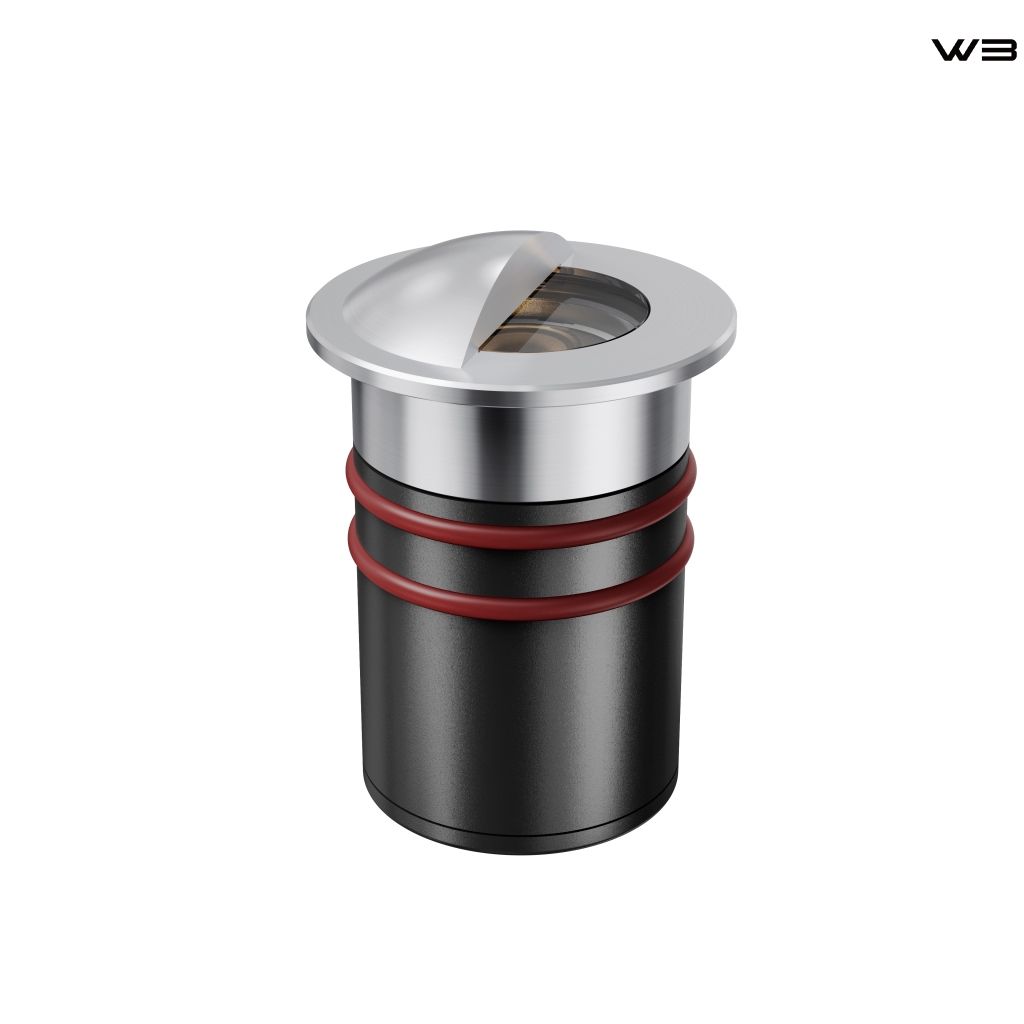

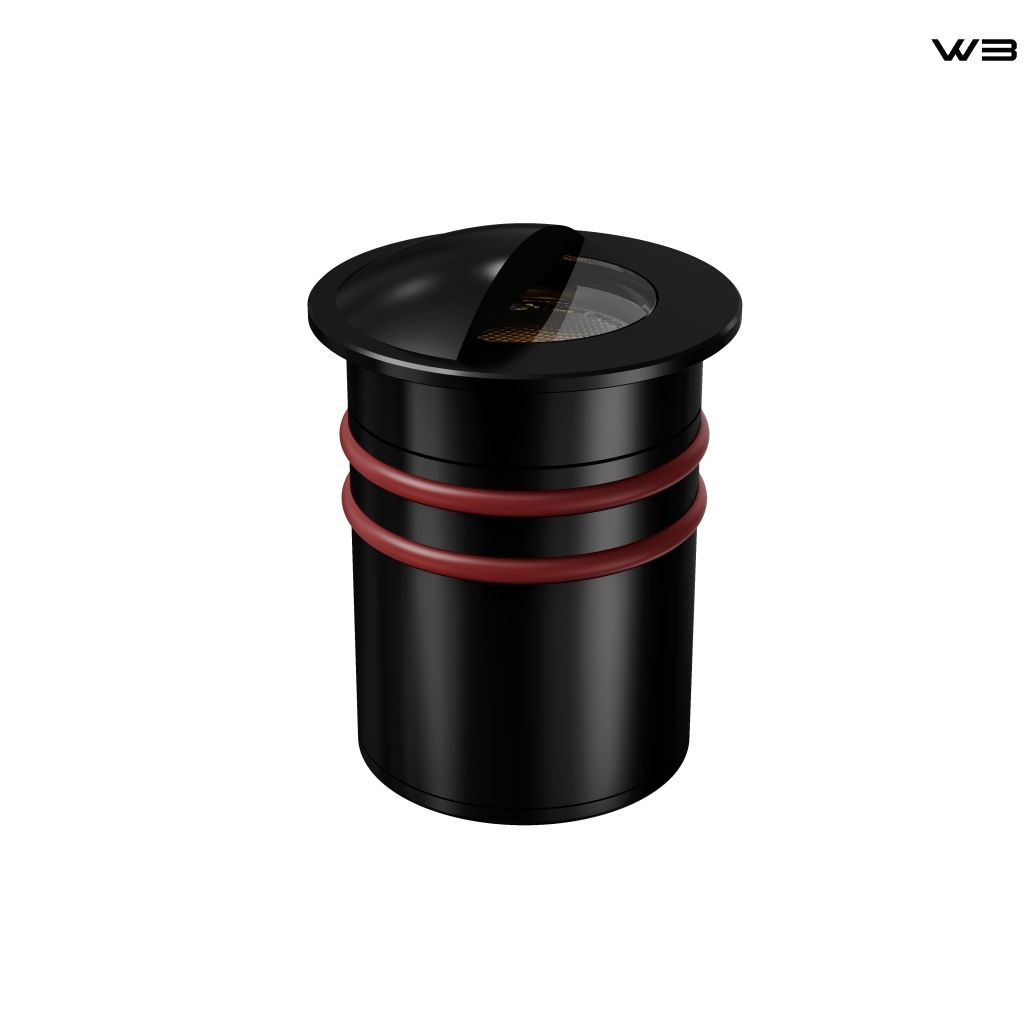

Series 2 Inground Light – Half Covered
Discover Elegant, High-Performance Landscape Lighting
The Series 2 Inground Light – Half Covered represents the perfect balance between powerful illumination and visual comfort. Featuring a distinctive half-covered design, these fixtures direct light precisely where needed while reducing upward glare and protecting the LED source. Engineered for demanding outdoor applications, the Series 2 combines premium CREE LEDs with robust construction to deliver exceptional durability, energy efficiency, and stunning lighting effects.
Key Features

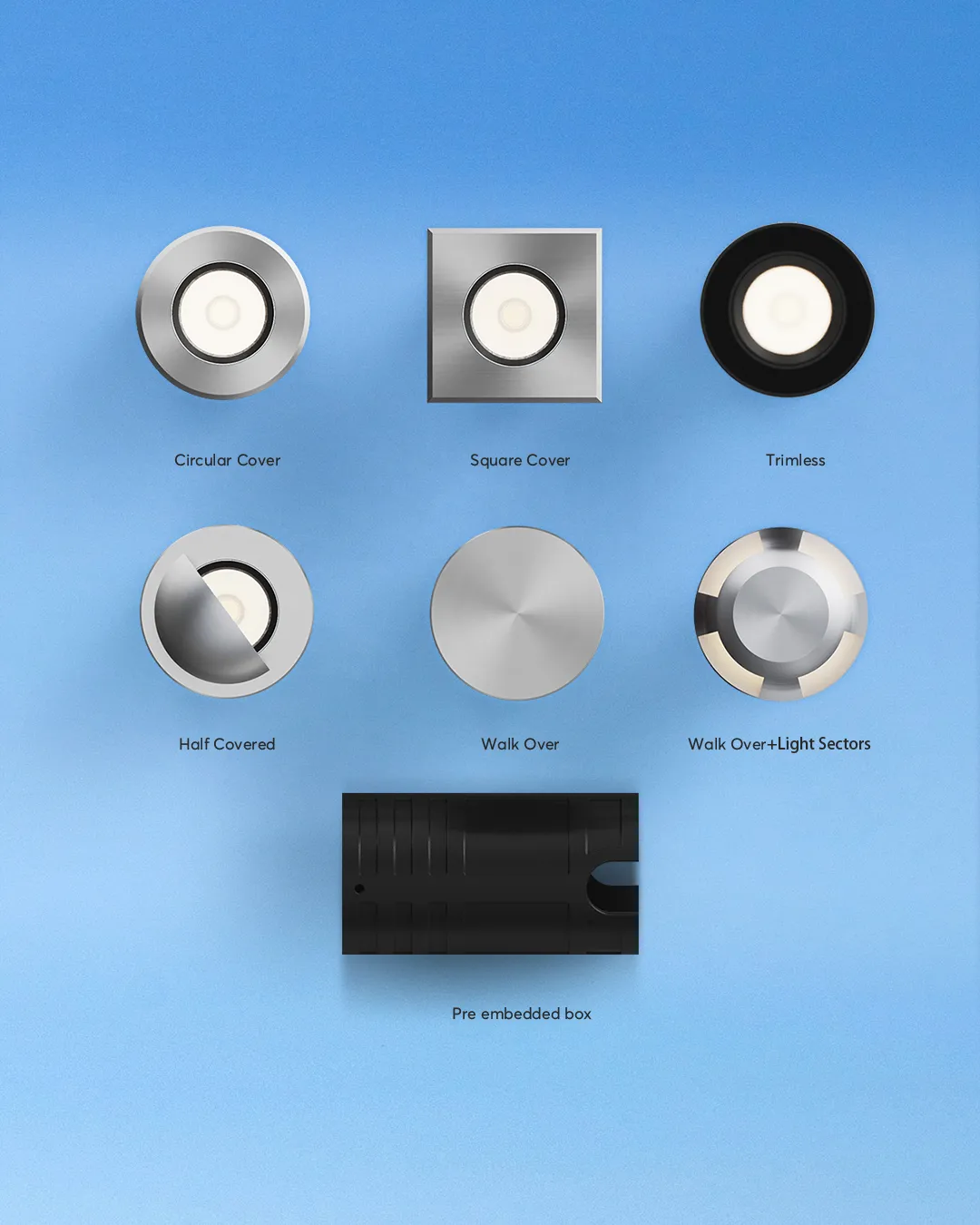

Half-Covered Design: Reduces glare and protects the light source
Premium CREE LEDs: Excellent color rendering (CRI ≥80, optional ≥90) with 2200K–6000K CCT range
Multiple Sizes & Powers: From compact 2W to powerful 15W models
Robust Construction: Powder-coated dark gray or black finish, IP-rated for wet locations
Versatile Installation: Suitable for concrete pours, deck mounting, and ground embedding
Smart Control Ready: DALI, 0-10V, Triac, and PWM compatible on select models
Easy Maintenance: Removable components and accessible drivers
Technical Specifications
| Parameter | 2G32R | 2G42R | 2G50R | 2G65R | 2G80R | 2G100R |
| Power | 1×2W | 1×4W | 1×4.5W | 1×6.5W | 1×10W | 1×15W |
| Luminous Flux | 120LM | 340LM | 454LM | 720LM | 900LM | 1300LM |
| Diameter | Ø32mm | Ø42mm | Ø50mm | Ø65mm | Ø80mm | Ø100mm |
| Beam Angle | 5°~45° | 15°/24°/36°/55° | 15°/24°/36°/55° | 15°/24°/36°/55° | 15°/24°/36°/55° | 15°/24°/36°/55° |
| Input Voltage | 12/24VDC | 12/24VDC | 220-240VAC | 220-240VAC | 220-240VAC | 220-240VAC |
| Control Option | - | Triac+10V/DALI/PWM | - | Triac | 0-10V | DALI |
| LED Source | CREE XPE/OSRAM | CREE 1304 | CREE 1304 | CREE 1512 | CREE 1512 | CREE 1512 |
| CRI | ≥80 (≥90 opt.) | ≥80 (≥90 opt.) | ≥80 (≥90 opt.) | ≥80 (≥90 opt.) | ≥80 (≥90 opt.) | ≥80 (≥90 opt.) |
| Material & Finish | Powder coated dark gray/black | Same | Same | Same | Same | Same |
| Cable | 0.5M H05RN-F | 0.5M H05RN-F | 0.5M H05RN-F | 0.5M H05RN-F | 0.5M H05RN-F | 0.5M H05RN-F |
Product Principle & Technology

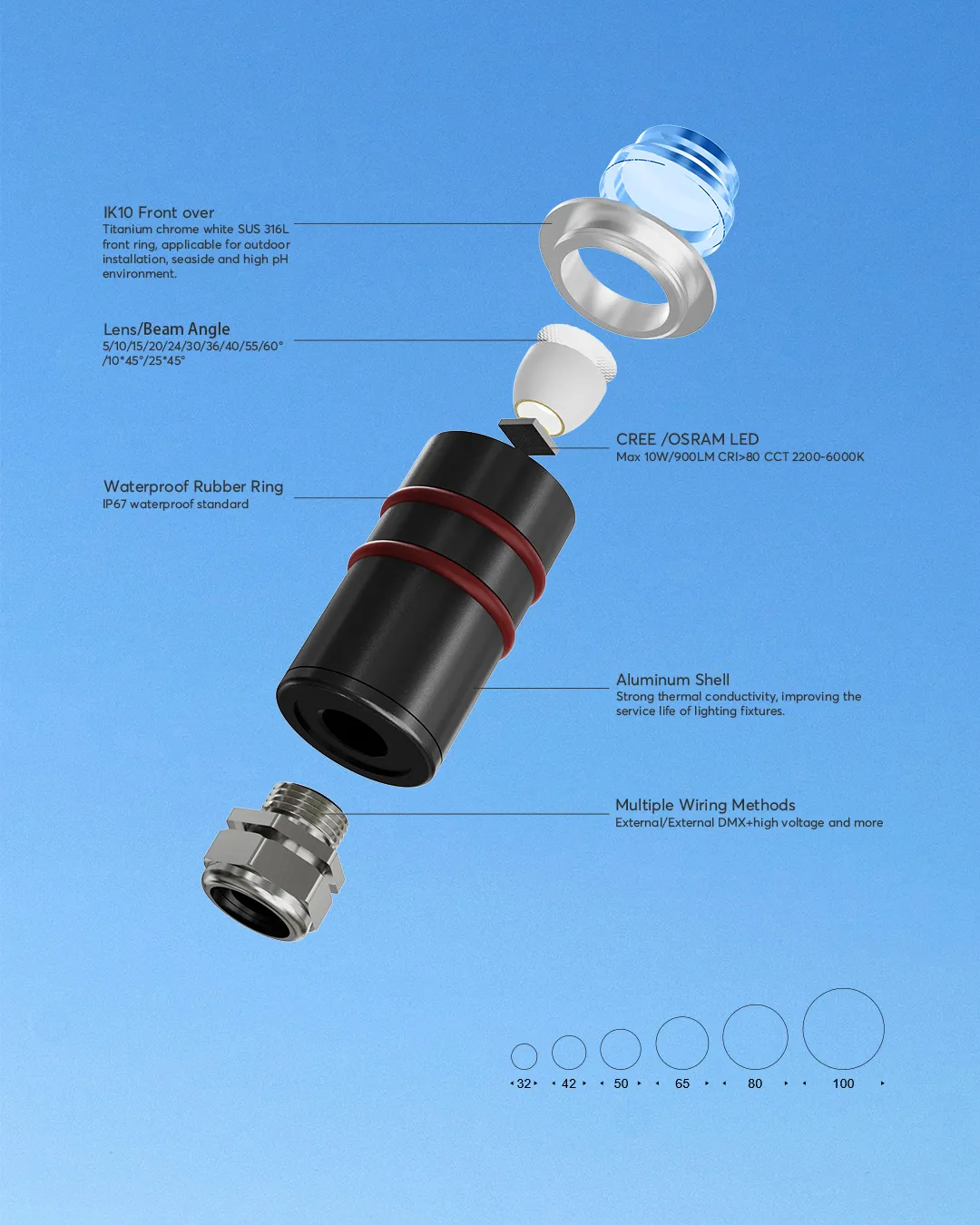

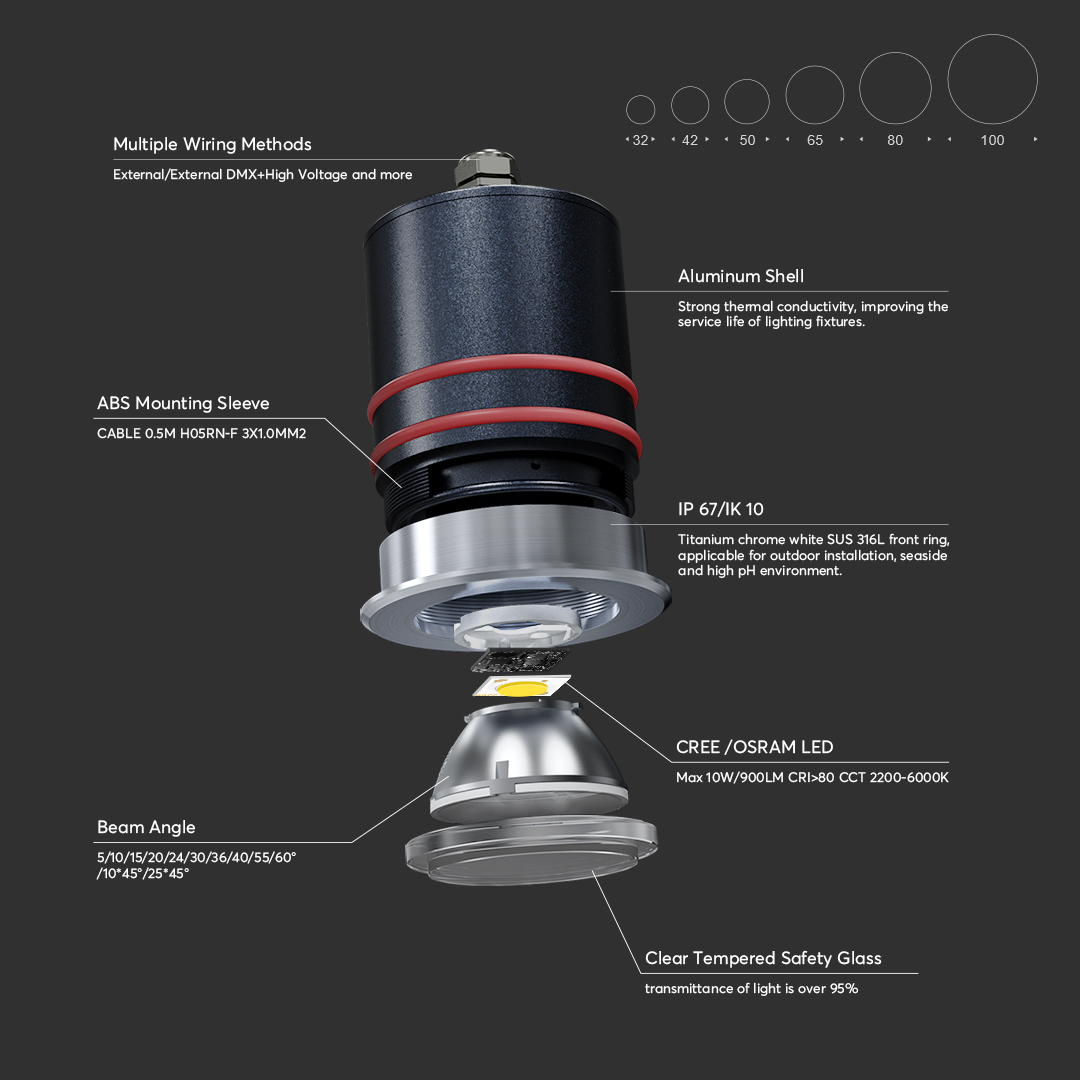

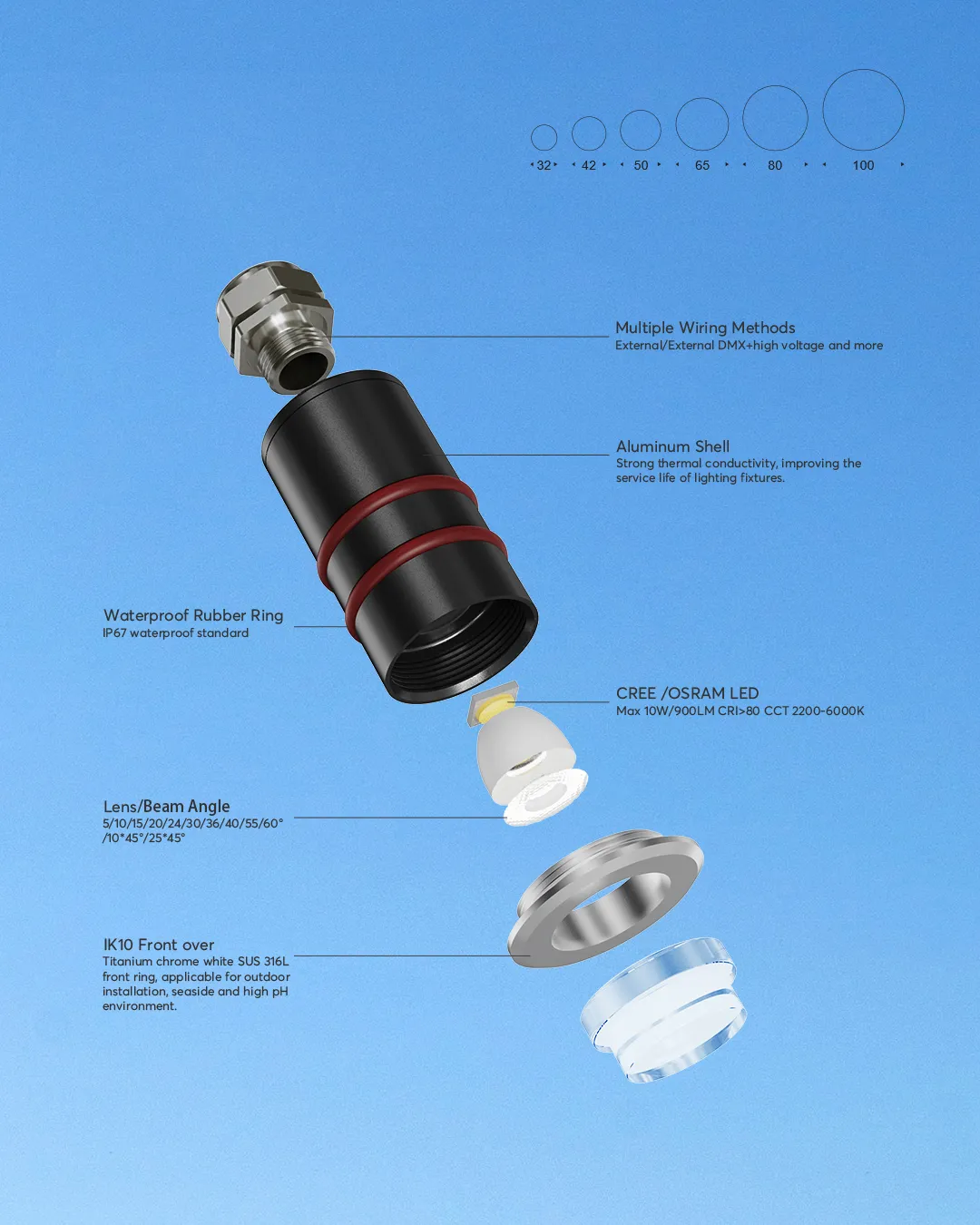

These inground uplights utilize high-efficiency CREE LEDs (XPE / 1304 / 1512 series) paired with precision optics offering multiple beam angle options (5°–55°). The half-covered top shield minimizes direct view of the light source, significantly reducing glare while maintaining strong directional output. Advanced thermal management ensures stable performance and long lifespan, even when fully embedded in ground or concrete. Multiple control options including Triac, DALI, 0-10V, and PWM allow seamless integration with smart lighting systems.
Application Scenarios
Architectural Landscapes: Highlight trees, sculptures, and building facades
Pathway & Walkway Lighting: Create safe, elegant illumination for gardens and promenades
Deck & Patio Lighting: Flush installation provides sophisticated ambient lighting
Water Features: Perfect for fountain and pool perimeter lighting (with proper drainage)
Commercial Spaces: Hotels, resorts, retail plazas, and public squares
Urban Design: Modern streetscape and plaza enhancement
Project Case Examples
Luxury villa garden pathways with warm 2700K lighting creating a welcoming atmosphere
High-end hotel entrance featuring 2G80R and 2G100R models highlighting palm trees and water features
Modern rooftop terrace with synchronized DALI-controlled lighting scenes
Commercial plaza using narrow beam angles to dramatically accentuate architectural columns
Installation Notes
The Series 2 Inground Lights must be installed on level surfaces with proper drainage. A clean canister is recommended for concrete installations. All models require professional installation by a licensed electrician in accordance with local electrical standards.
Warranty: 3 years
Elevate your outdoor spaces with the precision, durability, and elegance of the Series 2 Half Covered Inground Light.
