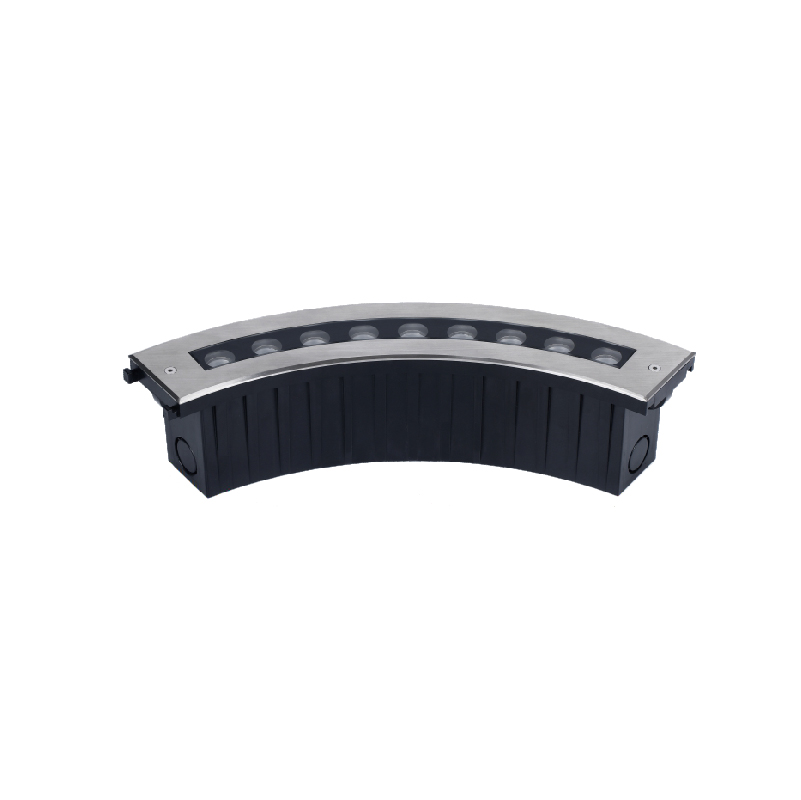

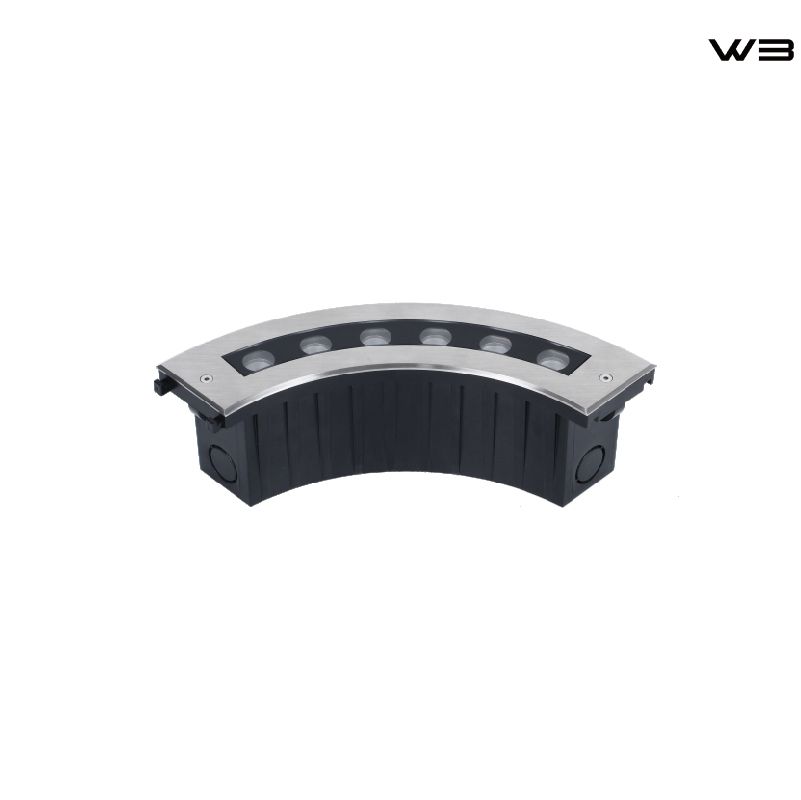

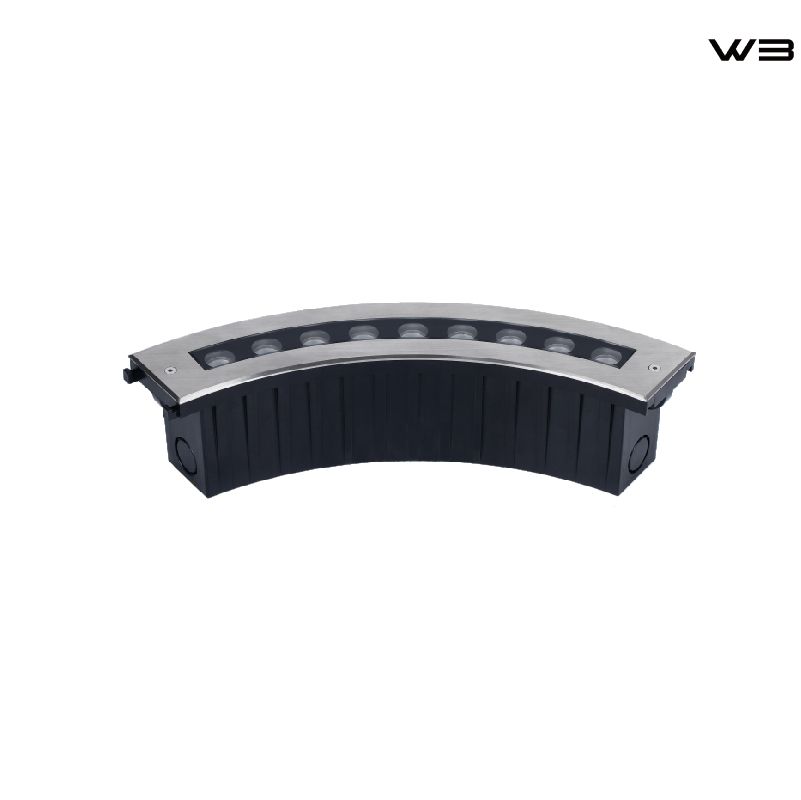

Curved LED In-Ground Post-Mounted Uplight
The WB2064L2 Series Curved LED Underground Pillar Lights are premium semi-circular in-ground uplights engineered to beautifully accentuate columns, pillars, and curved architectural features. With their seamless arc design, these lights create dramatic uplighting effects while remaining completely flush with the ground surface for a clean, modern aesthetic.
Ideal for both residential and commercial outdoor spaces, the WB2064L2 combines high-performance illumination with exceptional durability, making it a top choice for landscape architects and lighting designers.
Product Features & Construction
Premium Materials: 316L marine-grade stainless steel front cover (3.0mm thick) with powder-coated die-cast aluminum housing for superior corrosion resistance.
High-Performance Optics: OSRAM LEDs available in Warm White to Cool White (2200K-6500K), RGB 3-in-1, and RGB 4-in-1 DMX512 versions. Multiple symmetric and asymmetric beam angles (5°–80°) provide precise light control.
Robust Build: Tempered glass lens, IK08 impact rating, and IP-rated waterproof connectors ensure long-term reliability in harsh outdoor environments.
Easy Installation: Designed for direct deck mounting or concrete slab installation with ABS mounting sleeve. Requires proper drainage underneath.
Smart Control Options: DMX512 compatible models for dynamic lighting scenes and synchronization.
Detailed Technical Specifications
| Model Variant | LED Configuration | Power | Luminous Flux | Input Voltage | Beam Angle Options | Power Cable |
| WB2064L2-0.302M | 6×2W OSRAM | 12.5W | 960LM | 24VDC / 220-240VAC | 5°/8°/10°/25°/40°/60°/80° + Asymmetric | H07RN-F / H05RN-F |
| WB2064L2-0.302M RGB | 6×2.5W RGB 3-in-1 | 15W | 435LM | 24VDC | 12°/25°/40°/60° + 45° | DMX512 compatible |
| WB2064L2-0.302M RGBW | 6×3.5W RGB 4-in-1 | 21W | 609LM | 24VDC | 12°/25°/40°/60° + 45° | DMX512 compatible |
| WB2064L2-0.369M | 9×2W OSRAM | 18W | 1380LM | 24VDC / 220-240VAC | 5°/8°/10°/25°/40°/60°/80° + Asymmetric | H07RN-F / H05RN-F |
| WB2064L2-0.369M RGB | 9×2.5W RGB 3-in-1 | 23W | 660LM | 24VDC | 12°/25°/40°/60° + 45° | DMX512 compatible |
| WB2064L2-0.369M RGBW | 9×3.5W RGB 4-in-1 | 32W | 928LM | 24VDC | 12°/25°/40°/60° + 45° | DMX512 compatible |
Key Advantages
Exceptional durability with 316L stainless steel that resists rust even in coastal environments.

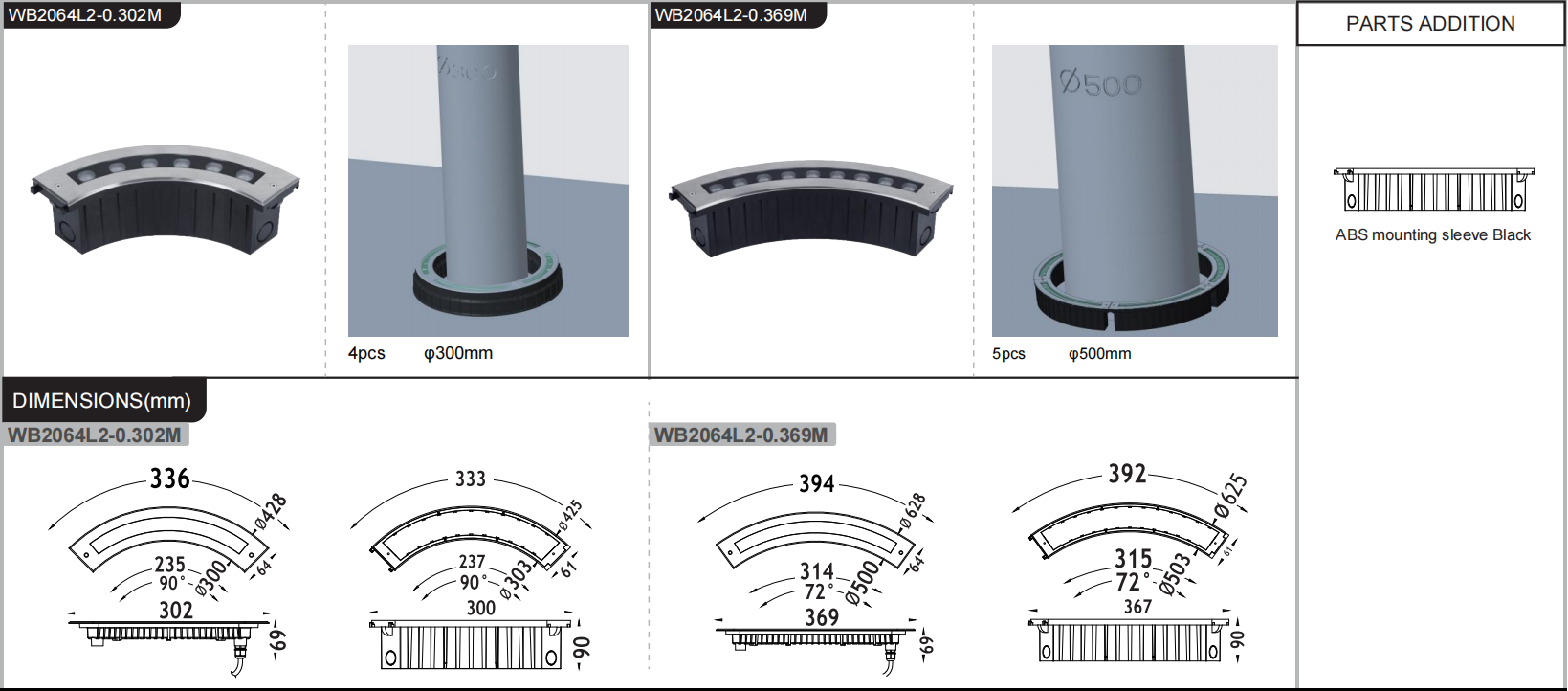

Flexible sizing (φ300mm & φ500mm) to fit various pillar diameters.
Low-voltage 24VDC options for enhanced safety and energy efficiency.
High luminous efficacy with excellent color rendering.
Maintenance-friendly design with easy access after installation.
3-year warranty backed by international certifications.
Applications
Column and pillar uplighting in hotels, resorts, and luxury villas
Architectural facade lighting for commercial buildings
Landscape lighting in parks, plazas, and waterfront areas
Retail and hospitality entrance features
Bridge and walkway accent lighting
Installation Case Examples:
This series is widely used in high-end hotel entrance pillars, creating a luxurious first impression at night, and in modern commercial plazas where curved architectural elements need harmonious illumination.
Additional Information:
Must be installed by a licensed electrician in accordance with local standards.
Requires clean tank/canister for concrete installations and proper drainage.
Surface must be perfectly level with mounting plane.
