12-LED RGB Underwater Fountain Light WB4182R
The WB4182R stands out as a capable underwater fountain light thanks to its 12 carefully arranged RGB 3-in-1 LED beads. This design produces strong, consistent illumination with excellent color blending, making it a practical choice for medium to large water features where brightness and coverage matter.
Build and Design

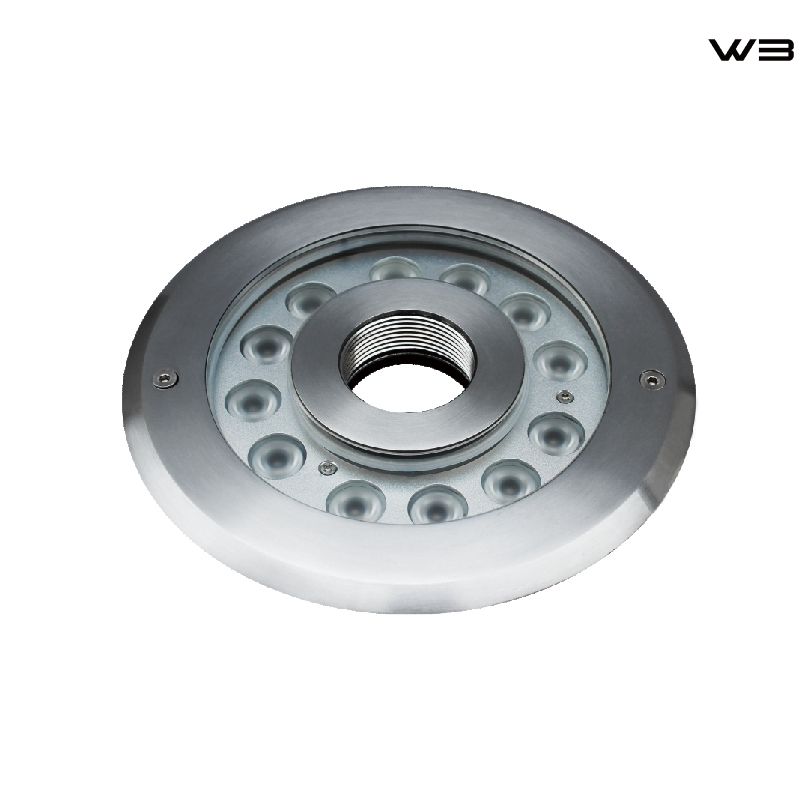

Housed in a solid 182mm stainless steel body with tempered glass protection, the light feels substantial and well-made. The 12 LED beads sit in a balanced layout that spreads light evenly without harsh spots. A central G1-1/2" threaded port combined with side mounting ears and clips gives installers multiple ways to fix it securely to decks, fountain bases, or pipes.
Detailed Specifications
Parameter | Specification |
Model | WB4182R Series |
LED Configuration | 12 x RGB 3-in-1 LEDs |
Power | 16W / 23W / 30W / 36W / 40W options |
Input Voltage | 24V DC |
Beam Angle | 15°–60° (varies by model) |

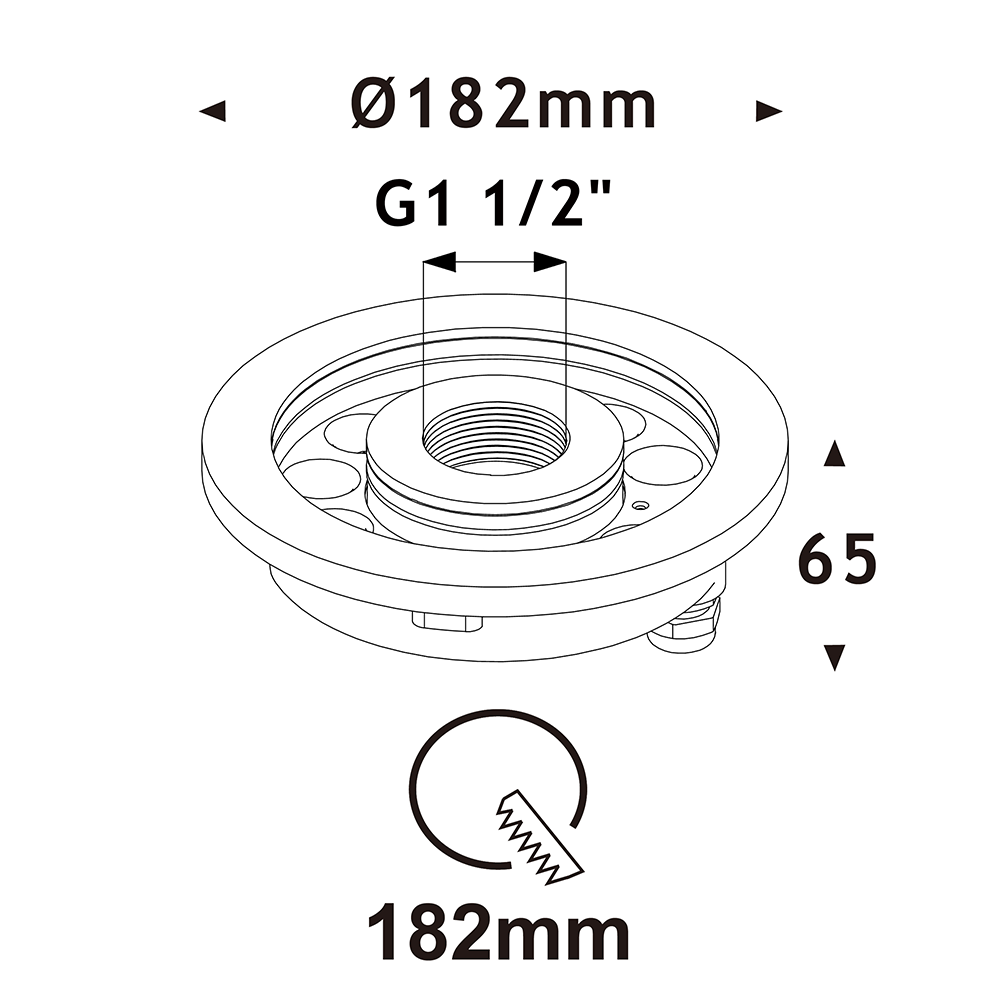

Diameter | 182mm |
Material | Stainless Steel + Tempered Glass |
IP Rating | IP68 Fully Submersible |
Mounting | G1-1/2" Thread + Mounting Clips |
Control Options | DMX / RGB Controller Compatible |
Lifespan | Approx. 50,000 hours |
Warranty | 3 Years |
Key Advantages
12 RGB 3-in-1 LED beads for richer color mixing and higher output
Available in several wattage versions (16W to 40W) to suit different applications
Full IP68 rating ensures it handles continuous underwater use
Low 24V DC voltage for safer operation around water
Stainless steel construction resists corrosion in pool and fountain environments
Flexible mounting options speed up installation on various surfaces
Typical Applications
This light is frequently used in:
Commercial plaza fountains and water displays
Resort and hotel swimming pool features
Large residential backyard fountains
Architectural water walls and cascades
Public landscape installations and theme venues
Contractors like its balance of power, durability, and straightforward setup for both new builds and retrofit projects.
Installation Overview
Best installed on a clean, level concrete surface or connected via the threaded nozzle. Good drainage underneath is important. Always use appropriate waterproof connectors and a correctly rated 24V DC power supply. We recommend professional installation to meet local codes.
Frequently Asked Questions
Why choose the 12-LED version?
The 12 beads provide better light spread, stronger output, and smoother color transitions compared to models with fewer LEDs, especially useful in larger or deeper water features.
Is it suitable for chlorinated pools and saltwater fountains?
Yes, the stainless steel and quality seals perform well in both. Regular maintenance and occasional rinsing help extend service life.
How many lights can run on one power supply?
It depends on total wattage, cable runs, and voltage drop. We’re happy to review your project layout and recommend the right driver configuration.
Do you offer customization for larger projects?
We can discuss custom cable lengths, specific beam angles, or branding for qualified distributors and contractors on volume orders.
What are the current stock and delivery times?
Common configurations are usually ready to ship within 2–4 weeks. Let us know your quantity and specs for a precise quote and timeline.
This WB4182R with its 12 LED beads offers a dependable, bright solution that many professionals turn to for quality fountain and pool lighting projects.
