RGB 3-in-1 LED Underwater Fountain Light WB4182R (9-LED Version)
The WB4182R is a solid, larger-format underwater light built for demanding fountain and pool projects. It uses nine carefully arranged high-power RGB 3-in-1 LED beads that work together to create rich, even color mixing and strong illumination across the water surface.
Main Features & Advantages
Nine built-in RGB 3-in-1 LED beads for powerful, uniform color output
Multiple power levels from 16W to 40W to match different water depths and effects
Excellent color mixing for smooth transitions and static colors
24V DC low-voltage operation for safety in wet environments
Full IP68 waterproof rating
Dual mounting system (threaded nozzle + clips) for secure installation
Corrosion-resistant stainless steel suitable for chlorinated and saltwater applications with proper care
Detailed Specifications
Parameter | Specification |
Model | WB4182R-09 / WB4182R-12 |
LED Type | 9 x RGB 3-in-1 High Power LEDs |
Power Options | 16W / 23W / 30W / 36W / 40W |
Input Voltage | 24V DC |
Beam Angle | 15°–60° (model dependent) |

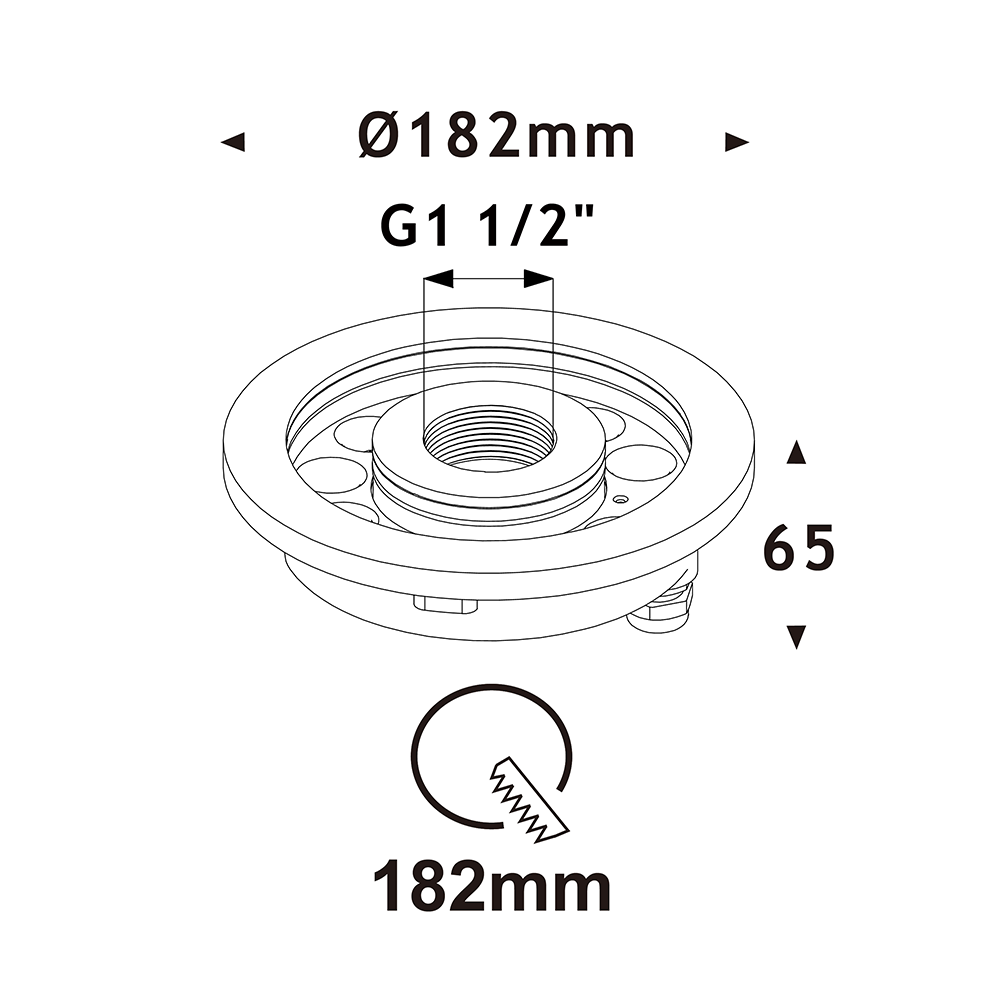

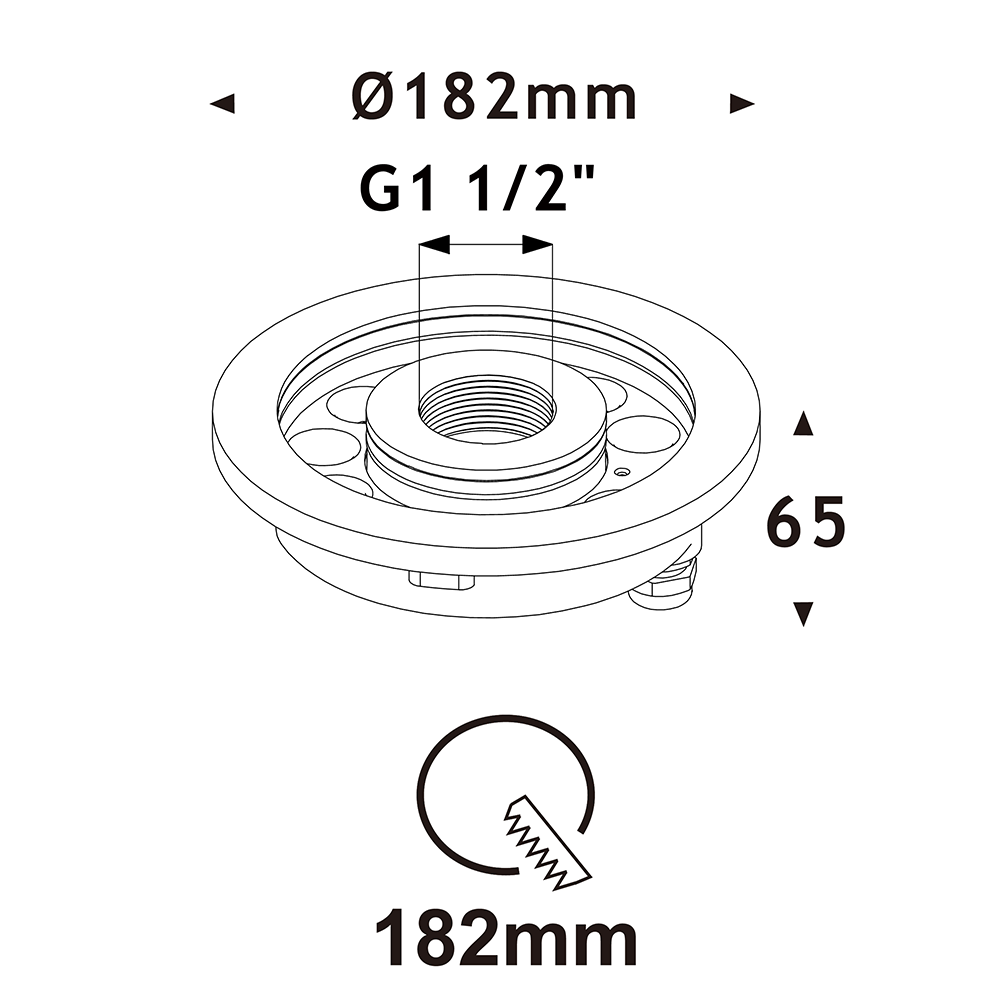

Diameter | 182mm |
Material | Stainless Steel Housing + Tempered Glass |
IP Rating | IP68 (fully submersible) |
Mounting | G1-1/2" Thread + Side Mounting Clips |
Cable | Pre-wired waterproof cable |
Control | Compatible with DMX / RGB controllers |
Working Temperature | -20°C to +40°C |
Lifespan | 50,000 hours (typical) |
Warranty | 3 years (refer to manual for details) |
Construction and Build Quality

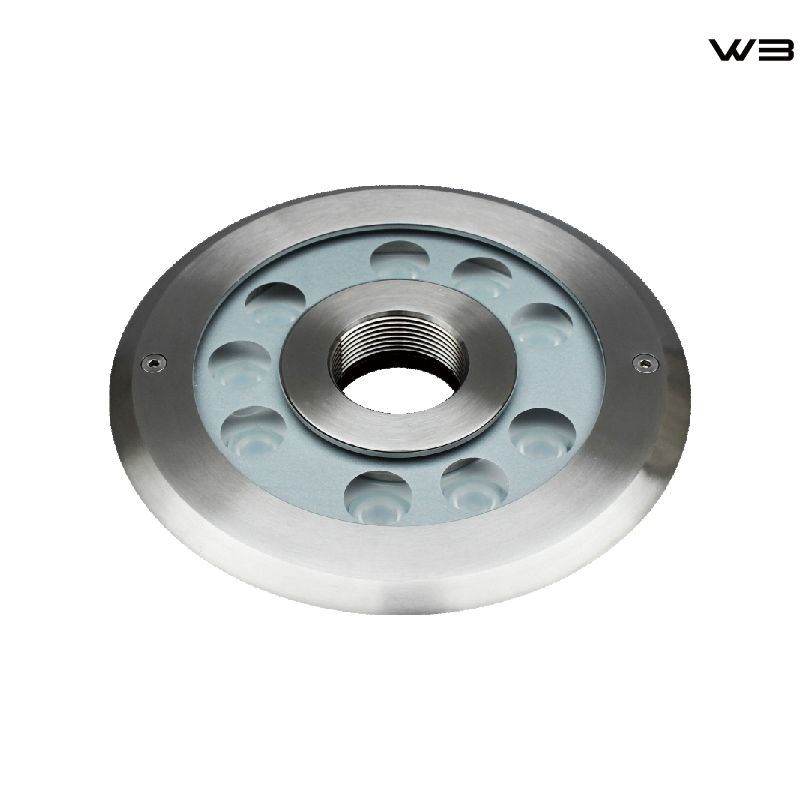

Made with a durable stainless steel body (182mm diameter) and thick tempered glass lens, this light is built to last underwater. The nine LED beads are positioned in a circular pattern inside for balanced light distribution without hot spots. It offers both G1-1/2" threaded mounting in the center and side mounting clips, giving installers flexible options. All seals are robust and designed for continuous submersion.
Where It’s Commonly Used
This light is popular in:
Large commercial and municipal fountains
Hotel resort pools and water features
Architectural cascades and water walls
High-end residential ponds and fountains
Theme parks and entertainment venues
Many contractors choose the WB4182R when they need more light output and better coverage than smaller models can provide.
Installation Notes
Install on a flat, level concrete surface or via the G1-1/2" threaded connection. Ensure good drainage underneath and use proper waterproof low-voltage connectors. Professional electrical installation is recommended.
Frequently Asked Questions (B2B)
What does the 9-LED configuration bring compared to smaller lights?
The nine RGB 3-in-1 LEDs provide stronger output, better color uniformity, and wider coverage, making it ideal for larger fountains and deeper water features.
Is this model suitable for saltwater fountains?
Yes, the stainless steel construction works well in saltwater environments when maintained properly — periodic rinsing and seal checks are recommended.
How do I determine the right power version for my project?
It depends on water depth, desired brightness, and effect. Our team can review your drawings and suggest the most suitable wattage.
Can I order these with custom cable lengths or private labeling?
Yes, for bulk orders we support custom cable lengths and OEM branding. Please contact us with your requirements.
What is the typical lead time and MOQ?
Standard configurations usually ship within 2–4 weeks. MOQ generally starts from 20–30 pieces depending on the exact model. We can provide exact details once we know your needs.
This version with nine LED beads gives installers a dependable, higher-output solution that performs consistently in real-world commercial and residential installations.
