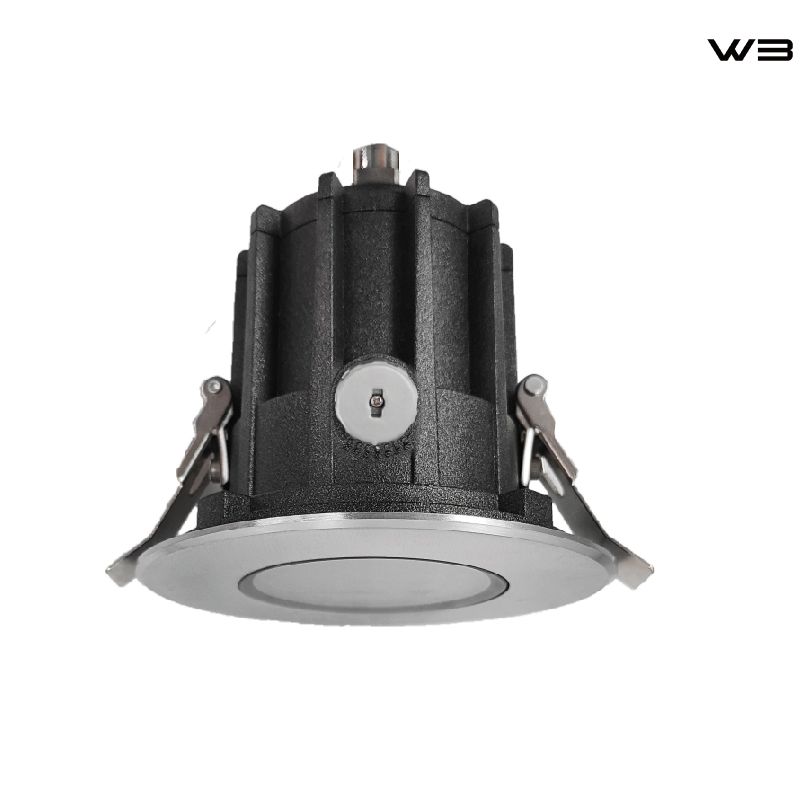

WB7160 Removable-Casing Waterproof Outdoor Ceiling Light
Professional Waterproof Ceiling Lighting for Long-Term Outdoor Performance
The WB7160R is a premium recessed waterproof outdoor ceiling light designed for architectural and landscape lighting projects that require outstanding durability, stable illumination, and simplified maintenance.
Its innovative removable-casing structure allows the lighting module to be serviced or replaced without dismantling the entire fixture, significantly reducing maintenance costs and downtime. Combined with its robust die-cast aluminum housing and IP67 waterproof protection, the WB7160R performs reliably in rain, humidity, dust, and other demanding outdoor environments.
Designed for both commercial and residential projects, this luminaire offers excellent heat dissipation, corrosion resistance, and long operational life while maintaining a clean architectural appearance.
Product Attributes
The WB7160R has been engineered to satisfy the requirements of modern architectural lighting projects where appearance, durability, and maintenance efficiency are equally important. Its recessed installation creates a seamless visual effect that blends naturally into ceilings while minimizing glare and preserving the architectural design.
The removable-casing structure distinguishes this fixture from conventional recessed ceiling lights. Maintenance personnel can access the internal lighting module without removing the complete fixture from the ceiling, making routine servicing faster and significantly reducing long-term maintenance expenses.
Designed specifically for outdoor applications, the fixture incorporates an IP67 waterproof construction that effectively prevents dust and water ingress. Combined with corrosion-resistant surface treatment and premium sealing materials, the luminaire maintains consistent performance even after years of exposure to rain, humidity, and changing temperatures.
The robust aluminum housing also provides excellent thermal conductivity, allowing heat generated by the LED source to dissipate efficiently. This helps maintain stable luminous output, reduces thermal stress on electronic components, and contributes to a service life exceeding 50,000 hours.
Technical Specifications
Item | Specification |
Model | WB7160R |
Product Name | Removable-Casing Waterproof Outdoor Ceiling Light |
Installation | Recessed Ceiling Mounted |

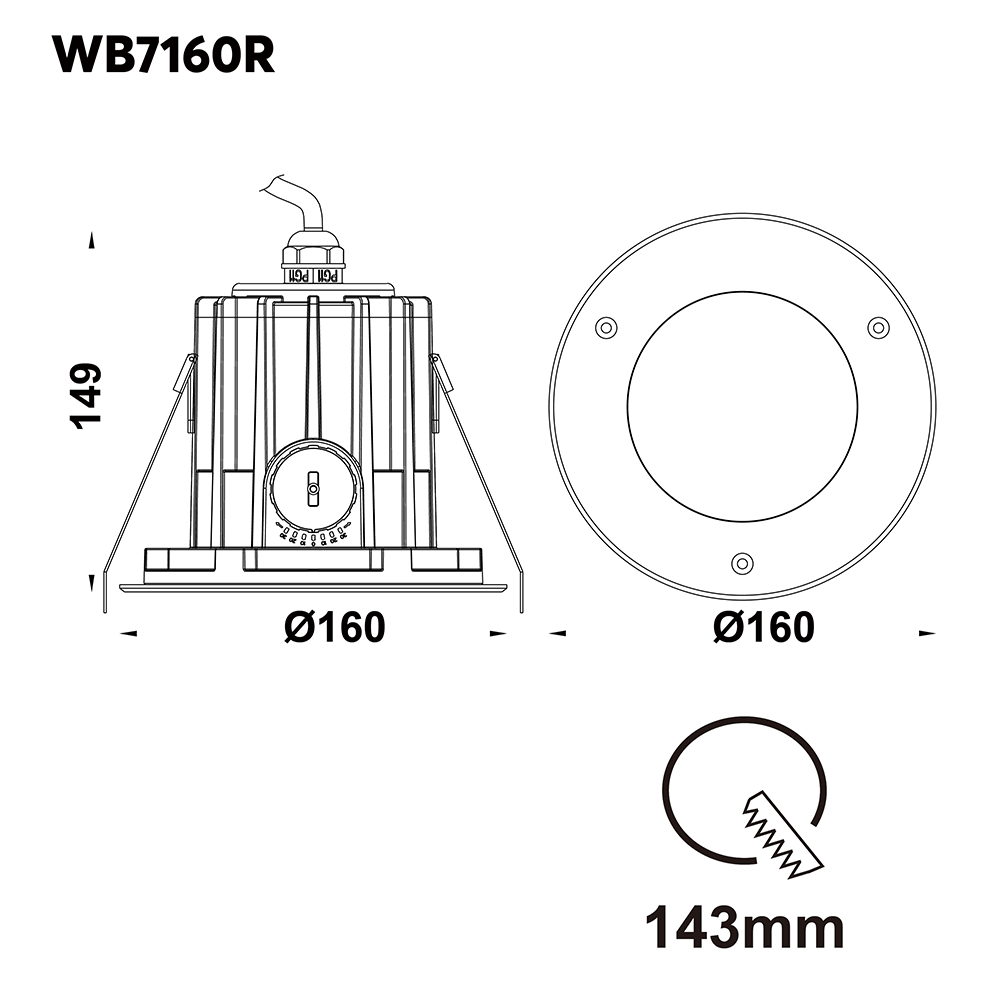

Fixture Diameter | Ø160 mm |
Fixture Height | 149 mm |
Cutout Size | Ø143 mm |
Housing Material | Die-cast Aluminum |
Front Cover | Tempered Glass |
Waterproof Rating | IP67 |
Impact Rating | IK08 / IK10 (Optional according to final specification) |
Light Source | High-Efficiency LED |
Power | 10W / 15W / 20W (Optional) |
Input Voltage | DC24V / AC100–240V (Optional) |
Color Temperature | 2700K / 3000K / 4000K / 5000K / RGBW (Optional) |
Beam Angle | 15° / 24° / 36° / 60° (Optional) |
Surface Finish | Outdoor Powder Coating |
Operating Temperature | -20°C ~ +50°C (Typical) |
Lifespan | ≥50,000 Hours |
Product Construction
The fixture consists of several precision-engineered components designed for durability and performance.
Die-Cast Aluminum Housing
Provides structural strength while ensuring efficient thermal management.
Tempered Glass Lens
High-transmittance tempered glass protects the optical system against impact and weather.
Waterproof Sealing System
Multiple silicone sealing rings maintain the IP67 waterproof rating throughout the fixture's service life.
Removable Inner Module
The removable lighting module allows quick maintenance without removing the embedded housing.
Stainless Steel Fasteners
Corrosion-resistant screws ensure reliable long-term installation outdoors.
Product Advantages
Easy Maintenance
The removable casing minimizes maintenance time and avoids unnecessary dismantling of the ceiling structure.
Long Service Life
Optimized thermal management and premium materials help maximize LED lifetime.
Reliable Outdoor Performance
Designed specifically for outdoor architectural applications where waterproof protection is critical.
Elegant Architectural Appearance
The recessed installation provides a clean, minimalist finish suitable for modern architectural designs.
Low Total Cost of Ownership
Reduced maintenance labor and longer product lifespan contribute to lower operating costs over the lifetime of the installation.
Applications
The WB7160R has been designed for a wide variety of architectural and commercial outdoor lighting applications where waterproof performance and long-term reliability are essential.
In luxury residential developments, it provides elegant illumination beneath balconies, terraces, and entrance canopies while complementing contemporary architectural styles. For hotels and resorts, the fixture creates welcoming lighting around drop-off areas, covered walkways, and outdoor reception spaces, enhancing both safety and visual appeal.
Commercial buildings and shopping centers benefit from its reliable performance in covered pedestrian areas, where frequent maintenance can be carried out quickly thanks to the removable housing design. Public infrastructure projects such as underground passages, transportation terminals, museums, and educational campuses also benefit from its durability, weather resistance, and long operational life.
Its combination of architectural aesthetics, waterproof construction, and simplified servicing makes the WB7160R an ideal lighting solution for virtually any outdoor ceiling installation requiring dependable illumination under demanding environmental conditions.
Why Choose WB7160R?
Innovative removable-casing design for easier maintenance
IP67 waterproof protection for harsh outdoor environments
Premium die-cast aluminum construction
Efficient heat dissipation for longer LED lifespan
Elegant recessed architectural appearance
Low maintenance and operating costs
Suitable for commercial, hospitality, residential, and public projects
OEM & ODM customization available
