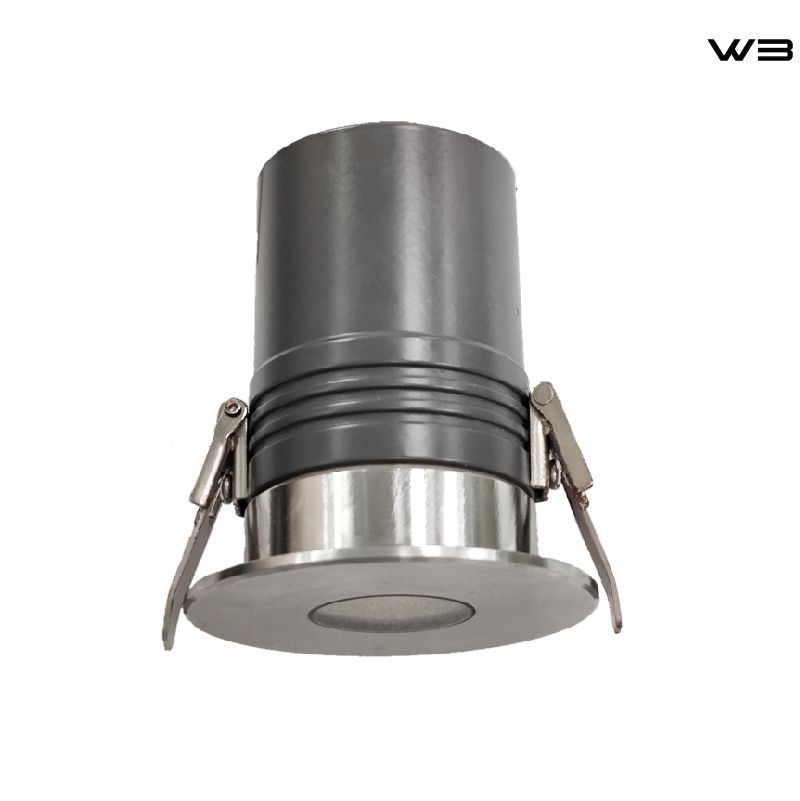

WB7070 IP67 Recessed Impact-Resistant Ceiling Light
This small but tough recessed light is designed for places where ordinary fixtures won’t last. Whether you’re lighting up a waterfront deck, a modern building facade, or a high-traffic commercial walkway, the WB7070R gives you consistent performance in wet, dusty, or impact-prone environments.
Built to Handle Real-World Conditions
The WB7070R features a robust die-cast aluminum housing with powder coating for corrosion resistance and a thick tempered glass front that protects the LEDs while allowing clear light output. Its IP67 rating means it can be fully submerged temporarily and handles powerful jets of water without issue. The recessed design keeps the light flush with the surface, reducing visual clutter and protecting it from accidental knocks.
Technical Specifications
Item | Specification |
Model | WB7070R |
Power | 5.9W – 7.9W (model dependent) |
LED Type | High-efficiency SMD LEDs |
Color Options | 2700K-6500K single color / RGB |
Luminous Flux | 170-220 lm (typical) |
Beam Angle | Approx. 30-60° |
Input Voltage | 24VDC |
IP Rating | IP67 |
Housing Material | Die-cast aluminum, powder coated |
Cover | Tempered glass |

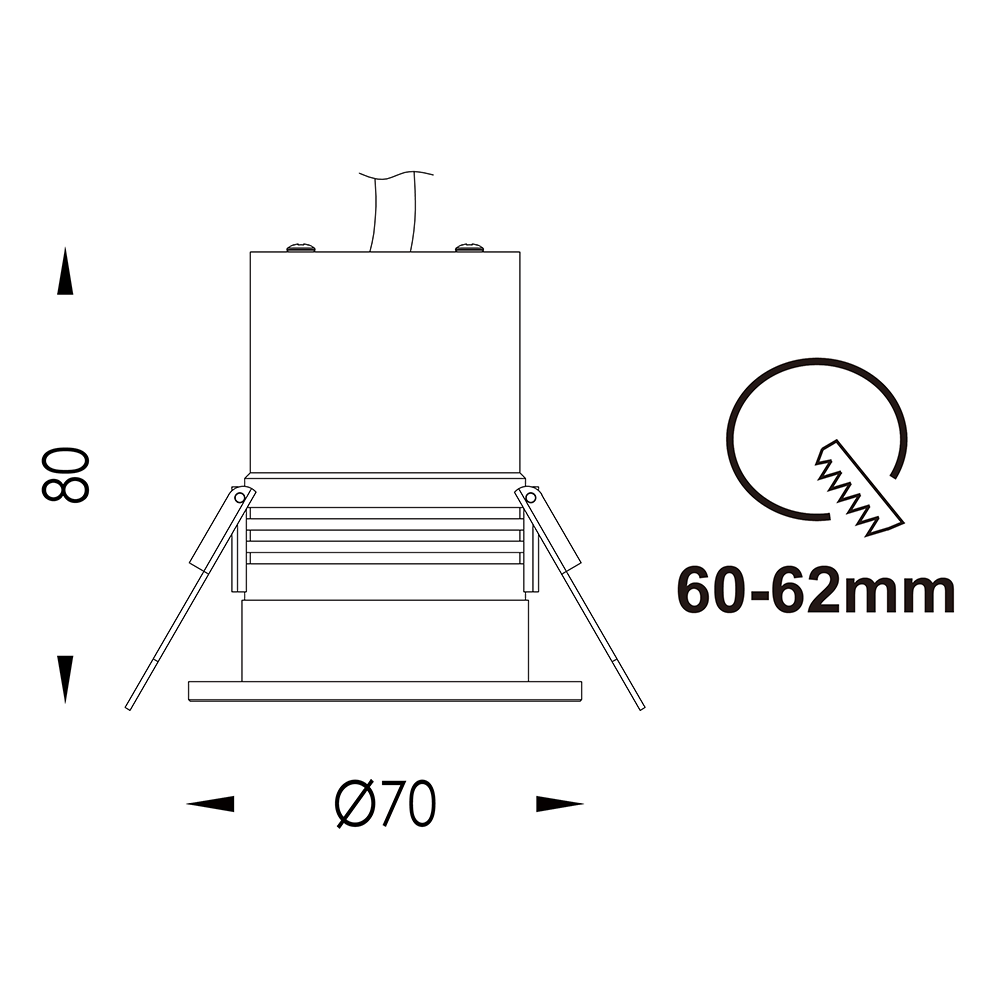

Dimensions | Ø70mm × height per diagram |
Cutout Size | 60-62mm |
Operating Temperature | -20°C to +45°C |
Warranty | 3 years |
Key Product Features
Compact recessed profile: Only 70mm diameter with 60-62mm cutout – fits neatly into ceilings, decks, and concrete slabs.
Multiple light options: Choose from single-color warm white (2700K-3000K), neutral/cool white, or full RGB color-changing versions.
Low voltage safety: Operates on 24VDC for safer installation in outdoor and wet areas.
High-quality components: Tempered glass lens, reliable drivers, and solid aluminum body built for long-term outdoor use.
Easy maintenance: Simple access and durable construction reduce long-term service needs.
Common Applications
Outdoor deck and patio ceilings
Waterfront structures and marine environments
Architectural wall washing and step lighting
Commercial facades, hotels, and retail outdoor areas
Pathway and landscape recessed lighting
High-humidity indoor spaces like bathrooms or pool areas
Why Customers Choose the WB7070R Recessed Light
Installers and project managers like its straightforward cutout size and reliable sealing. The light output is even and focused without glare, making it suitable for both accent and functional lighting. Because it runs cool and uses quality LEDs, you get stable performance year after year even in harsh sun, rain, or freeze-thaw cycles.
Frequently Asked Questions (B2B)
Can the WB7070R be installed directly into concrete or wooden decks?
Yes. It is designed for direct recessed installation into concrete slabs or suitable decking materials. Ensure proper drainage and follow the provided cutout and sealing guidelines.
What kind of driver or power supply is required?
It requires a constant voltage 24VDC driver. We recommend using a quality outdoor-rated driver matched to the total wattage of your installation.
Is this light suitable for saltwater or coastal environments?
The powder-coated aluminum housing and IP67 rating make it well-suited for coastal projects, though regular rinsing with fresh water is good practice in heavy salt spray areas.
Do you offer different color temperatures or smart control options?
Yes. Single-color versions cover 2700K to 6500K, and RGB models are available for dynamic lighting controlled via DMX or compatible systems (see connection diagrams).
What is the expected lifespan and maintenance requirement?
With quality LEDs and solid construction, these lights typically run for 50,000+ hours. Maintenance is minimal – occasional cleaning of the glass surface with mild detergent is usually sufficient.
Ready to specify the WB7070R for your next project? Contact our team for bulk pricing, customization options, and technical support.
