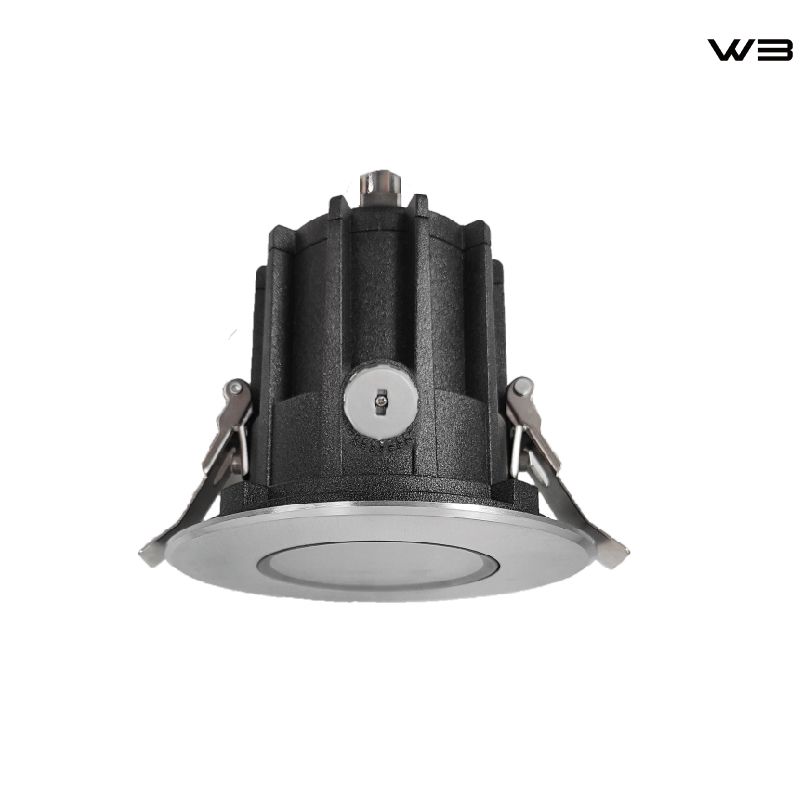

Brightness Adjustable IP67 Waterproof LED Outdoor Ceiling Light - WB7130R
The WB7130R Brightness Adjustable IP67 Waterproof LED Outdoor Ceiling Light provides solid, everyday lighting that stands up to rain, dust, and tough conditions. Designed as a flush-mount ceiling fixture, it combines clean modern styling with practical performance for residential and commercial outdoor areas.
Built with a robust die-cast aluminum body and tempered glass cover, this light maintains consistent output while resisting corrosion and impacts. Its adjustable brightness feature lets you fine-tune illumination to match the space — whether you need full brightness for safety or lower levels for ambient mood lighting.
Product Construction
Housing: High-quality die-cast aluminum with powder-coated finish for excellent heat dissipation and rust resistance.
Diffuser: Tempered glass for durability and even light distribution without yellowing over time.
LED Source: High-efficiency SMD LEDs offering good color rendering and stable performance.
Driver: Built-in constant current driver compatible with standard 220-240V AC supply.
Mounting: Simple surface ceiling installation suitable for concrete slabs and other solid surfaces.

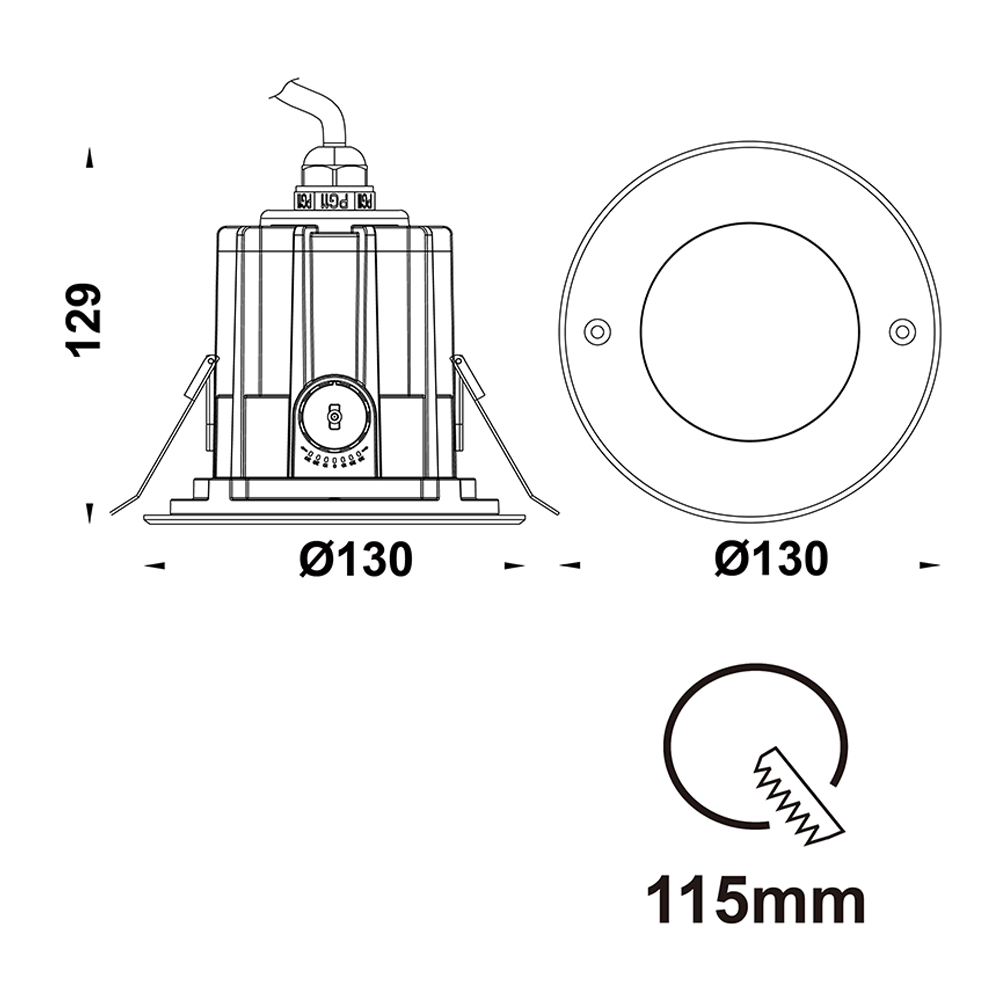

Dimensions: 130mm diameter x 129mm height, with a sleek low-profile look.
Detailed Specifications Table
Parameter | Specification |
Model | WB7130R |
Power Options | 5W / 10W / 15W / 20W / 24W / 36W |
Input Voltage | 220-240V AC |
Beam Angle | 110°-120° |
Protection Rating | IP67 |
Material | Die-cast Aluminum + Tempered Glass |
Color Temperature | 3000K / 4000K / 6000K |
Luminous Flux | Varies by wattage (up to ~4500lm) |
Dimensions | Ø130mm x 129mm |
Lifespan | 50,000 hours |
Warranty | 3 Years |
Certifications | CE, RoHS, and relevant international standards |
Key Advantages
True IP67 rating ensures full protection against water immersion and dust — ideal for exposed outdoor locations.
Multiple wattage and CCT options (including 3000K warm white, 4000K neutral, and 6000K cool white) to suit different preferences.
Long 50,000-hour lifespan reduces maintenance and replacement costs.
Good thermal management keeps the light running cooler and more efficiently.
Clean, modern round design blends well with contemporary architecture.
Easy installation with clear wiring access and included mounting hardware.
Application Scenarios
This ceiling light works well in a wide range of outdoor and semi-outdoor settings:
Residential patios, balconies, and entranceways.
Hotel and resort outdoor corridors and covered walkways.
Commercial building perimeters, loading areas, and parking structures.
Retail storefronts and cafe terraces.
Public facilities like parks, schools, and community centers needing reliable wet-location lighting.
Many property managers and contractors choose it for both new builds and retrofits because of its balance of performance, looks, and straightforward setup.
Installation Guide
Professional installation is recommended for safety and warranty compliance. Key steps include:
Prepare a clean, flat mounting surface.
Connect wiring carefully (live, neutral, and ground as per local codes).
Secure the fixture using the provided mounting bracket.
Test brightness adjustment and ensure proper sealing for IP67 performance.
Always turn off power before installation and allow the light to cool before handling. Full instructions are included with the product.
Frequently Asked Questions
What makes this light suitable for coastal or high-humidity areas?
Its full IP67 rating and powder-coated aluminum housing provide strong corrosion resistance, making it a dependable choice for marine environments and wet climates.
Can I dim or adjust brightness on this model?
Yes, selected configurations support brightness adjustment. Confirm the exact variant when ordering for compatibility with your control system.
How many units can I connect in one circuit?
This depends on your electrical setup and total load. Refer to the connection diagrams in the manual and consult a licensed electrician for large installations.
Do you offer custom color temperatures or OEM branding?
Yes, we work with bulk orders on specific CCT mixes, private labeling, and packaging customization. Contact our sales team for details.
What is the lead time for wholesale orders?
Standard production lead time is 2-4 weeks depending on quantity and configuration. We also maintain stock for popular models to support faster delivery.
This WB7130R series delivers dependable outdoor ceiling lighting that contractors and facility managers trust for long-term performance without constant upkeep. Reach out for samples, datasheets, or project quotes.
