55mm IP67 Recessed LED Ceiling Light with Buckle – WB7055R
This small but tough recessed ceiling light is designed for situations where ordinary fixtures just won’t hold up. Whether you’re lighting up an outdoor deck, a covered walkway, or a modern architectural feature, the WB7055R gives you clean, even illumination without drawing attention to the fitting itself. Its low-profile 55mm cutout makes it easy to integrate into tight ceiling spaces while the IP67 rating means it handles rain, splashes, and dust without missing a beat.
Product Construction

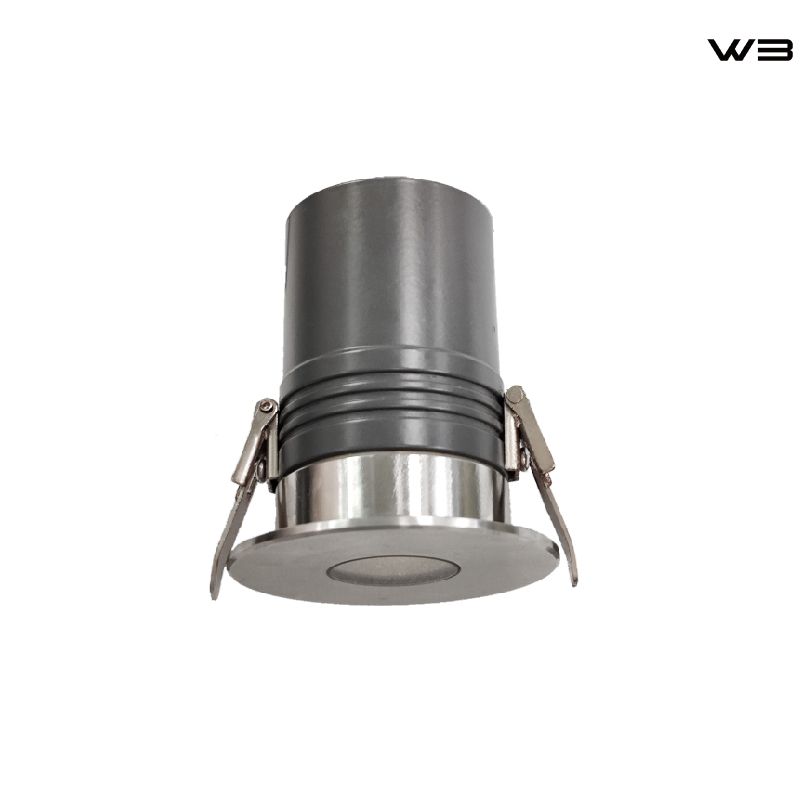

The light features a solid die-cast aluminum housing that helps with heat dissipation and long-term durability. A thick tempered glass front cover protects the LEDs while maintaining good light transmission. The buckle-style spring clips make installation straightforward — simply push it into the cutout and the clips secure it firmly from behind. All wiring connections are well sealed to maintain the IP67 rating. Available in single-color (warm white, cool white) and RGBW versions to suit different project needs.
Detailed Technical Specifications
Item | Specification |
Model | WB7055R |
Cutout Diameter | 55mm |
Overall Dimensions | See technical drawing (Ø65mm x height ~50mm) |
Power Options | 3W–7W depending on configuration |
Input Voltage | 24VDC or 220VAC variants |
LED Type | High-quality SMD LEDs (RGBW, single color options) |
Beam Angle | 24°–60° (model dependent) |
Protection Rating | IP67 |
Housing Material | Die-cast aluminum |
Cover Material | Tempered glass |
Mounting | Recessed with buckle/spring clips |
Operating Temperature | -20°C to +45°C |
Lifespan | 50,000 hours |
Warranty | 3 years |
Certifications | CE, RoHS |
Key Advantages
True IP67 waterproof and dustproof performance for year-round outdoor use
Compact 55mm cutout saves ceiling space and looks discreet
Strong buckle mounting system holds securely even in high-vibration areas
Good thermal management for stable long-term output
Multiple LED configurations including color-changing RGBW options
Clean, modern appearance that blends into contemporary designs
Where It's Used
This light works particularly well for:
Outdoor deck and patio ceilings
Covered walkways and entrance areas
Facade and architectural accent lighting
Hotel and resort outdoor spaces
Commercial building canopies and overhangs
Marine and coastal environments (with proper installation)
Many contractors and lighting designers choose the WB7055R when they need a reliable, low-maintenance recessed solution that can withstand weather exposure without frequent replacements.
Customer FAQs
What makes this light suitable for permanent outdoor deck installations?
The IP67 rating combined with the sealed die-cast aluminum body and tempered glass gives excellent protection against water and dust. The buckle mounting provides a secure hold even when the deck experiences movement or vibration.
Can multiple lights be connected in a single run?
Yes. Both 24VDC and 220VAC versions support daisy-chain connections. Please check the connection diagrams for maximum recommended quantities per circuit to avoid voltage drop.
Do you offer custom color temperatures or DMX versions for larger projects?
We provide RGBW and single-color options. For large-scale projects requiring DMX control, please contact our sales team to discuss custom configurations and minimum order quantities.
How do I maintain the IP67 rating after installation?
Ensure all cable glands and connectors are properly tightened during installation. Avoid using harsh chemicals or high-pressure washers directly on the fixture. Periodic visual checks of the seals are recommended.
What support do you offer for commercial projects?
We provide detailed technical drawings, IES files, installation guidance, and project-level pricing. Our team can also assist with lighting layout recommendations and sample orders for approval.
