Zoomable COB LED Cylindrical Landscape Spot Light with Gobo Projection - Series TF (WB3060R)
This versatile zoomable landscape light combines adjustable beam control with the ability to project patterns. You can fine-tune the beam spread on site and switch between regular spotlighting and decorative gobo effects, making it a useful tool for both functional and creative outdoor lighting designs.
Product Features & Construction

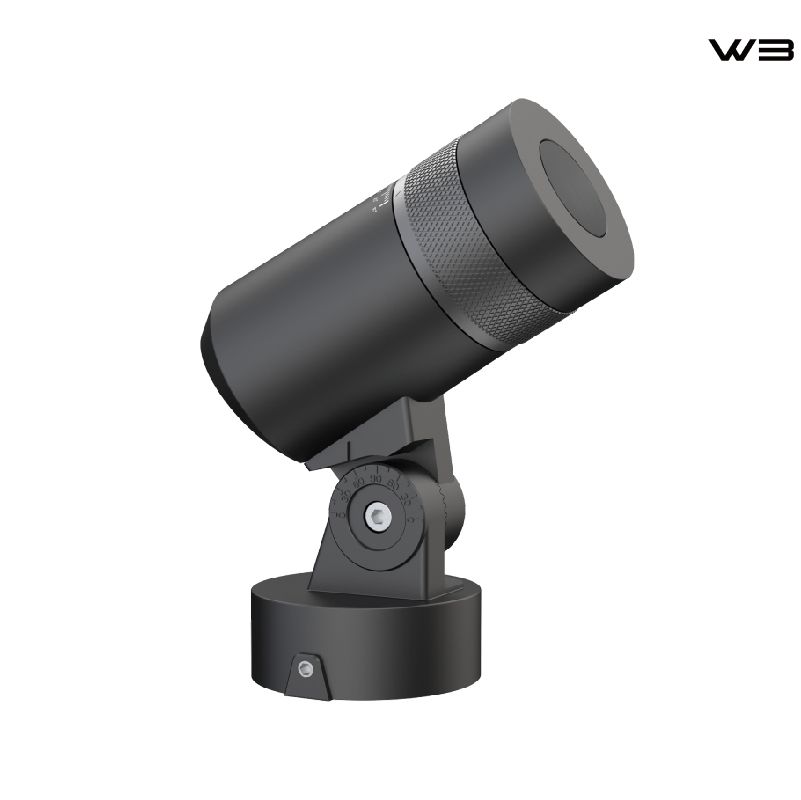

The fixture features a solid die-cast aluminum cylindrical body with a textured zoom ring for easy manual adjustment. It uses efficient COB LEDs and supports interchangeable gobo patterns for projecting leaves, stars, logos, or other designs. The adjustable mounting knuckle allows smooth tilting, while the tempered glass protects the optics. Extension rod compatibility adds more installation options for ground or elevated mounting.
Technical Specifications
Item | Specification |
Model | Series TF (WB3060R) |
Power | 6W / 12W / 15W COB LED |
Input Voltage | 220-240VAC / 24VDC options |
Beam Angle | Physical zoomable (spot to flood) |
Projection | Gobo pattern projection |
Material | Die-cast aluminum + tempered glass |
Adjustment | 180° tilt, 360° rotation |
Protection Rating | IP65 |

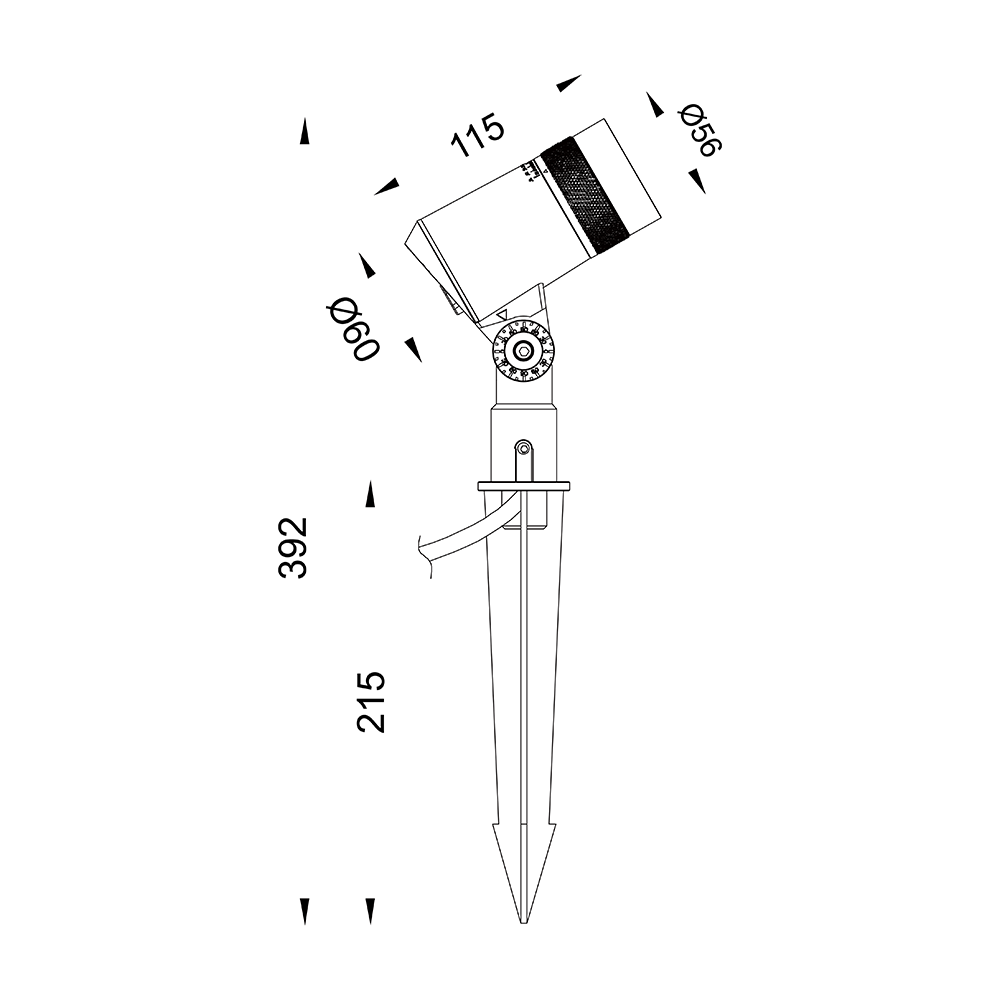

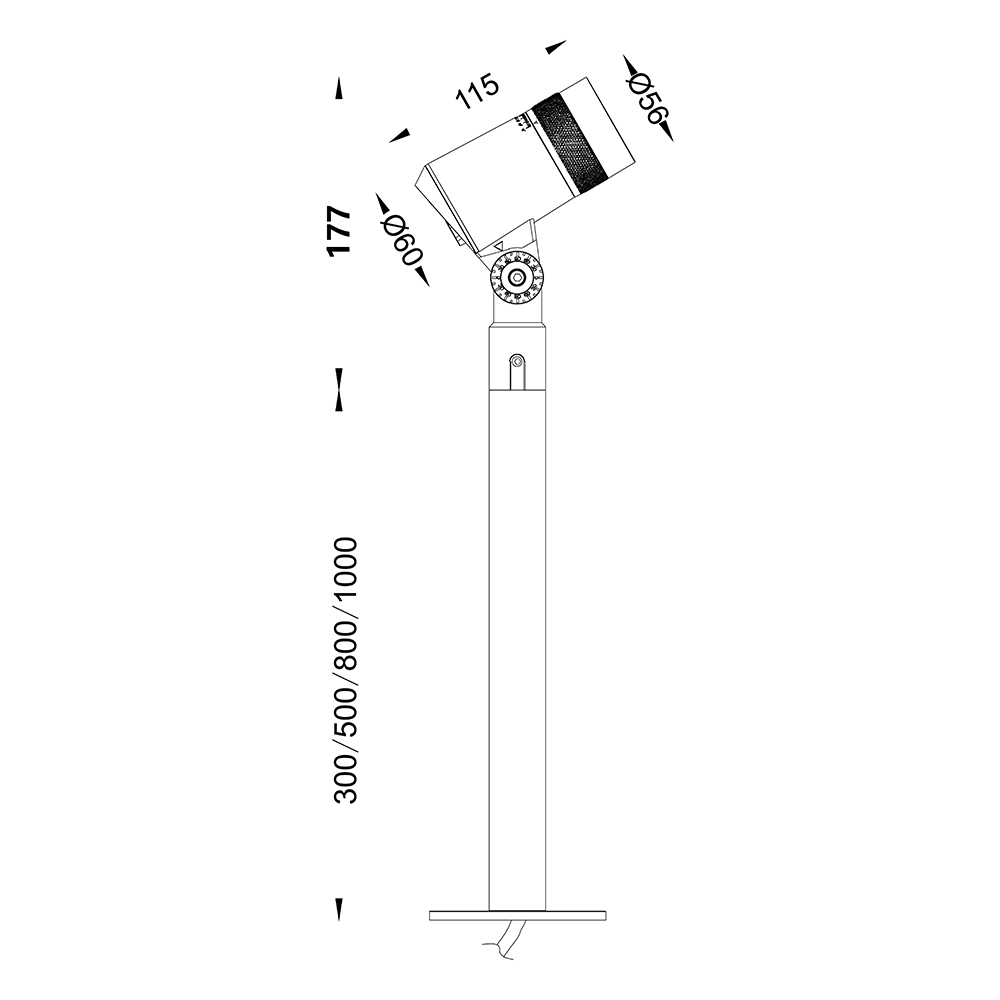

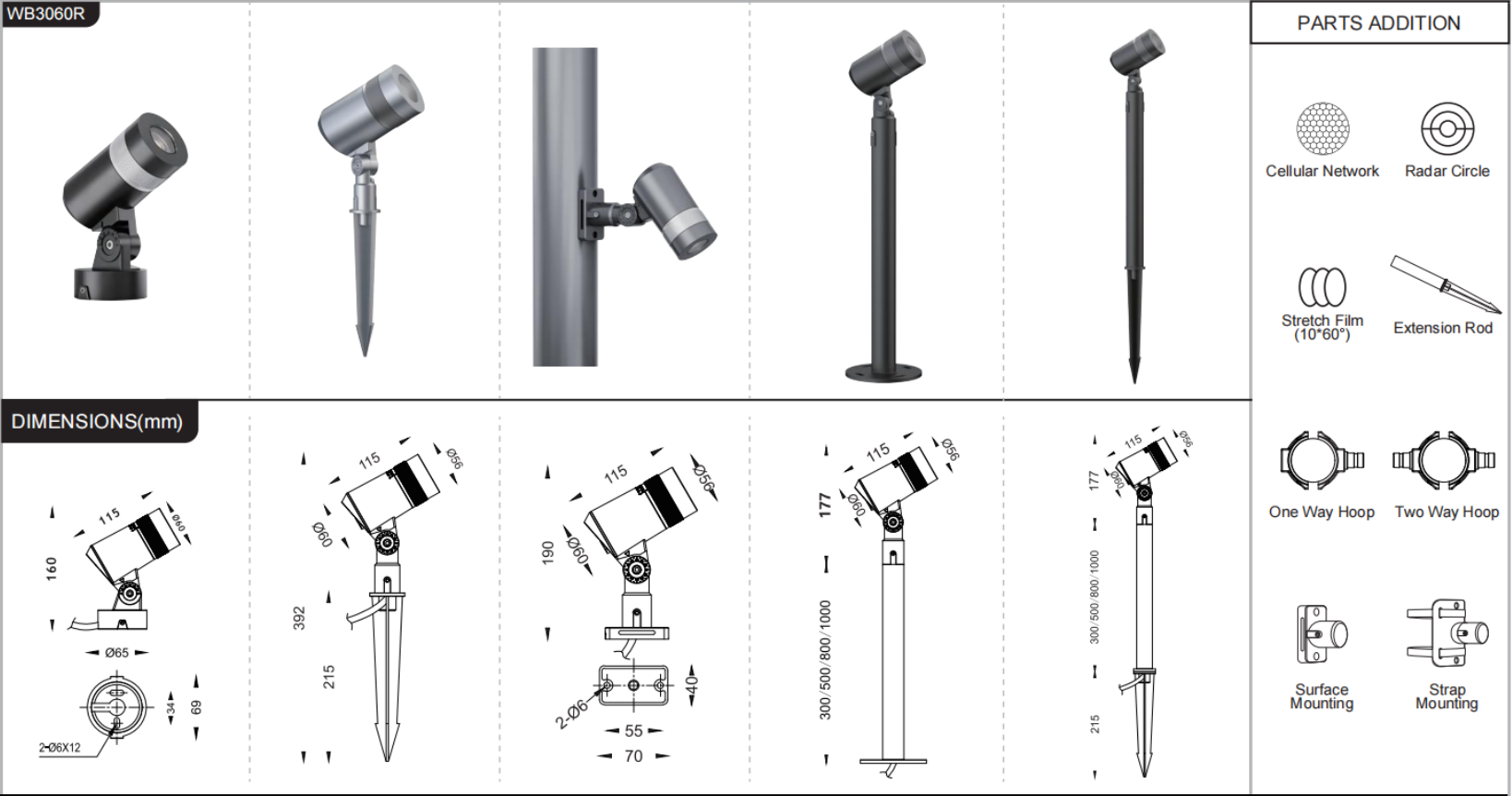

Mounting Options | Surface, spike, extension rod compatible |
Warranty | 3 Years |
Why This Landscape Spot Light Stands Out
Physical Zoom Control: Adjust the beam angle directly on the light to switch between narrow spot and wider flood as needed.
Gobo Pattern Projection: Project preset or custom light curtain patterns to create attractive visual effects in gardens and outdoor areas.
Flexible Installation: Works with surface mounts, ground spikes, and extension rods for different project requirements.
Durable Outdoor Build: IP65-rated construction handles weather exposure well and maintains performance over time.
Good Light Quality: COB LEDs deliver strong output with natural colors that suit landscape applications.
Common Applications
This light is commonly used for:
Tree and shrub uplighting with optional pattern effects
Wall washing combined with decorative projections
Pathway and feature accent lighting
Garden and villa landscape projects
Commercial outdoor spaces needing both illumination and atmosphere
Contractors often use it when one project calls for both practical lighting and creative touches.
FAQ
Q1: Does this model support both zoom adjustment and gobo projection at the same time?
A: Yes. You can adjust the beam angle and use gobo patterns simultaneously, giving you full control over both the size and shape of the projected light.
Q2: What is the MOQ for this series and can we mix wattages and patterns?
A: The standard MOQ is 50 pieces per model. We support mixing different wattages and color temperatures. Custom gobo patterns are available with reasonable order quantities.
Q3: What mounting accessories are available for this zoomable gobo light?
A: The fixture is compatible with surface mounting brackets, ground spikes, and extension rods of various lengths. These accessories are sold separately to match different site conditions.
Q4: Are DMX versions available for larger synchronized installations?
A: Yes, we offer DMX512-compatible versions for projects that need centralized control, pattern rotation, or synchronized effects across multiple lights. Please share your project details for the best recommendation.
Q5: What warranty and support do you provide for B2B customers?
A: We provide a 3-year warranty on manufacturing defects. B2B partners receive priority technical support, fast response times, spare parts availability, and access to product training materials.
